Instek GBM-02 - 4 Wire Test Lead

Name: Instek GBM-02 - 4 Wire Test Lead
Brand: Instek
SKU: InstekGBM-02
Price: 252.00 USD
Availability: InStock

0 reviews | Model: Instek GBM-02

Compare

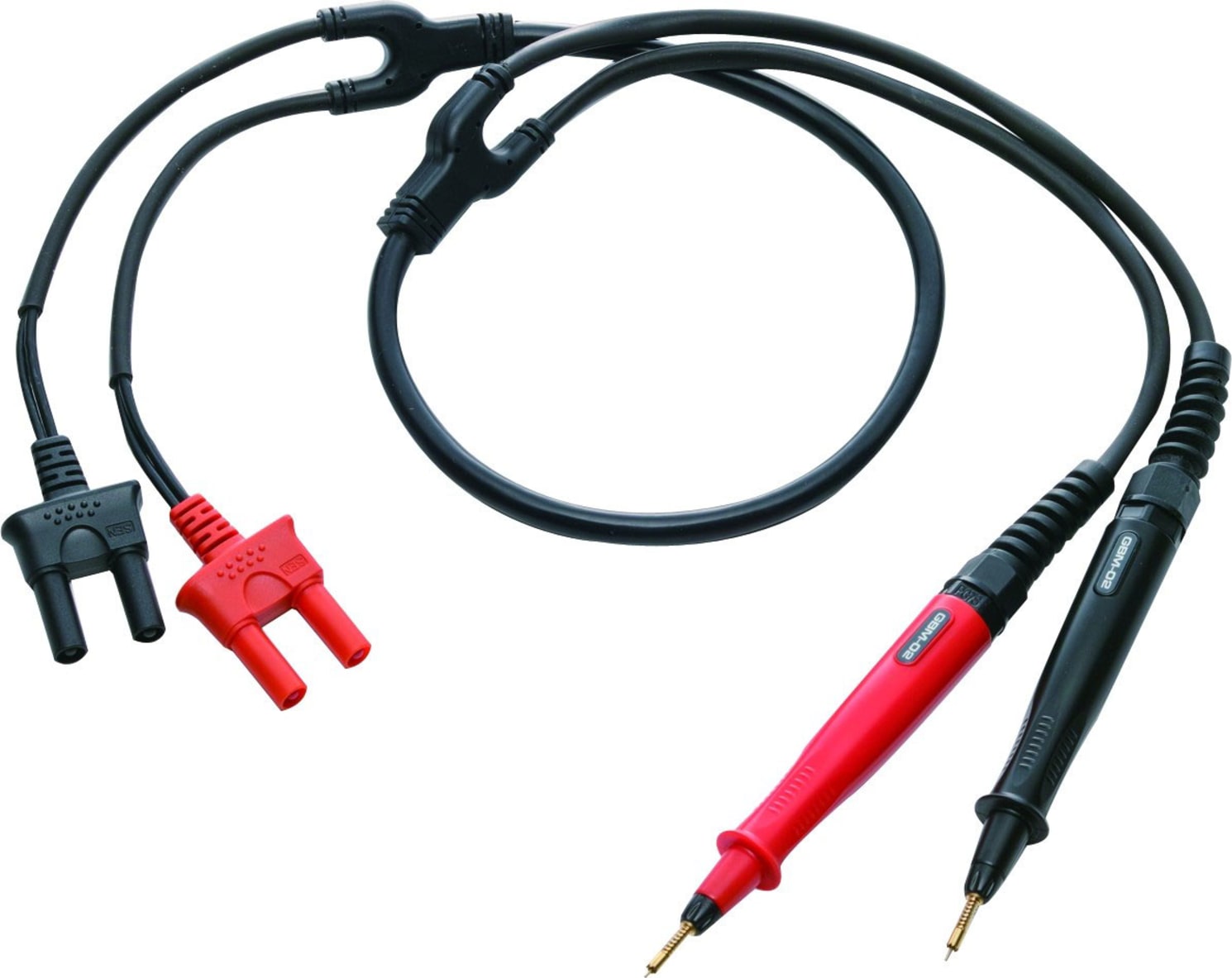

4 Wire(single pin) test probe, 80V(max.), approx. 1100mm

View Product Details

List Price: $280.00

Your Price: $252.00

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options



Product	Instek GBM-02 4 Wire(single pin) test probe, 80V(max.), approx. 1100mm	Instek GBM-01 4 Wire (Kelvin Clip) test lead, 90V(max.), approx:1100mm	Instek GBM-03 4 Wire(twin pin) test probe, 300V(max.), approx. 1400mm
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare

Recommended for you

Choose a Category

(0)

In Stock!

Add to Cart

4 Wire (single pin) test probe, 90V (max.), approx. 1100mm

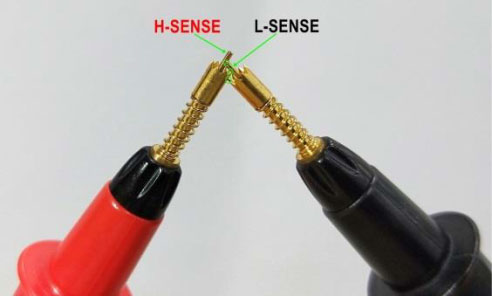

Offsetting of test leads

GBM-02 TEST LEAD (Single)

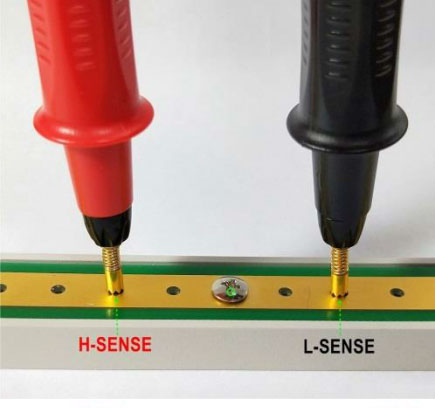

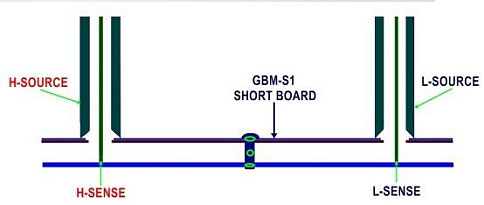

Find the short-circuit screw in the middle of the short-circuit board (GBM-S1) as center. Find two holes on left and right of the center which has the same distance between the two ends of the battery under test. Then insert the SENSE pins into the holes and press down the probes to let the SOURCE touch the copper foil on the PCB board to complete the 3-point connection. When performing offsetting, it is necessary to keep the probe and the short circuit board in good contact condition to avoid shaking and affect the measurement results.
