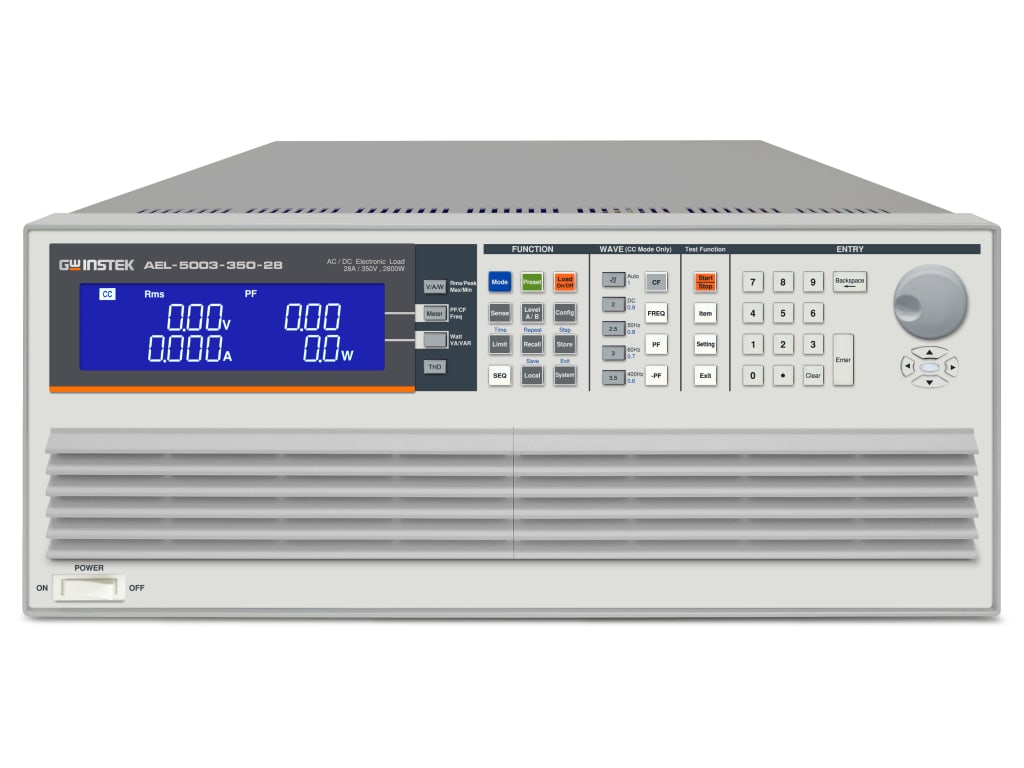

Instek AEL-5003-350-28 - AC/DC High Power Electronic Load (2800/5600W; 50~350Vrms/500Vdc)

0 reviews | Model: Instek AEL-5003-350-28


AC/DC High Power Electronic Load (2800/5600W; 50~350Vrms/500Vdc)

  • Turbo off: 2800W; 28Arms / 84Apeak; 50~350Vrms / 500Vdc
  • Turbo On: 5600W; 56Arms / 84Apeak; 50~350Vrms / 500Vdc
  • Turbo Mode for 2 Times the Current and Power of Electronic Load within 1 Second
  • CC, Linear CC, CR, CV, CP and AC Rectifier Load Mode
  • Frequency Range : DC, 40~440Hz
  • Eight Units Connected in Parallel for Single-phase and Three-phase
  • Three-phase Delta or Wye Load Connection Can be Synchronized; Control by One Master Unit
  • Loading and Unloading Angle Control; 0~359 Degree is Settable
  • Positive Half-cycle or Negative Half-cycle Loading
  • Supports SCR/TRIAC Current Phase Modulation Waveforms, 90 Degree Trailing Edge and Leading Edge
View Product Details
In Stock:
  • Free shipping over $99 - Code: FREESHIP
  • View Payment Options
Product Expert

Have a question? Ask an expert.


Items in This Series

Instek AEL-5003-350-28Instek AEL-5002-350-18.75Instek AEL-5004-350-37.5Instek AEL-5006-350-56Instek AEL-5008-350-75Instek AEL-5012-350-112.5Instek AEL-5015-350-112.5Instek AEL-5019-350-112.5Instek AEL-5023-350-112.5Instek AEL-5002-425-18.75Instek AEL-5003-425-28Instek AEL-5004-425-37.5Instek AEL-5006-425-56Instek AEL-5008-425-75Instek AEL-5012-425-112.5Instek AEL-5015-425-112.5Instek AEL-5019-425-112.5Instek AEL-5023-425-112.5Instek AEL-5003-480-18.75Instek AEL-5004-480-28
ProductInstek AEL-5003-350-28 AC/DC High Power Electronic Load (2800/5600W; 50~350Vrms/500Vdc)Instek AEL-5002-350-18.75 AC/DC Electronic Load (1875/3750W; 50~350Vrms/500Vdc)Instek AEL-5004-350-37.5 AC/DC High Power Electronic Load (3750/7500W; 50~350Vrms/500Vdc)Instek AEL-5006-350-56 AC/DC High Power Electronic Load (5600/11200W; 50~350Vrms/500Vdc)Instek AEL-5008-350-75 AC/DC High Power Electronic Load (7500/15000W; 50~350Vrms/500Vdc)Instek AEL-5012-350-112.5 AC/DC High Power Electronic Load (11250/22500W; 50~350Vrms/500Vd ...Instek AEL-5015-350-112.5 AC/DC High Power Electronic Load (15000/30000W; 50~350Vrms/500Vd ...Instek AEL-5019-350-112.5 AC/DC High Power Electronic Load (18750/37500W; 50~350Vrms/500Vd ...Instek AEL-5023-350-112.5 AC/DC High Power Electronic Load (22500/45000W; 50~350Vrms/500Vd ...Instek AEL-5002-425-18.75 AC/DC High Power Electronic Load (1875/3750W; 50~425Vrms/600Vdc)Instek AEL-5003-425-28 AC/DC High Power Electronic Load (2800/5600W; 50~425Vrms/600Vdc)Instek AEL-5004-425-37.5 AC/DC High Power Electronic Load (3750/7500W; 50~425Vrms/600Vdc)Instek AEL-5006-425-56 AC/DC High Power Electronic Load (5600/11200W; 50~425Vrms/600Vdc)Instek AEL-5008-425-75 AC/DC High Power Electronic Load (7500/15000W; 50~425Vrms/600Vdc)Instek AEL-5012-425-112.5 AC/DC High Power Electronic Load (11250/22500W; 50~425Vrms/600Vd ...Instek AEL-5015-425-112.5 AC/DC High Power Electronic Load (15000/30000W; 50~425Vrms/600Vd ...Instek AEL-5019-425-112.5 AC/DC High Power Electronic Load (18750/37500W; 50~425Vrms/600Vd ...Instek AEL-5023-425-112.5 AC/DC High Power Electronic Load (22500/45000W; 50~425Vrms/600Vd ...Instek AEL-5003-480-18.75 AC/DC High Power Electronic Load (2800/5600W; 50~480Vrms/700Vdc)Instek AEL-5004-480-28 AC/DC High Power Electronic Load (3750/7500W; 50~480Vrms/700Vdc)
Price
In Stock
Watts2.8 kW (2800 Watts)1.875 kW (1875 Watts)3.75 kW (3750 Watts)5.6 kW (5600 Watts)7.5 kW (7500 Watts)11.25 kW (11250 Watts)15 kW (15000 Watts)18.75 kW (18750 Watts)22.5 kW (22500 Watts)1.875 kW (1875 Watts)2.8 kW (2800 Watts)3.75 kW (3750 Watts)5.6 kW (5600 Watts)7.5 kW (7500 Watts)11.25 kW (11250 Watts)15 kW (15000 Watts)18.75 kW (18750 Watts)22.5 kW (22500 Watts)2.8 kW (2800 Watts)3.75 kW (3750 Watts)
Max Current28 A18.75 A37.5 A56 A75 A112.5 A112.5 A112.5 A112.5 A18.75 A28 A37.5 A56 A75 A112.5 A112.5 A112.5 A112.5 A18.75 A28 A
Max Voltage350 V350 V350 V350 V350 V350 V350 V350 V350 V425 V425 V425 V425 V425 V425 V425 V425 V425 V480 V480 V
