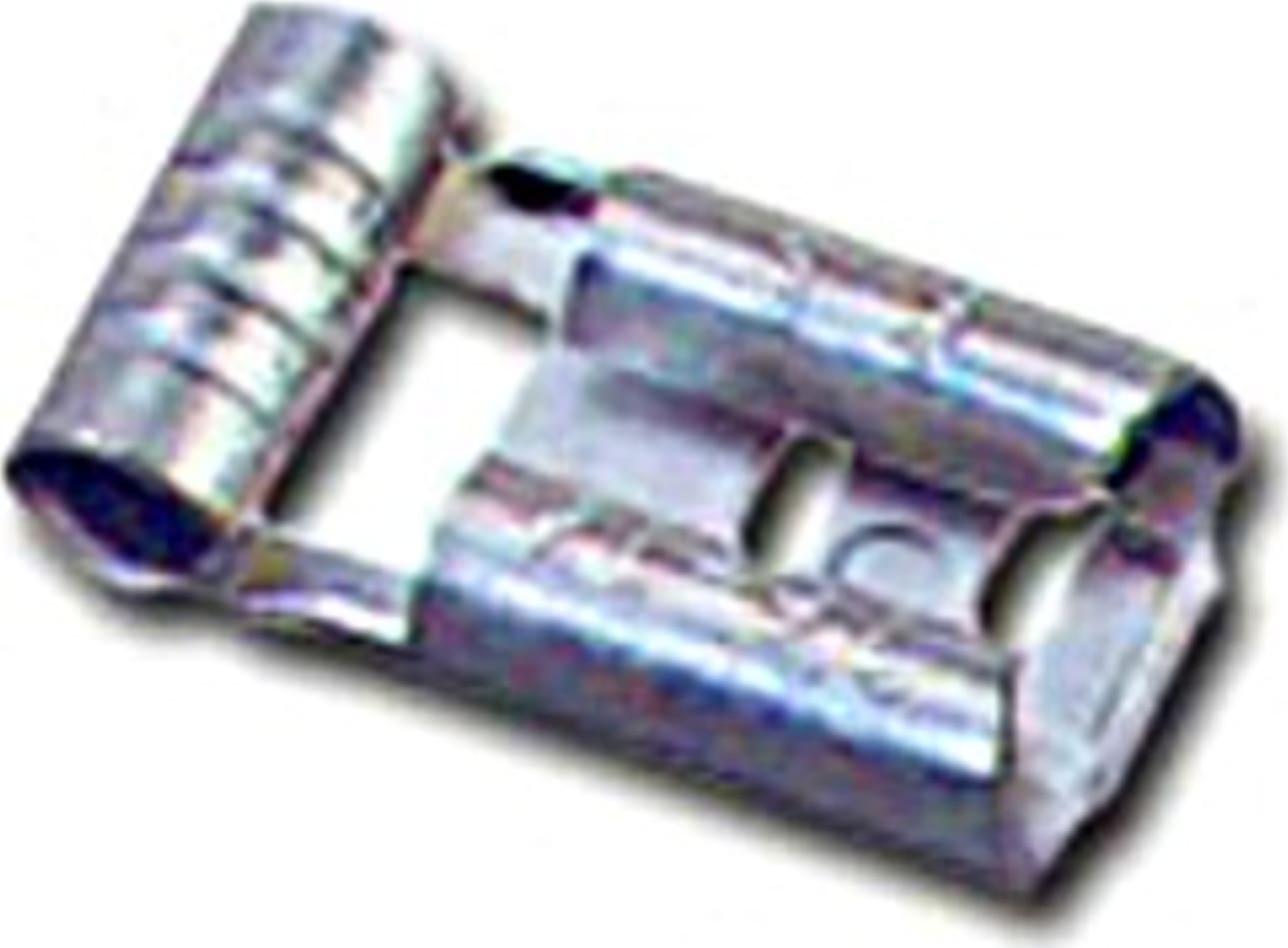

Ideal 83-9401 Non-Insulated Female Flag Disconnect, Box of 25

Name: Ideal 83-9401 Non-Insulated Female Flag Disconnect, Box of 25
Brand: Ideal
SKU: Ideal83-9401
Price: 7.32 USD
Availability: InStock

0 reviews | Catalog: 83-9401 | UPC: 783250495238 | Model: Ideal 83-9401

Compare

Non-Insul Feml Flag Disconn 16-14AWG, .250 inch, 25/Box

Butted seam-construction prevents splitting under maximum pressure
Internal barely serrations grip wires tightly to resist pull-out and reduce electrical resistance
Tin-plated brass construction for corrosion resistance
Shouldered barrel insulation quickly positions terminal for proper crimping
Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support
Wire range stamped on terminal for easy identification

View Product Details

List Price: $10.12

Your Price: $7.32

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Recommended for you

Non-Insulated Female Flag Disconnect, Box of 25

Ideal Non-insulated disconnect terminal features tin-plated brass construction for enhanced corrosion resistance. Female disconnect terminal can accommodate a conductor of size 16 - 14 AWG for superior conductivity. Wire range stamped on metal surface for easy interpretation. Funnel inetry on disconnect terminal quickly guides wires into crimp barrel and eliminates turned-back strands. It has a temperature rating of 105 deg C. Disconnect terminal is RoHS compliant.

Butted seam-construction prevents splitting under maximum pressure; Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance. Tin-plated brass construction for corrosion resistance. Wire range stampted on metal surface for easy interpretation. Funnel inetry on disconnect terminal quickly guides wires into crimp barrel and eliminates turned-back strands.

Barrel Type	Butted Seam, Serrated
Brand Name	IdealAlternate Part Number 839401
Barrel Type	Butted Seam, Serrated
Brand Name	Ideal
Catalog Description	IDEAL; Disconnect Terminal; Non-Insulated Flag; Wire Size: 16 - 14 AWG; Voltage Rating: 300 V; Connection: Female; Tab Size: 0.250 IN X 032 IN; Temperature Rating: 105 DEG C
Catalog Number	83-9401
Commodity Code	64110
Connection	Female
Country of Origin	TWN
EAN/UCC-13	0783250495238
Finish	Tin-Plated
GTIN	00783250495238
Gross Weight	0.100
Height	1.5000
Insulation	Non-Insulated
Insulation	Type Non Insulated
Invoice Description English	FLAG FEM.DUSC. 16-14AWG (300V)
Item	Female Flag Disconnect
Length	3.7500
Material	Brass
Maximum Conductor Size	14 Awg
Mfr/Vendor	Ideal
Minimum Conductor Size	16 Awg
Order Minimum	250
Overall Length	0.551
ShortDescription Stripped	Ideal-83-9401-Non-Insulated-Female-Flag-Disconnect
Special Features	Tab Size: 0.250 IN X 032 IN; Temperature Rating: 105 DEG C
Standard	RoHS
Standards	RoHS Compliant
Tab Size	0.250 Inch x 0.032 Inch
Temperature Rating	105
Tongue Size	0.551 Inch Length
Type	Non-Insulated
UPC	783250495238
Voltage Rating	300
Width	2.5000
Wire Size	16-14
