Ideal 61-357 - 1000V AC/DC Multimeter with Bar Graph

Name: Ideal 61-357 - 1000V AC/DC Multimeter with Bar Graph
Brand: Ideal
SKU: Ideal61-357
Price: 137.07 USD
Availability: InStock

0 reviews | Catalog: 61-357 | UPC: 783250810536 | Model: Ideal 61-357

Ideal 61-357 - 1000V AC/DC Multimeter w/ Bar Graph

Images (8)

Compare

1000V AC/DC Multimeter with Bar Graph

UL Certified CAT IV 600V CAT III 1000V AC/DC 10A AC/DC TRMS Auto Ranging Digital Multimeter with Analog Bar graph on Display
Provides True RMS AC voltage and current for accurate measurements on non-linear signals
Measures AC/DC Current, AC/DC Voltage, Lo Z, frequency, resistance, continuity, capacitance, diodes, temperature and senses AC voltage
Built-in probe tip holder and hanging strap clip allows safer, easier measurement
Large easy to read l backlit display, allows for safer/faster work in poorly lit environments
Industrial design of removeable rubber boot enhances gripping and allows the meter to withstand a 6.6-foot (2 m) drop
Includes soft case, test leads, batteries, and K-Type Thermocouple
Combined LCD Digital readout and analog bar graph display

View Product Details

List Price: $145.90

Your Price: $137.07

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Items in This Series



Product	Ideal 61-357 1000V AC/DC Multimeter with Bar Graph	Ideal 61-337 600V Auto Range Multimeter	Ideal 61-347 AC/DC 1000V TRMS Multimeter, CAT III, CAT IV
Price
In Stock
Style	Hand-Held	Hand-Held	Hand-Held
Measures AC V	Yes	Yes	Yes
Measures DC V	Yes	Yes	Yes
Compare	Add to compare	Add to compare	Add to compare

Recommended for you

Ideal 61-357

UL Certified CAT IV 600V CAT III 1000V AC/DC 10A AC/DC TRMS Auto Ranging Digital Multimeter with Analog Bar graph on Display
Provides True RMS AC voltage and current for accurate measurements on non-linear signals
Measures AC/DC Current, AC/DC Voltage, Lo Z, frequency, resistance, continuity, capacitance, diodes, temperature and senses AC voltage
Built-in probe tip holder and hanging strap clip allows safer, easier measurement
Large easy to read l backlit display, allows for safer/faster work in poorly lit environments

1000V AC/DC Multimeter with Bar Graph

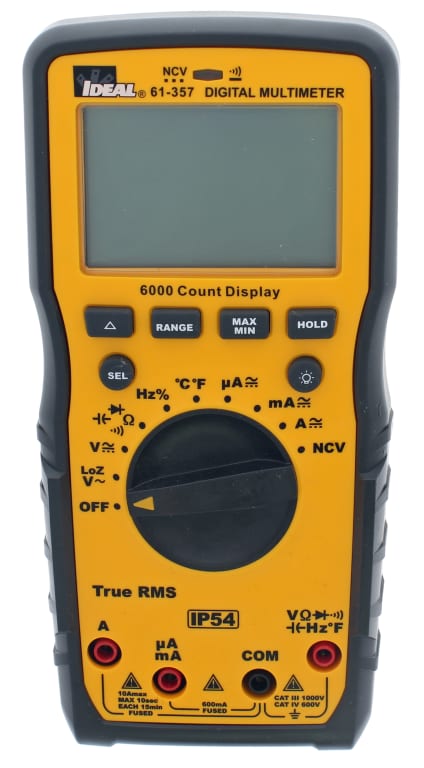

The IDEAL 61-357 Digital Multi Meter is a CAT IV 600 CAT III 1000V rated auto ranging true root mean square (TRMS) digital multi meter that measures up to 10 Amps AC and DC current via the test leads in series with the load. It measures up to 1000V AC and DC, LoZ (low impedance) AC V, frequency, resistance, continuity, capacitance, and diodes via test-leads (included) and measures temperature (⁰F/⁰C) via a K-Type thermocouple (included). It's capable of detecting the presence of voltage between 40V to 600V via a non-contact sensor in the top center of the meter. It's display features a digital readout and also an analog bar graph representation and can be backlit. The unit uses an illuminated red LED in the center of the meter and emits audible tones to notify when voltage is above 30 volts, when continuity is detected and when the NCV senses voltage within its set range.

The rubber boot has two probe storage points has built-in probe tip holders to allow measurements while holding the meter in one hand and the second lead in the other hand. The meter has a hanging strap mount (compatible with all other IDEAL meters with this feature) that allows for a hanging strap (sold separately) to be attached to the meter so it can be hung from a nail, screw or magnetic surface. An industrial grade over molding enhances grip and drop protection. This meter features HOLD, MIN/MAX, Relative, Range, and selectable Auto Power Off functions. The meter comes with 3 1.5V AAA Batteries and an easy open, fully accessible storage pouch with a belt loop that allows for meter, probes and thermocouple storage.

Ideal 61-357 Specifications
CAT Rating (Safety)	CAT IV 600V \| CAT III 1000V
Listing	cULus, CE, RCM
Drop Protection	6.6 ft. (2m)
Ingress Protection	IP52
AC Voltage (Volts)	1,000V
DC Voltage (Volts)	1,000V
AC Current (Amps)	10A
DC Current (Amps)	10A
Ohms (Resistance)	60MΩ
AC Millivolts	6,000
DC Millivolts	6,000
AC Milliamps	6,000
DC Milliamps	6,000
AC Microamps	6,000
DC Microamps	6,000
True RMS	✓
High Voltage Alarm	ACV/DCV \| >30V
Audible Continuity	✓
Visual Continuity	✓
Backlight	✓
Temperature	-40 ~ 1832°F \| -40 ~ 1,000°C
Low Impedance (LoZ)	✓
NCV	✓
Auto Ranging	✓
Range Hold	✓
Data Hold	✓
Diode Test	✓
Capacitance Test	6,000 µF
Frequency / Duty Cycle	10Hz - 9.99 KHz
Max / Min	✓
Magnetic Strap Mount	✓
Test Probe Holder	✓
Auto-Power Off	✓
APO Disable	✓
Low Battery Indication	✓
Battery Type (Included)	3 x 1.5V AAA
LCD Display Count	6,000
Lead Warning	✓
Fuse Notification	✓
Bar Graph	✓
Battery Test	-
Warranty	2-Year*
Accessories
Leads, Case & Temp. Sensor	Included
Electrical Specifications
Function	Range 61-347 & 61-357	Resolution	Accuracy
Function	Range 61-347 & 61-357	Resolution	±(a%+b)
AC Voltage (V) ARMS (61-357 has LoZ)	600mV	0.1mV	±(1.5%+8)
	6V	0.001V	±(1.3%+5)
	60.00V	0.01V
	600.0V	0.1V
	1000V	1.0V	±1.5%+5)
AC Current (A) TRMS	600.0μA	0.1μA	±(2%+5)
	6,000μA	1μA
	60.00mA	0.01mA
	600.0mA	0.1mA
	6.000A	0.001A	±(2.5%+5)
	10.00A	0.01A	±(2.5%+5)
DC Voltage (V)	600mV	0.1mV	±(1.5%+8)
	6V	0.001V	±(1.3%+5)
	60.00V	0.01V
	600.0V	0.1V
	1,000.0V	1V	±(1.5%+5)
DC Current (A)	600.0μA	0.1μA	±(2%+5)
	6,000μA	1μA
	60.00mA	0.01mA
	600.0mA	0.1mA
	6.000A	0.001A	±(2.5%+5)
	10.00A	0.01A	±(2.5%+5)
Resistance (Ω)	600.0Ω	0.1Ω	±(1.5%+5)
	6.000kΩ	0.001kΩ
	60.00kΩ	0.01kΩ
	600.0kΩ	0.1kΩ	±(2%+5)
	6.000MΩ	0.001MΩ
	60.00MΩ	0.01MΩ
Capacitance	600.0nF	0.1nF	±(5%+15)
	6.000uF	0.001uF
	60.00uF	0.01uF
	600.0uF	0.1uF
	6,000uF	1uF	±10%
Frequency Hz	9.999Hz ~ 9.999KHz	0.001Hz ~ 0.1KHz	±(0.5%+5)
Duty Cycle %	0.1%~99.9%	0.1%
Temp. °F	-40~1,832°F	1°F	±(2.0%+7)@-40~32°F ±(2.0%+6)@33~1,832°F
Temp. °C	-40~1,000°C	1°C	±(2.0%+4)@-40~0°C ±(2.0%+3)@1~1,000°C
Continuity		0.1 Ω	≤10Ω : Buzzer beeps and red indicator LED illuminates continuously
Continuity		0.1 Ω	≥70Ω : No buzzer beep
Diode test		0.001V	Silicon PN joint with forward voltage about 0.5V to 0.8V
NCV	40-600V	≥40V/(50~60Hz), with direct wire contact, red indicator LED flashes at a frequency of 3Hz, and the buzzer beeps at a frequency of 3Hz simultaneously
1. Overload Protection: 1,000VRMS MAX Fuses FF 0.6A 1,000V and F 11 A 1,000V.
2. Accuracy a is % of reading and b is LSD (Least Significant Digit).
Environmental Specifications
Operating Temperature:	32ºF to 86ºF (0ºC to 30ºC) (80%RH) 86ºF to 140ºF (30ºC to 40ºC) (75%RH) 104ºF to 122ºF (40ºC to 50ºC) (45%RH)
Operating Altitude:	< 6,500 ft (< 2,000 m)
Storage Temperature:	14ºF to 140ºF (-10ºC to 60ºC) (<80%RH)
Intended for indoor use
Mechanical Specifications
Dimensions (L x W x H)	7.83 in. x 3.74 in. x 2.24 in. (199 mm. x 95 mm. x 57 mm.)
Weight	1.147 LBS (0.52 KG)
Display	LCD
Display Count	6,000
Power Source	3 x 1.5V AAA
Battery Life	100 Hours Typical
Safety	Complies with the following: UL 61010-1, 3rd Edition, May 11, 2012, Revised November 21 2018, CAN/ CSA-C22.2 No. 61010-1-12, 3rd Edition, Amendment 1:2018, Revision dated November 21 2018, IEC 61010-2-033: 2019 Overvoltage CAT III 600V Any voltages exceeding the defined maximum voltage measurement categories described above are outside the normal use of the equipment and protection cannot be guaranteed. Pollution Degree Class 2
EMC/EMI	CISPR 22 3rd Edition. Class B Limits. EN 55032 CISPR 32 CISPR 11 FCC 15. 107 with reference to Section 15.109 (g). ICES-003 EN 61326-2-2 Sec 6.4.2.101
USA(FCC)	47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.
Maintenance and Service
Equipment Maintenance and Service Meter Inspection	Do not use if meter appears damaged. Visually inspect the meter to ensure the case is not cracked.
Test Lead Inspection	Inspect and replace test leads if insulation is damaged, metal is exposed, or probes are cracked. Pay particular attention to the insulation surrounding the connectors.
Thermocouple Inspection	Inspect the thermocouple for signs of wear or breakage. Replace if necessary to guarantee accuracy of readings.

Tech Specs

Multimeters Template
Style	Hand-Held
Measures AC V	Yes
Measures DC V	Yes
Measures AC A	Yes
Measures DC A	Yes
True RMS	Yes
Maximum Voltage AC	1000 V
Resolution AC Volts	1 V (1000 mV)
Maximum Voltage DC	1000 V
Resolution DC Volts	1 mV
Maximum Current AC	10 A
Resolution AC Current	0.01 A (10 mA)
Maximum Current DC	10 A
Resolution DC Current	0.01 A (10 mA)
Counts	6000 .
Backlight	Yes
Manual/Autoranging	Both
Decibels	No
Resistance	Yes
Frequency	Yes
Capacitance	Yes
Temperature	Yes
Diode Testing	Yes
CAT Rating	IV
CAT Voltage	1,000 V
Intrinsically Safe	No
Peak Hold	No
Overload Protector	Yes
Kelvin 4-Wire Measurement Capability	No
Wireless Display	No
Data Hold	Yes
Low-Pass Filter	No
Duty Cycle %	0.1%~99.9%
Test Equipment General Attributes
Warranty	2 YEARS
Warranty Details	This tester is warranted to the original purchaser against defects in material and workmanship for a period of two (2) years from date of purchase.
Safety Approval	CSA, UL
IP Rating	IP52
Product Weight	1.147 LBS
Product Height	2.24 IN
Product Length	3.74 IN
Product Width	7.83 IN
Shipping Weight	1.40 LBS
Data Logging	No
HTS/Schedule B Number	9030.32.0000
ECCN Number	3A992
Calibration Included	None
Battery Type	AAA
