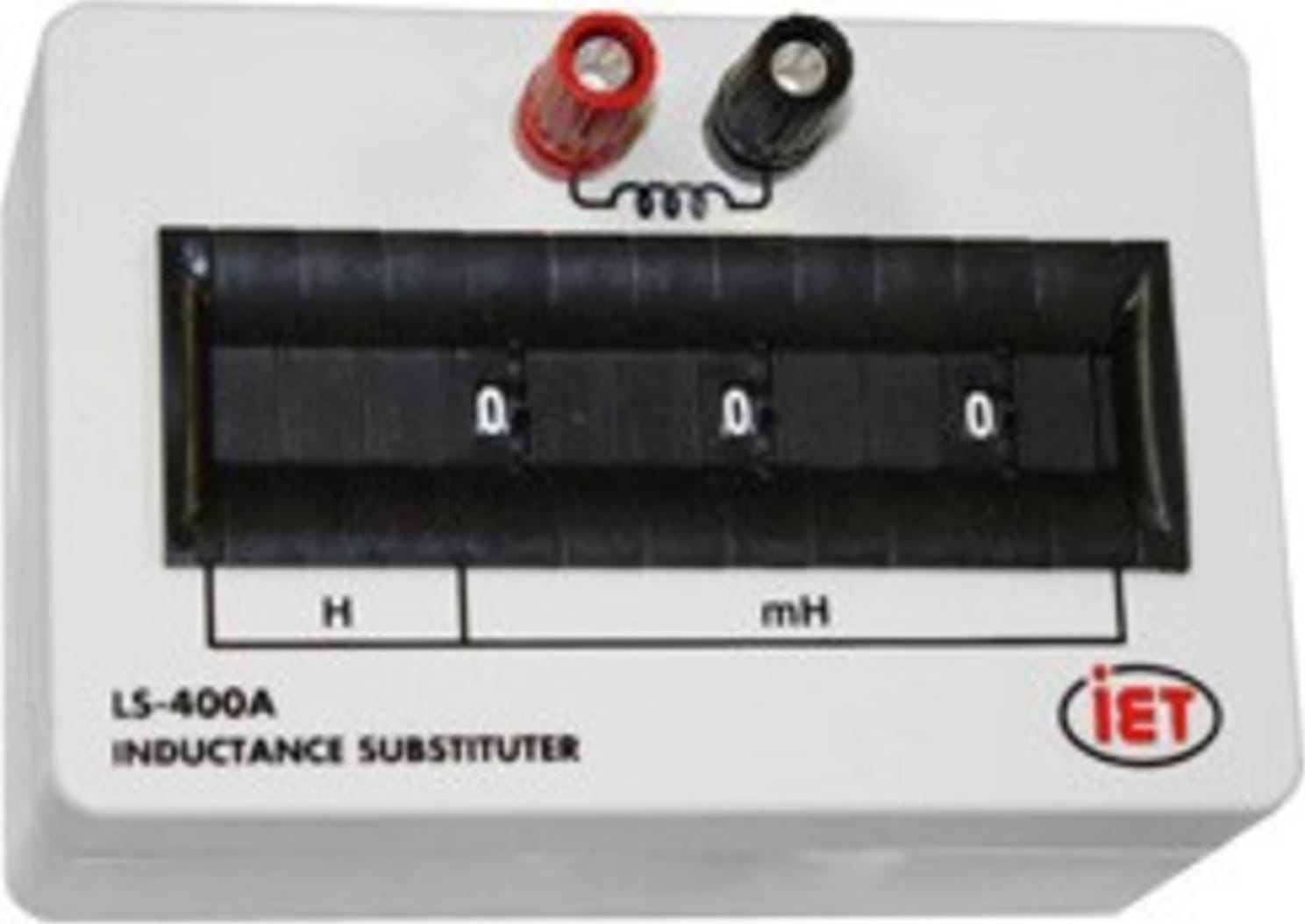

IET Labs LS Series Inductance Decade Substituters

Name: IET Labs LS Series Inductance Decade Substituters
Brand: IET Labs
SKU: IET LabsLS-400A
Price: 697.78 USD
Availability: InStock

0 reviews | Model: IET Labs LS-400A

Compare

Inductance Substituter

View Product Details

List Price: $735.00

Your Price: $697.78

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Non-Cancellable / Non-Returnable

Recommended for you

Model	LS-400	LS-400A
Type of Substituter	Wide Range Inductance	Inductance
Accuracy*	?(2%+0.5 ?H)	?(2%+0.5 ?H)
Decades	4	3
Range	0 - 9,999 H	0 - 999 mH
Resolution	1 mH	1 mH
Type of Components	Toroidal Inductors
Ratings	See Table Below
Residual Impedance	0.2 Ω (0.04 Ω/dec.)?, typical
Physical	12 x 7.9 x 5.6 cm, 230 g (4.7 x 3.1 x 2.2 in, 8 oz)

* Accuracy after subtraction of the Residual Impedance; traceable to NIST. LS-400 and LS-400A Test Conditions: 1 kHz; 1 Vrms; series model; 23°C.

** Higher power resistance substituters (1 W or higher) avail able; see optional models below or HPRS data sheet.

† Residual Impedance may be reduced to 0.04 O or 5 pF for lowest decade with LR Option. This makes for more effective usage at low impedances. Lowest decade is isolated from others with a switch when desired.

Additional Information for Inductance Substituters
Inductance	Frequency Range	Max Q	Rating
0.1 - 0.9 mH	300 Hz - 2 MHz	100 @ 80 kHz	700 mA
1 - 9 mH	300 Hz - 1 MHz	80 @ 40 kHz	500 mA
10 - 90 mH	300 Hz - 800 kHz	80 @ 40 kHz	300 mA
0.1 - 0.9 H	300 Hz - 200 kHz	40 @ 20 kHz	100 mA
1 - 9 H	200 Hz - 20 kHz	30 @ 8 kHz	20 mA
10-90 H	200 Hz - 6 kHz	60 @ 80 2 kHz	4 mA

IET Labs
Main Page

IET Labs
Inductance Decade Boxes

IET Labs
Price List

Decade Boxes/Inductance Decade Box Template
Minimum Inductance	0 mH (0 uH)
Maximum Resistance (inductance)	999 mH
# Decades/Steps/Range	3
Accuracy	± 2% + 0.5µH
Max Resolution (Inductance)	1 mH (1000 uH)
Programmable	Yes
Test Equipment General Attributes
Warranty	12 MONTHS (1 YEARS)
Product Weight	1 LBS
Product Height	2.2 IN
Product Length	4.7 IN
Product Width	3.1 IN
Data Logging	No
HTS/Schedule B Number	9030.33.0040
Country of Origin	United States
