IET Labs RCS Series Resistance-Capacitance Decade Substituters

Name: IET Labs RCS Series Resistance-Capacitance Decade Substituters
Brand: IET Labs
SKU: IET LabsRCS-502
Price: 659.27 USD
Availability: InStock

0 reviews | Model: IET Labs RCS-502

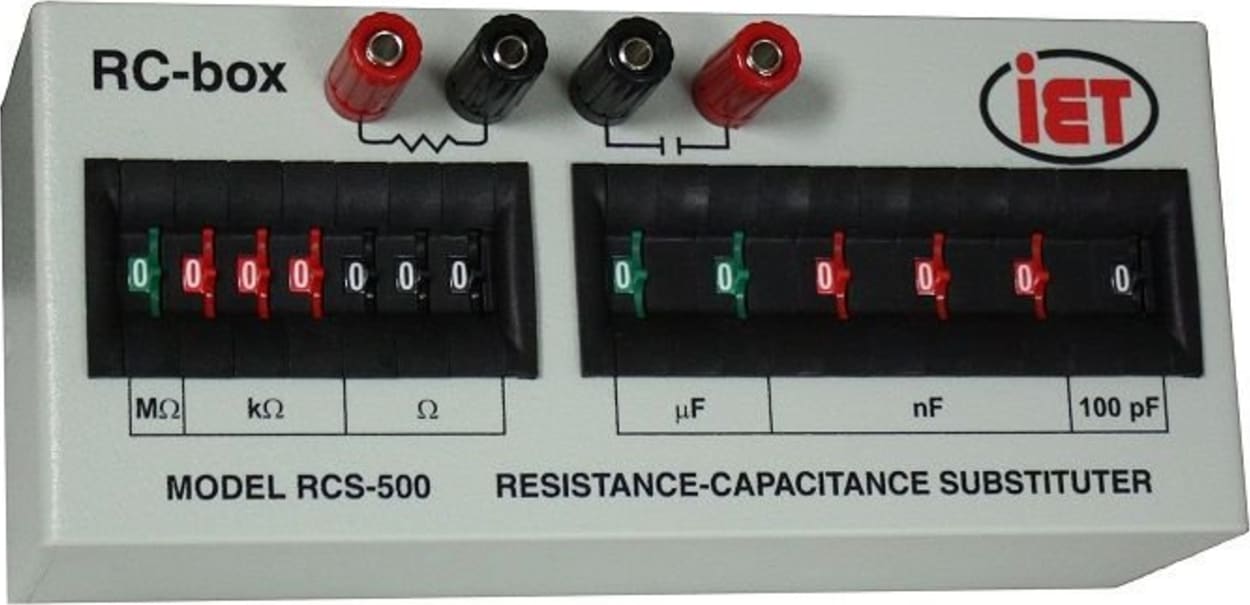

IET Labs RCS-500 Series Resistance-Capacitance Decade Substituters

Compare

Precision Resistance-Capacitance Substituter

Combination of resistance and capacitance decades
Accurate 0.1% to 4% (depending on model)
Capacitance range 100 pF - 100 µF
Resistance range 1 Ω - 10 MΩ
Compact, convenient, and rugged
Now includes a NIST traceable calibration certificate
Direct reading and easy to use
Color coded switches
Two models available RCS-500 and RCS-502, RCS-502 has improved accuracy

View Product Details

List Price: $694.43

Your Price: $659.27

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Non-Cancellable / Non-Returnable

Recommended for you

IET Labs RCS Series Resistance & Capacitance Box

Combination of resistance and capacitance decades
Accurate 0.1% to 4% (depending on model)
Capacitance range 100 pF - 100 µF
Resistance range 1 Ω - 10 MΩ
Compact, convenient, and rugged

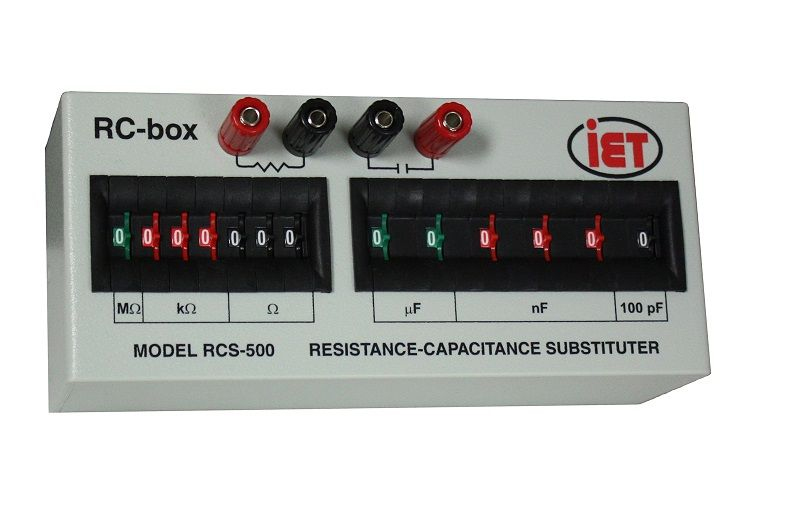

The RCS-box combines the features and specifications of both the R-box and the C-box in one convenient package. Ideal for trimming of timers, oscillators, and filters, the resistance and capacitance may be used independently, in series, or in parallel. A shorting link allows them to be coupled or separated.

One nice feature of the RCS Series is that it uses convenient side by side, color coded thumbwheel switches, that allow for direct reading - There is no fumbling with multiple slide or rotary switches. Simply dial in the desired values and use!

Made of high impact plastic and weighing less then a pound, these decade boxes are very portable and can reduce clutter on a busy lab bench.

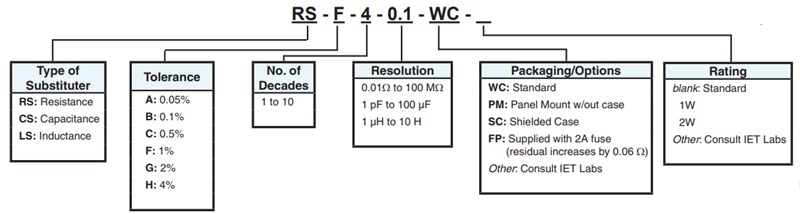

Optional Model

General Specifications
Model	RCS-500		RCS-502
Combines	RS-200	CS-300	RS-201	CS-301
Type	Resistance	Capacitance	Precision Resistance	Precision Capacitance
Resistance Accuracy	±(1%+25 mΩ)	±(4%+3 pF)	±(0.1%+25 mΩ)	±(1%+3 pF)
Decades	7	6	7	6
Range	0 - 9,999,999 Ω	0- 99.999 9 µF	0 - 9,999,999 Ω	0- 99.999 9 µF
Resolution	1 Ω	100 pF	1 Ω	100 pF
Ratings	0.5 W (rising to 2.5 W at step 9)	100 V (25 V for 10 - 100 μF)	0.5 W (rising to 2.5 W at step 9)	100 V (25 V for 10 - 100 μF)
Residual	≤0.39 Ω (≤0.056 Ω/decade)	≤42 pF (≤7 pF/decade)	≤0.39 Ω (≤0.056 Ω/decade)	≤42 pF (≤7 pF/decade)
Physical	18.8 x 8.4 x 6.4 cm, 410 g (7.4 x 3.3 x 2.5 in, 14 oz)

Decade Boxes/Capacitance Decade Box Template
Minimum Capacitance	100 pF (0.0001 uF)
Maximum Capacitance	99.9999 uF
# Decades/Steps/Range	6
Max Resolution (Capacitance)	100 pF
Max Voltage	100 V
Decade Boxes/Resistance Decade Box / Precision Resistance Template
Minimum Resistance (decade box)	1 Ohms
Maximum Resistance (decade box)	9999999 Ohms (9999999000 m Ohms)
Accuracy	±(1%+3 pF)
Max Resolution (Ohms)	1 Ohms (1000 m Ohms)
Programmable	No
Test Equipment General Attributes
Unique Features	Combines the RS-201 and CS-301 into one device.
Warranty	12 MONTHS (1 YEARS)
Product Weight	1 LBS
Product Height	2.4 IN
Product Length	7.4 IN
Product Width	4.3 IN
Data Logging	No
HTS/Schedule B Number	9030.33.3400
ECCN Number	3A992
Country of Origin	United States
