• Pixel Resolution: 640 x 512
• Accuracy: ± 2°C (± 3.6 °F) or ± 2%
• Temperature Range: -20 °C to 550 °C (-4 °F to 1022 °F)
• FOV: 48° x 38°
• Frame Rate: 30 Hz

High Resolution at an Affordable Price

Featuring a wide temperature range from -20 ℃ to 550 ℃ (-4 °F to 1022 °F), the T-Cam 600 is useful for electrical and HVAC inspections, automotive maintenance, and security surveillance. Enable the center/hot/cold spot temperature points and alarming features to assist in detecting critical failures. Interval photography allows inspectors to capture images for a programmed duration and frequency. Take advantage of WiFi support to view images on a mobile device; cloud services are also offered. Stream media to a PC using the USB Type-C connector. The T-Cam 600 is easy to use and has reliable performance.

Rated IP54 to protect against dirt, dust, and other non-corrosive materials. 2 m (6.56’) drop-rating to withstand the rigors of tough inspections. Each T-Cam 600 is shipped with two rechargeables, replaceable 4500 mAh batteries and a charging dock to meet the requirements of heavy daily use. Power management is built-in to save battery life.

Provides 640 x 480 high resolution thermal images. Captures visible images with a 5 MP digital camera. Features manual adjustment for clear and precise focus. Features 5 image modes: detail enhancement, picture-in-picture, visible, infrared and ICI Dual Vision for situational awareness and target location. 10 color palettes to enhance viewing and easily find hot spots. Save images to the provided MicroSD card.

Quick start instruction guide provided. No additional training is required. One-handed, 5-button easy operation for fast inspections. Use a handheld or on a tripod. Features a 3.5” LCD high definition (640 × 480) capacitive touch screen with adjustable screen brightness for on the spot analysis. Also utilize the Type-C connector to plug-and-play streaming to an external device.

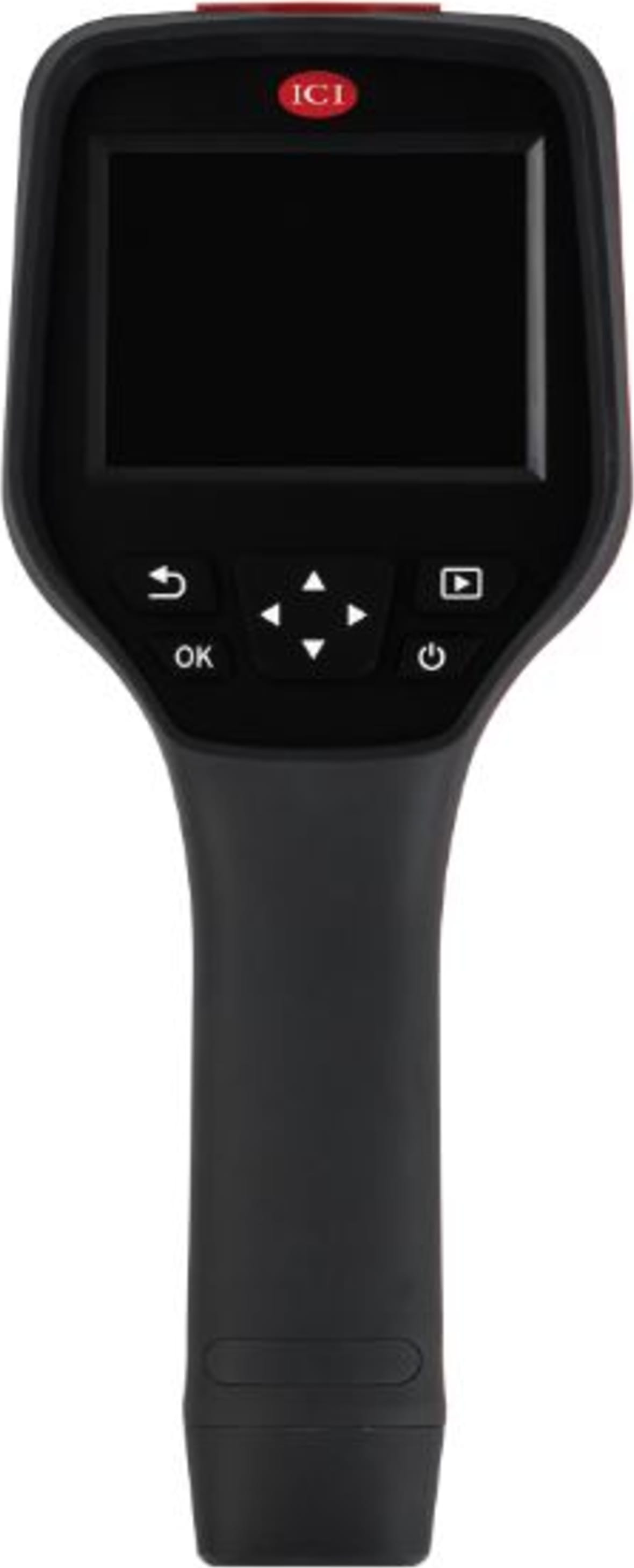

The T-Cam 600 handheld thermal camera provides high temperature measuring from -20 °C to 550 °C (-4 °F to 1022 °F) and an accuracy of ± 2°C (± 3.6 °F) or ± 2%. Manual focus provides clear 640 x 512 images to meet research and field requirements. Perfect for one-hand inspection by engineers and electrical thermographers who need to perform analysis on-the-go. Take advantage of WiFi support to view images on a mobile device; cloud services are also offered. Stream media to a PC using the USB Type-C connector.
