• Pixel Resolution: 640 x 480
• Accuracy: Standard: ± 1°C (± 1.8 °F) or ± 1%; Hi-Temp: ± 2°C (± 3.6 °F) or ± 2%
• Standard Temperature Range: -20 °C to 150 °C (-4 °F to 302 °F), 150 °C to 800 °C (302°F to 1472 °F)
• Hi-Temp Temperature Range: 800 °C to 2000 °C (1472 °F to 3632 °F)
• FOV: 24.6° × 18.5°
• Focus: motor-drive/automatic

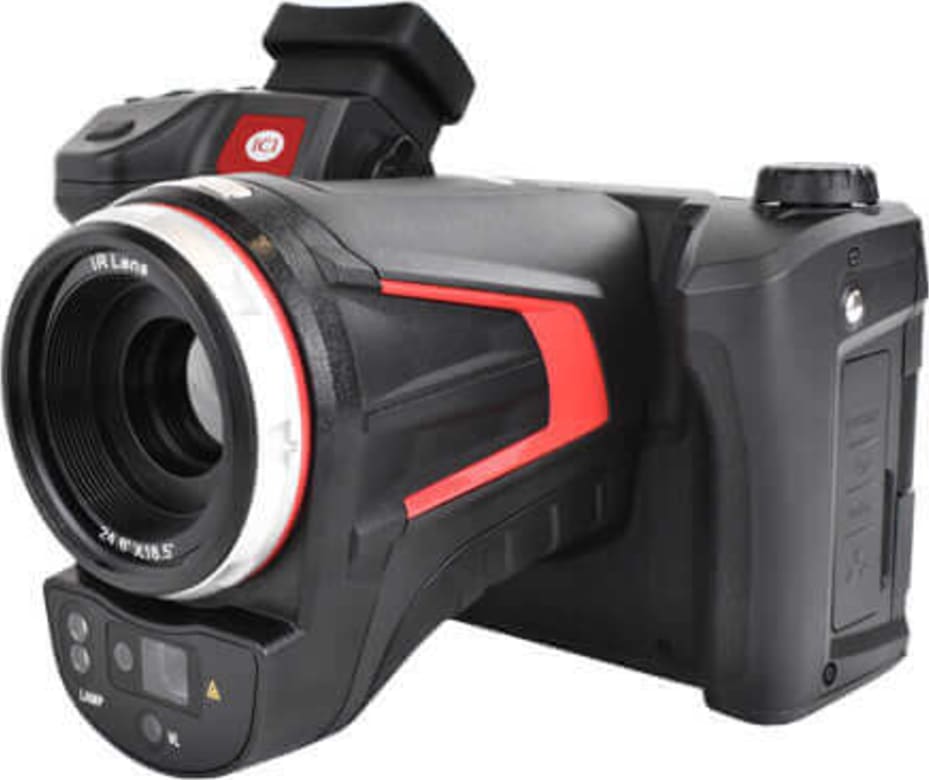

The I-Cam 640 P-Series is a 640 x 480 resolution imager that allows thermographers to pinpoint overheating components and take accurate temperature measurements. Perform thermal analysis and build panoramic mosaics. Features audio and visual alarms as well as interval photography to capture images automatically. Create report documents and print over Wi-Fi connection. An optional high temperature filter is available to extend measurements up to 2000°C (3632°F) targeting critical infrastructure and giving users dependable performance in extreme conditions.

The ergonomic rotating lens and 5” (1280×720) LCD touchscreen is designed to help thermographers image quickly and comfortably at any angle, including overhead or between narrow gaps. Prevents fatigue and is best for diagnosing temperature sensitive components in hard-to-reach areas.

Perform analysis with 10 temperature spots, 10 lines, and 10 areas boxes of measurement. Data is saved with the images and can be exported on the SD card. Create 60 seconds of voice annotation per image and text annotation to assist in creating report documents. Create isotherms and sketch on images to differentiate areas of concern.

Create PDF documents using the on-board analysis and reporting capabilities. Analysis reports can also be printed instantly via a Wi-Fi printer. Bluetooth optional.

The I-Cam 640 P-Series thermographic camera is a 640 x 480 resolution imager with a temperature calibration of -20 °C to 150 °C (-4 °F to 302 °F); an optional high temperature range up to 2000 °C (1472 °F to 3632 °F) is available. The device has an accuracy of ± 1°C (± 1.8 °F) or ± 1%. It is capable of quantitative thermal analysis and features alarming functions as well as document creation and Wi-Fi printing. Software included.
