• Industrial grade Infrared thermal camera
• 50 Hz refresh rate
• Pixel Resolution: 384 x 288
• Thermal Sensitivity (NETD): < (40 mK) 0.04 °C at 30 °C (86°F)
• Temperature Range: -20°C to 550°C (-4°F to 1022°F)

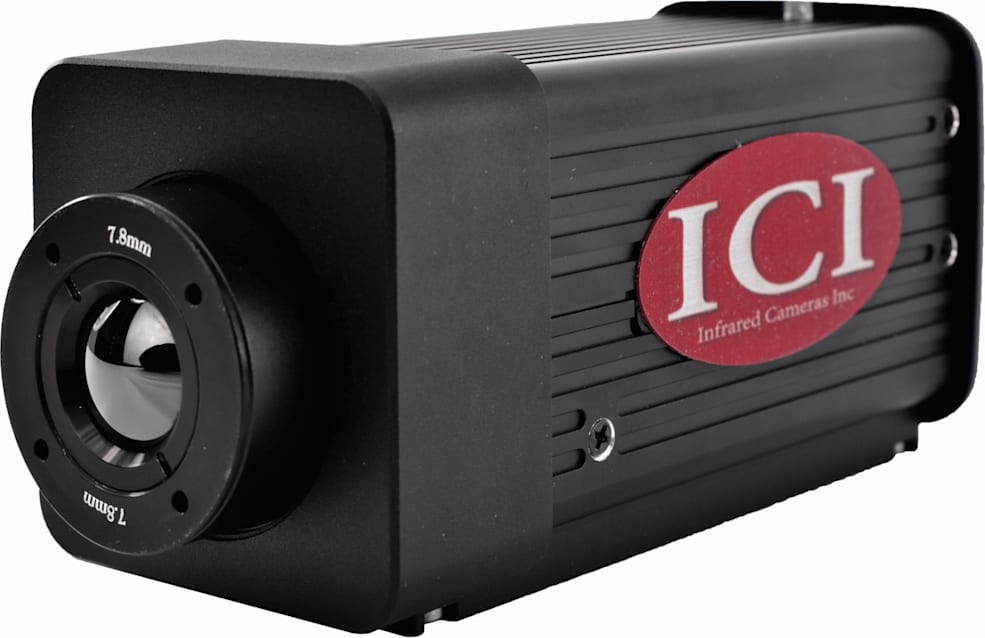

The FMX 400 P-Series is a 384 x 288 imager with unmatched sensitivity and an accuracy of ± 2°C (± 3.6°F) or ± 2%. It provides real-time thermal imaging of temperatures between -20°C to 550°C (-4°F to 1022°F). Our FMX 400 is designed for fixed mounted applications. The FMX 400 has IP54 protection and includes IR Flash Pro software for thermal analysis. Integrate the device with our stainless steel, explosion-proof housing for imaging objects in hard-to-reach areas or extreme environments.

• Warehousing applications, including conveyors, motors, bearings, belts
• Substation monitoring
• Transformer monitoring
• Critical facility power monitoring

The FMX 400/FMX 700 Series cameras are used for surface temperature assessment of energy emitted from the first 1/1000th of an inch of a subject. Environment of use: industrial and petrochemical buildings, electrical plants, security rooms, science labs, animal reserves as well as environmental conservatories, among others.

ICI’s IR Flash version 1.0 professional thermal imaging software is geared towards the professional thermographer or medical technician who requires a full suite of analysis tools for research, process control, and flare monitoring. Also serves research, scientific, and prevention monitoring applications. The core technology used in ICI software is the latest in thermal imaging, with control functionality built-in. This ensures versatility for any and all process monitoring and control applications.

Use the built-in IR Calculator to determine the theoretical effects of emissivity, reflection, and transmission on radiometric temperature values. Zoom in or out on images. Users can manually capture images for view a continuous stream.

Image display controls fine-tune the way the images are presented on screen with automatic gain control, center and span controls. Image touch-ups are also available for enhancing images. IR Flash allows for complete control over the color palette for viewing black and white IR images in color scale. Users can even average multiple images from the camera into a single image.

Generate regions of interest within or on your image data by marking and configuring them. There are a total of 48 possible zone settings. Users can plot the temperature data over time for any/all of the zones placed on the image while maintaining the ability to adjust radiometric controls for each zone individually.

Export data within zones in Excel, CSV, Raw data formats. Alarms configuration for each zone allows you to set up the system for continuously monitoring. Alarms are triggered if any of the zones average temperature value exceed the temperature threshold specified.
