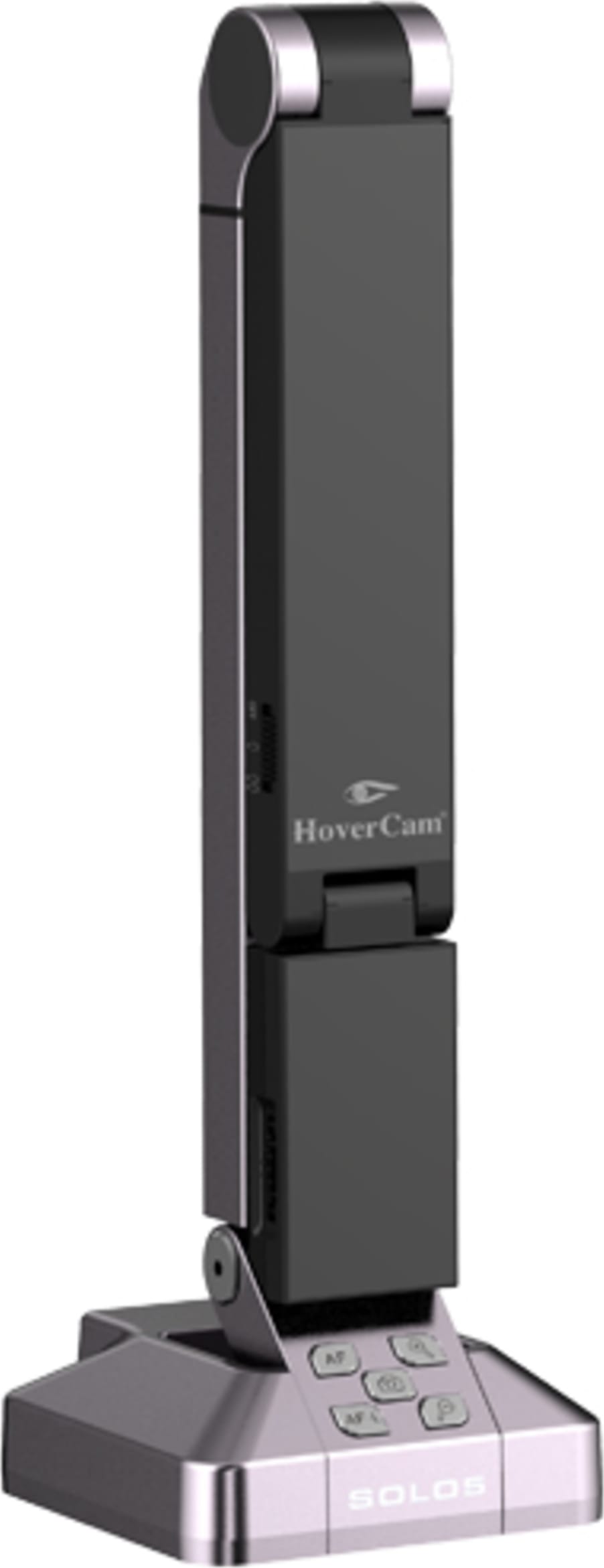

| Model: Solo 5x Specifications |
| Hardware Specifications |
| Sensor |
5.0 MegaPixel HD CMOS |
| Optical Resolution |
Optical Format 1/4 inch |
| Image Resolution |
2592x1944, 2048x1536, 1600x1200, 1280x720, 800x600 |
| Frame Rate |
2592x1944 @ 15fps, 2048x1536 @ 15fps, 1600x1200 @ 15 fps, 800x600 @ 30 fps |
| Video Compression |
MJPEG |
| Power Requirements |
USB Powered, No External Power Required |
| Communication Interface |
USB 2.0 UVC |
| System Requirements |
CPU 1.0 GHz Minimum, 1.6 GHz Recommened, RAM 512MB Minimum, 1GB Recommended |
| Zoom |
16X digital, 12X mechanical |
| Scan Size |
A3, A4, Tabloid, Legal, Letter, or other smaller sizes |
| Lighting |
1x LED light |
| Height and Weight |
11", 1.8 lbs |
| Dimensions (W x D x H) |
3.15" x 3.15" x 11" |
| Connections Required |
1 USB 2.0 cable to the computer |
| Warranty |
1 year |
| Microphone |
Included |
| Accessories |
15ft cable, protective pouch, scanning mat |
| Certifications |
FCC, CE, RoH |
| Focus |
Autofocus, autofocus lock. Minimum 1.7" focal distance |
| Software Specifications |
| Audio and Video Recording |
Unlimited AVI files saved directly to hard drive |
| Select Recording Area |
Select region on any screen to record |
| Annotation |
Freehand, Text, Highlighter, Answer Mask, Shapes |
| Drag-and-Drop Images |
Patent Pending Fast-Action Drag-and-Drop of any |
| or Video Files |
video or image files into MS Office or IWB software |
| Interactive White Board Integration |
Share live video on SmartBoard, Promethean, eBeam, Mimio
Included through easy Drag-and-Drop
Twain Driver |
| Image Rotation |
360 degrees |
| Controls |
Auto White Balance, Brightness, Contrast, Saturation, Freeze Frame |
| Zoom and Scroll |
Patent Pending 16X Software Enhanced Video Zoom |
| Operating Systems |
Windows XP/Vista/7 Mac Intel/PPC OS X 10.5+ |
| MSI |
Included for network installation |
| Archive Manager |
Full file management, importing and exporting of files
Stacking/Collating multiple files into PDF or TIFF |
| OCR |
Included with Text-to-Speech |
| Picture-in-Picture |
Display and/or record PIP from a second video camera |
| Auto-Straightening |
Included |
| Auto-Cropping |
Automatic trimming enables quick batch scanning |
| Time Lapse / Motion Sensor |
Take Snapshots at user specified time intervals or by |
| HoverCam Connect with |
User movement and save as PDF or TIFF |
| Video Conference |
Enables user to share a common virtual whiteboard
Annotation from multiple users over shared video feed
Highly interactive distance learning |
| 3rd Party Collaborative Work Environment |
Integration with Skype, WebEx, GoToMeeting, through screen sharing; upload to EverNote |
