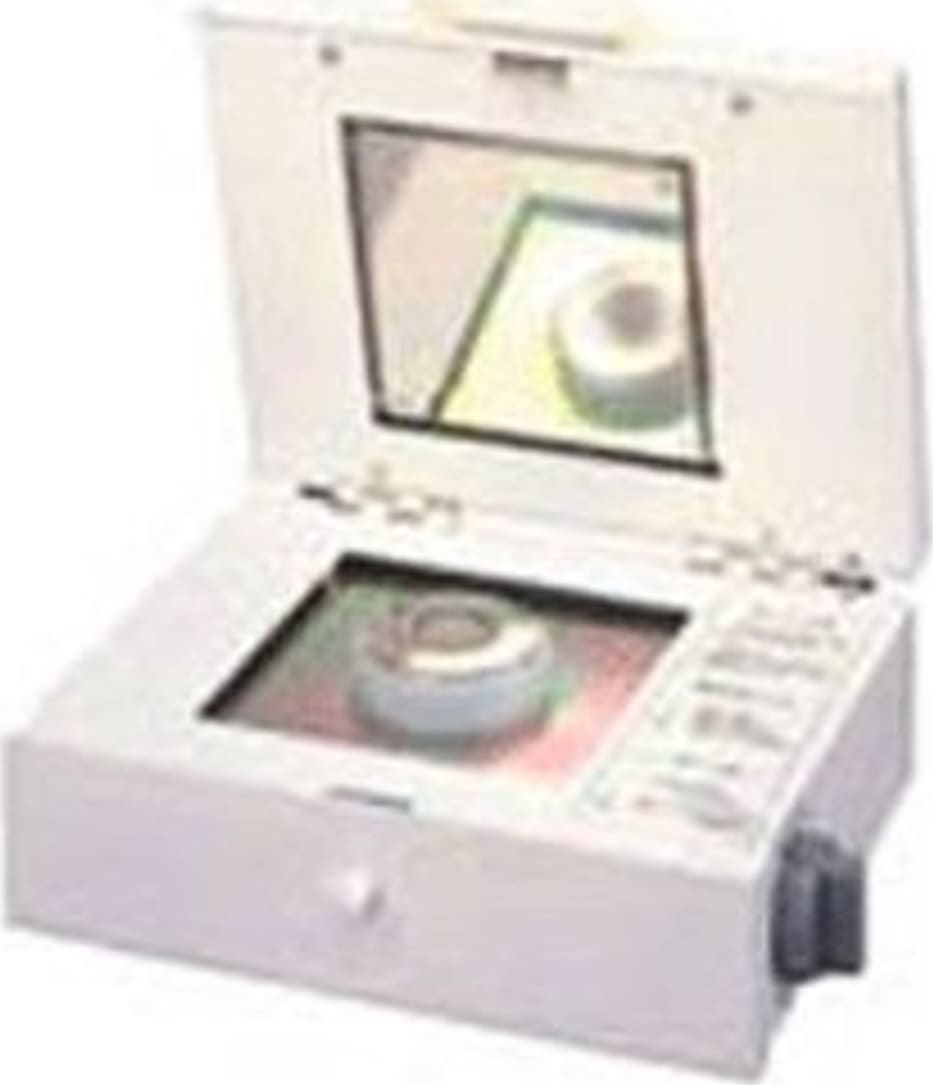

Hioki SME-8311 Electrode for Plates

Name: Hioki SME-8311 Electrode for Plates
Brand: Hioki
SKU: HiokiSME-8311
Price: 2728.00 USD
Availability: InStock

0 reviews | Model: Hioki SME-8311

Compare

Plate Sample Electrode. Measure the Resistivity of Flat Samples Efficiently.

Plate Sample Electrode

View Product Details

Your Price: $2,728.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Recommended for you

Hioki SME-8311 - Electrode for Plates

Plate Sample Electrode
Measure the Resistivity of Plate Samples Efficiently
Lead length 75cm (2.46ft)

Hioki Super Megohmmeters are high insulation resistance meters designed to measure the electrical resistance of insulation materials with high insulating properties. The SME-8311 is used for measuring the insulation resistance of flat samples in conjunction with the SM-8200 Series. Sample of 40~100mm square by up to 8mm in thickness is measurable. The main electrode dia. is 19.6mm and inner & outer dia. of ring electrode are 24.1mm & 28.8mm respectively. Measurement voltage becomes “OFF” while the lid is open to ensure safety. The fundamental specifications are the same as SME-8310.

The sample of 100mm square by up to 8mm in thickness is measurable. The main electrode dia. is 50mm and inner & outer dia. of ring electrode are 70mm & 80mm respectively. Measurement voltage becomes "OFF" while the lid is open to ensure safety. A selector switch allows the selection of voltage or surface resistivity.

Resistivity

Resistivity (specific resistance) is measured to determine the quality of an insulating material. Resistivity can be classified as volume resistivity or surface resistivity, respectively indicated by the resistance between two sides relative to that of a 1 cm 3 cube, or by the resistance relative to that of a 1 cm 2 surface. HIOKI’s super megohmmeter series utilizes the SME-8310 and SME-8311 flat sample test fixtures to measure these two types of resistivity, respectively.
