Hioki LR8500 Voltage/Temp Input Unit

Name: Hioki LR8500 Voltage/Temp Input Unit
Brand: Hioki
SKU: HiokiLR8500
Price: 650.00 USD
Availability: InStock

0 reviews | Model: Hioki LR8500

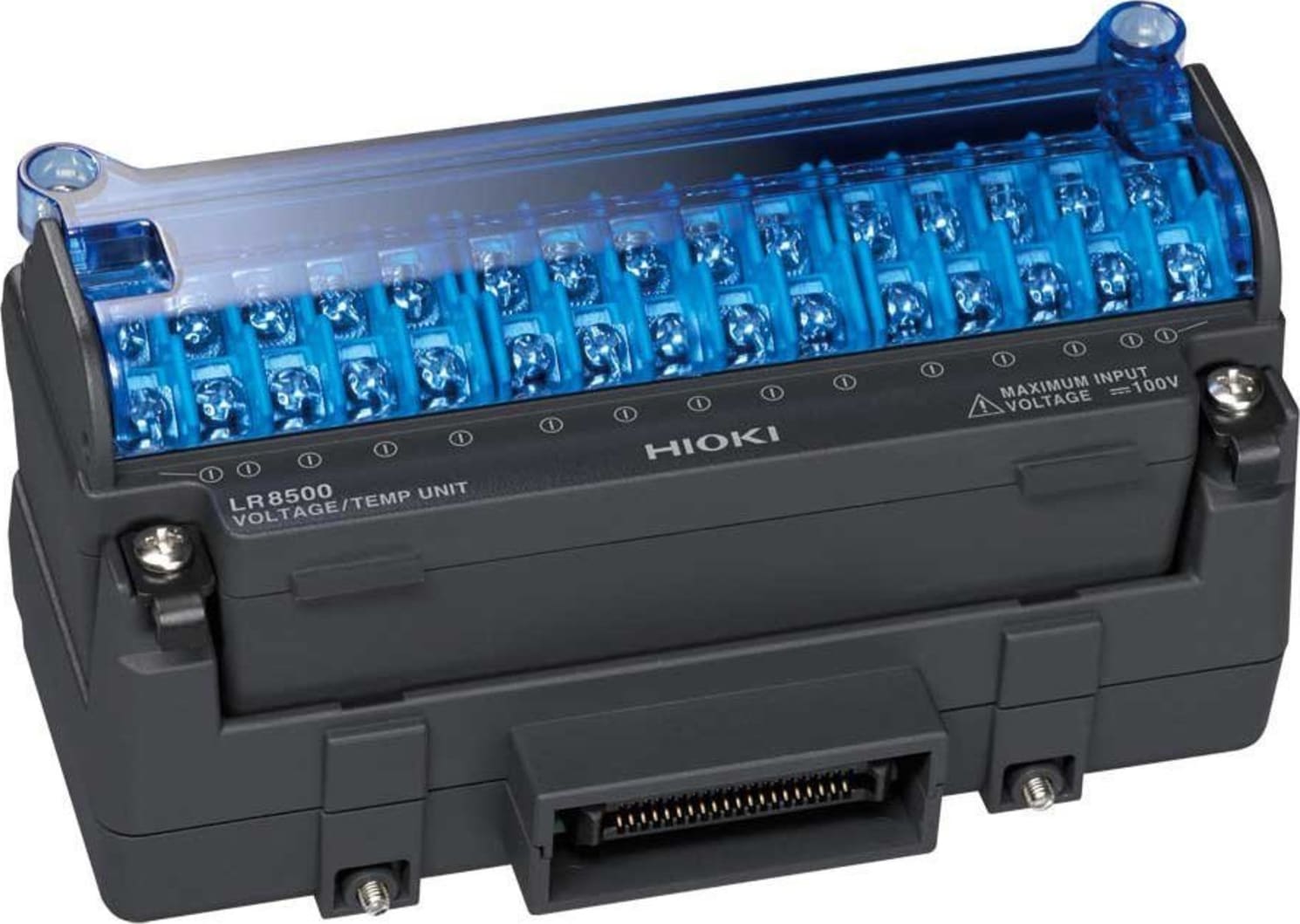

Hioki LR8500 Voltage/Temperature Input Unit

Compare

Voltage/Temp Input Unit for LR840X-20

Voltage/Temp Input Unit

View Product Details

List Price: $650.00

In Stock:

View Payment Options

Recommended for you

Analog input VOLTAGE/TEMP UNIT LR8500
Actual functionality will depend on combination of units installed

[No. of channels] 15 analog channels; isolated scanning method input (2 terminals: M3 screw type)
[Voltage] 10 mV to 100 V, 1-5 V f.s. 10 ranges, Max. resolution: 500 nV
[Temperature: Thermocouples] -200°C to 2000°C (depends on sensor), 3 ranges (K, J, E, T, N, R, S, B, W), Max. resolution 0.01°C
[Temperature: Pt 100, JPt 100 sensor] [Resistance] not available
[Humidity] 100 % rh f.s. 5.0 to 95.0 % rh (when using Z2000), resolution 0.1 % rh
[Max. rated voltage between isolated input channels] 250 V DC
[Max. allowable input] ±100 V DC
[Max. rated voltage from isolated terminals to ground] 300 V AC, DC
Caution: Caution: Max. voltage from terminals to ground without damage

Tech Specs

Test Equipment General Attributes
Product Height	4.25 IN
Product Length	6.00 IN
Product Width	3.75 IN
ECCN Number	3A992
Country of Origin	Japan
Shipping Height	4.25 IN
Shipping Length	6.00 IN
Shipping Width	3.75 IN
