Hioki LR5011 - Mini Data Logger Measure Temperature with External Sensor using Single Channel Data Logger

The LR5011 logs temperature over 1 channel in as fast as 1 second intervals. Hioki compact 1 or 2-channel data loggers feature a 60,000 data set/channel memory to measure temperature, humidity, voltage or instrumentation signals.

The new HIOKI compact data logger series easily records temperature, voltage, current, and instrumentation signals over long periods. Carried over from its highly reputed predecessor, this series includes features and functions such as 7 times the recording capacity of former models, data import during recording, continuous measurement even during battery replacement, and intuitive PC software. Flexible and easy-to-use at single and multiple locations, the new HIOKI compact data logger series is ideal for any application that requires simple set-up but long-term, reliable recording capabilities.

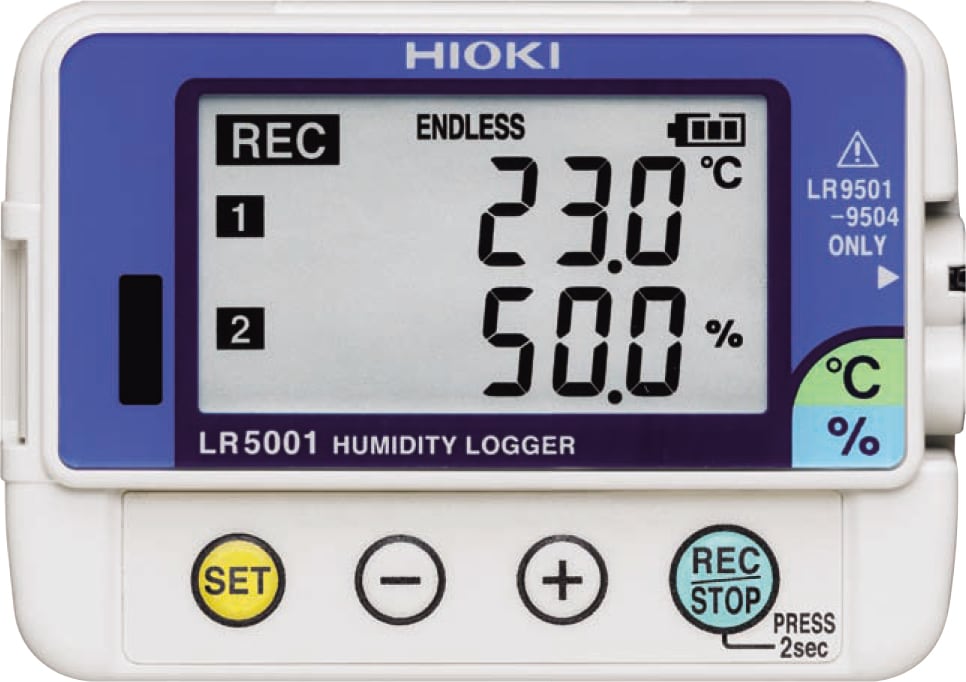

Temperature Logger / Humidity Logger

Manage the temperature and humidity in offices and factories. Visually monitor the data to save on air-conditioning and heating costs.


Instrumentation Logger / Voltage Logger

Record fluid flow such as for water, gas and oil. Measure flow meter output signals to monitor flow trends.


Clamp Logger

Manage the current consumption of plant and building equipment. Visually monitor power costs to efficiently conduct energy and cost-saving activities.

Advanced Features and Functions

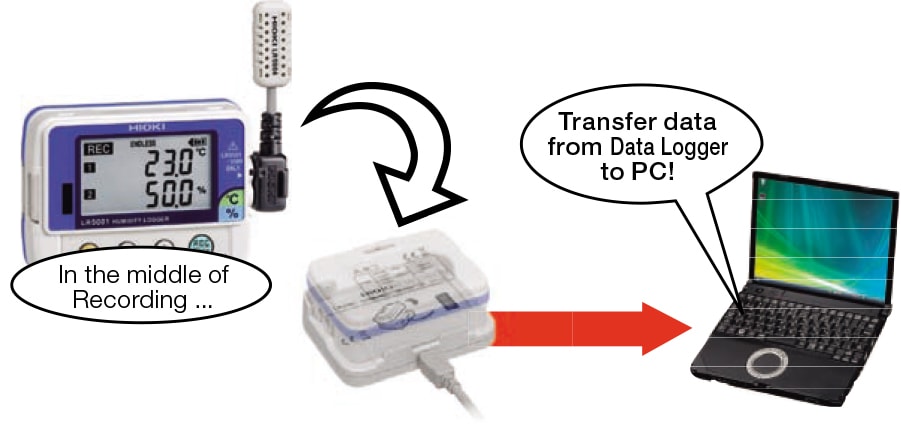

Transfer data even during recording

Continue to record even when transferring data.


Recording capacity up to 7 times previous models

Large internal memory stores 60,000 data points per channel. Long-term recording capability exceeds that of previous models.

Bundled Software Ensures Smooth and Easy Data Analysis

Import data to a PC and create graphs

Use the LR5000 Utility program to import Data Logger data to a PC to make graphs and analyze data further. Easily print results using your PC.


Show specific values using the cursor function

Use the A/B cursors to select any location on a graph and display its value. The PC software can also calculate maximum, minimum, and average values between A and B cursors.


Display data from former Data Logger models

The PC application also supports data collected from the HIOKI 36XX Series Data Loggers.
