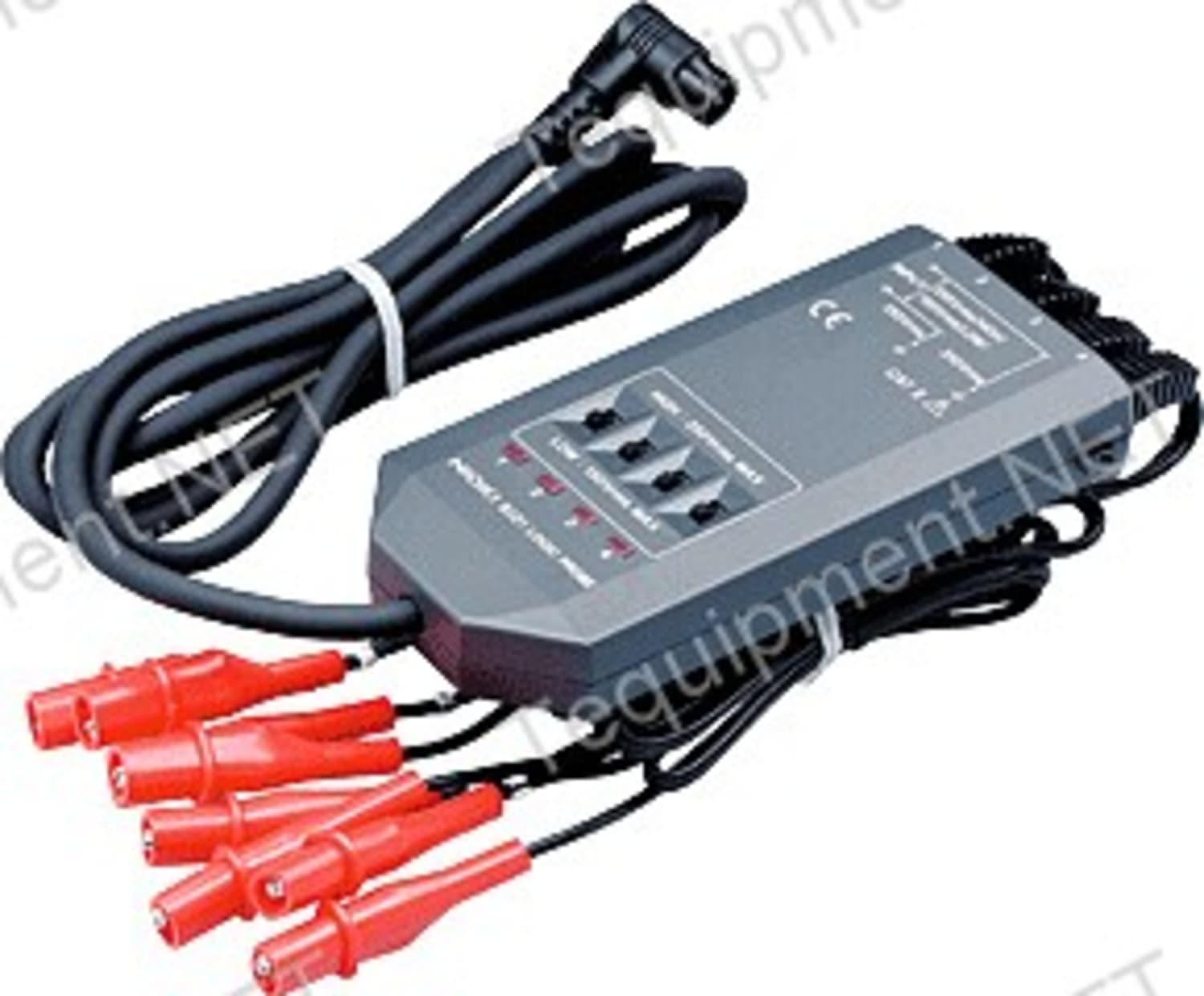

Hioki 9321 Logic Probe

Name: Hioki 9321 Logic Probe
Brand: Hioki
SKU: Hioki9321
Price: 429.00 USD
Availability: InStock

0 reviews | Model: Hioki 9321

Compare

see new MR9321

Logic Probe for 8835-01

View Product Details

List Price: $429.00

In Stock:

View Payment Options

Recommended for you

Logic Probe for 8835-01

Logic signal detection probe
Detector for recording highs and lows in AC and DC relay drive signals. Can be used for detecting power outages.

The 9321 is a logic probe with indicator. It is connected to the logic input unit for 8800 series Memory HiCorders. This probe detects presence of AC or DC voltage, making it possible to measure the operation timing of relay sequence circuits. Each channel is floated so that connection is easy.

It is possible to use the 9321 for 8807/ 8808/ 8855/ 8860/ 8861 by using optional 9323 CONVERSION CABLE.

Inputs	4 channels (isolate), HIGH/LOW range switching type
Input resistance	at least 100 k-ohm (HIGH range), 30 k-ohm (LOW range)
High detection levels	HIGH range: 170 to 250 V AC, ±70 to 250 V DC LOW range: 60 to 150 V AC, ±20 to 150 V DC
Low detection levels	HIGH range: 0 to 30 V AC, 0 to ±43 V DC LOW range: 0 to 10 V AC, 0 to ±15 V DC
Response time	rising edge 1 ms max., falling edge 3 ms max. (ON/OFF, with HIGH range at 200 V DC, LOW range at 100 V DC)
Max. allowable input	250 V rms (HIGH range), 150 V rms (LOW range)
Dimensions, mass	62 mm(2.44 in)W × 127 mm(5.00 in)H × 20 mm(0.79 in)D, 320 g (11.3 oz) Input cord length: 1 m(3.28 ft) Connection cord length: 1.5 m(4.92 ft)
Accessories	Carrying case (1)

Tech Specs

Accessories/Probes/Logic Probes Template
Max Input Frequency	2 MHz
Minimum Detectable Pulse Width	500 ns
Input Impedance	1 M Ohms
TTL/CMOS Selectable	No
Pulse Function	No
Visual Indication	Yes
Audible Indication	No
Logic Capability	TTL
Reverse Polarity Protection	No
Test Equipment General Attributes
Product Weight	5.3 LBS
Product Height	0.79 IN
Product Length	3.7 IN
Product Width	2.44 IN
ECCN Number	3A992
Country of Origin	Japan
