Hioki 9267 Software Package for the Safety Test

Name: Hioki 9267 Software Package for the Safety Test
Brand: Hioki
SKU: Hioki9267
Price: 263.00 USD
Availability: InStock

0 reviews | Model: Hioki 9267

Compare

Safety Test Software

PC/AT-compatible personal computer equipped with an Intel Pentium 200-MHz CPU or the equivalent, or better
Free hard-disk capacity (at the time of software installation): 4 MB or more
Main memory: 32 MB or more
Display: 800 x 600 dots or higher
CD-ROM drive (required for software installation)
Mouse or other appropriate pointing device
Serial ports
Windows 95/98/Me, Windows NT4.0, Windows 2000, or Windows XP

View Product Details

Your Price: $263.00

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Recommended for you

General
Supplied medium	CD-R (1)
Accessory	Instruction manual (1)
Operating environment
Main unit	PC/AT compatible
CPU	Pentium 200 MHz or later
OS	Windows95/ 98/ Me/ NT4.0/ 2000/ XP
Display	800 X 600 dots or more
Memory	32 MB or more
Hard disk	Free capacity: 4 MB or more
Function specifications
Types of test	Insulation/withstand-voltage test, protective grounding test, actual operation test, and leakage current test
Applicable models	3153, 3159 (Insulation/withstand-voltage test) 3154 (Insulation test) 3156 (Leakage current test) 3158 (Withstand-voltage test) 3157 (Protective grounding test) 3332 (Actual operation test) PLC (for connection switching)
Interface	RS-232C
Data recording	Test results (measurements) saved in a text file (CSVformat)

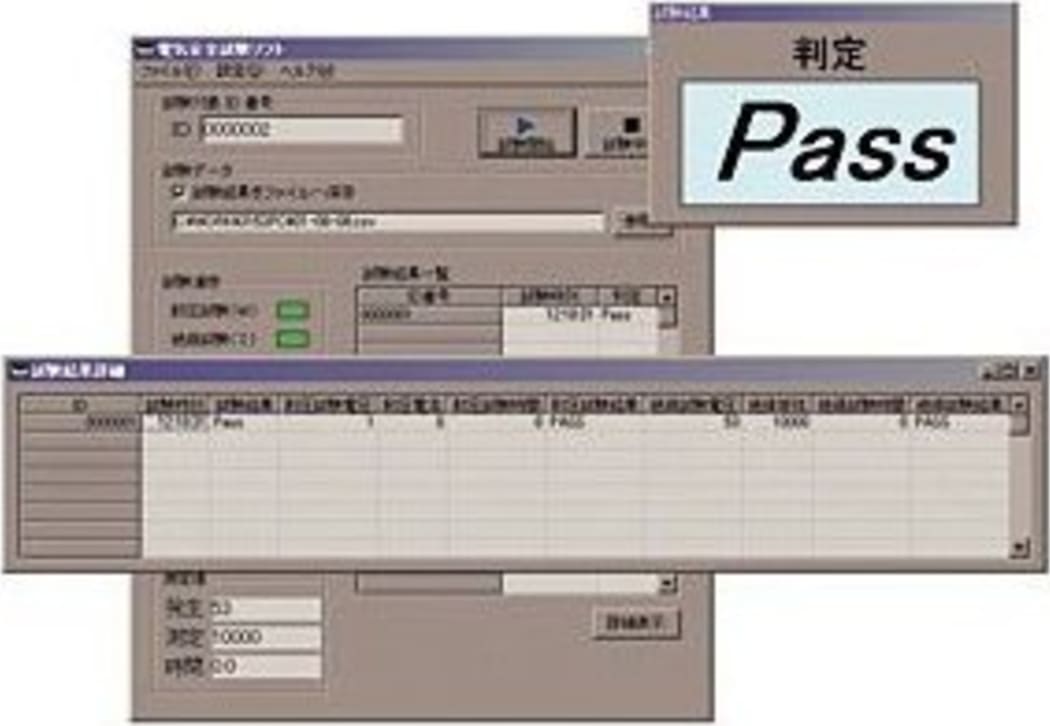

Test-result display	Indication of "Pass" or "Fail" following test Display of test-result list and detailed test results also possible
Tester setting	Setting of individual testers possible With 3153, program-function setting also possible
ID function	Input of ID for test sample possible Test results recorded with ID designation
Connection-switching function	Command transmitted to the PLC prior to each test for connection switching
