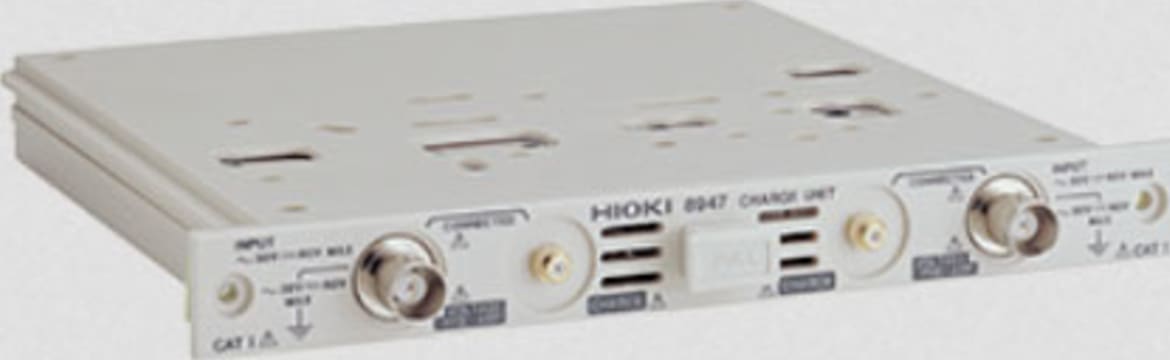

Input |
Number of channels: 2, Measurement objects can be selected individually for each channel. Full isolation between inputs, and between inputs and recorder. Common GND for voltage input and charge input channels.
Voltage and pre-amplifier internal inputs: BNC terminals
Charge input: miniature connector (#10-32 UNF) |
Suitable converters |
Charge input: piezoelectric charge output acceleration pickup sensors
Internal pre-amplifier input: acceleration pickup sensors with built-in pre-amplifier |
Measurement ranges
Charge input (miniature connector)
Pre-amplifier internal input (BNC terminal) |
50 m (m/s 2)/DIV to 10 k (m/s 2)/DIV, 12 ranges x 6 types, Measurement resolution is 1/80 to 1/32 of range (change according to measurement sensitivity)
Measurement sensitivity: 0.1 pC to 10 pC/ (m/s²)
Pre-amplifier internal input measurement sensitivity: 0.1 mV to 10 mV/ (m/s²)
* When attached to recorder where full-scale (f.s.) = 20 divisions
100 m (m/s 2)/DIV to 20 k (m/s 2)/DIV, 12 ranges x 6 types, 1/160 to 1/64 of range
Measurement sensitivity: 0.1 pC to 10 pC/ (m/s²)
Pre-amplifier internal input measurement sensitivity: 0.1 mV to 10 mV/ (m/s²)
* When attached to recorder where full-scale (f.s.) = 10 divisions
Amplitude accuracy: ±2 % f.s.
Frequency characteristics: 1 to 50 kHz +1/-3 dB
Low-pass filter: 500/5 kHz
Pre-amplifier driving power supply: 2 mA ±20%, +15 V ±5%
Highest input charge: ±500 pC (high sensitivity side 6 ranges), ±50000 pC (low sensitivity side 6 ranges) |
Measurement ranges
Voltage input (BNC terminal) |
500 µV to 2 V/division, 12 ranges, Measurement resolution is 1/80 to 1/32 of range (change according to measurement sensitivity) * When attached to recorder where full-scale (f.s.) = 20 divisions
1 mV to 5 V/division, 12 ranges, 1/160 to 1/64 of range * When attached to recorder where full-scale (f.s.) = 10 divisions
DC amplitude accuracy: ±0.4 % f.s.
Frequency characteristics: DC to 400 kHz +1/-3 dB
Low-pass filter: 5/500/5 k/100 kHz
Input coupling: DC, AC, GND
Max. allowable input: 30 V rms or 60 V DC |
Common Functions
to all measurement ranges |
Anti-aliasing filter: can be turned ON or OFF, cut off frequency is the time axis, connected and set automatically by the frequency axis range |
Maximum Sampling Rate |
1 MS/s (simultaneous sampling of two channels) |
Max. Rated Voltage to Earth |
30 V rms or 60 V DC (upper voltage which when applied to input channel casing or between input channels does not damage them) |
Accessories |
None * The input cord is optional |
