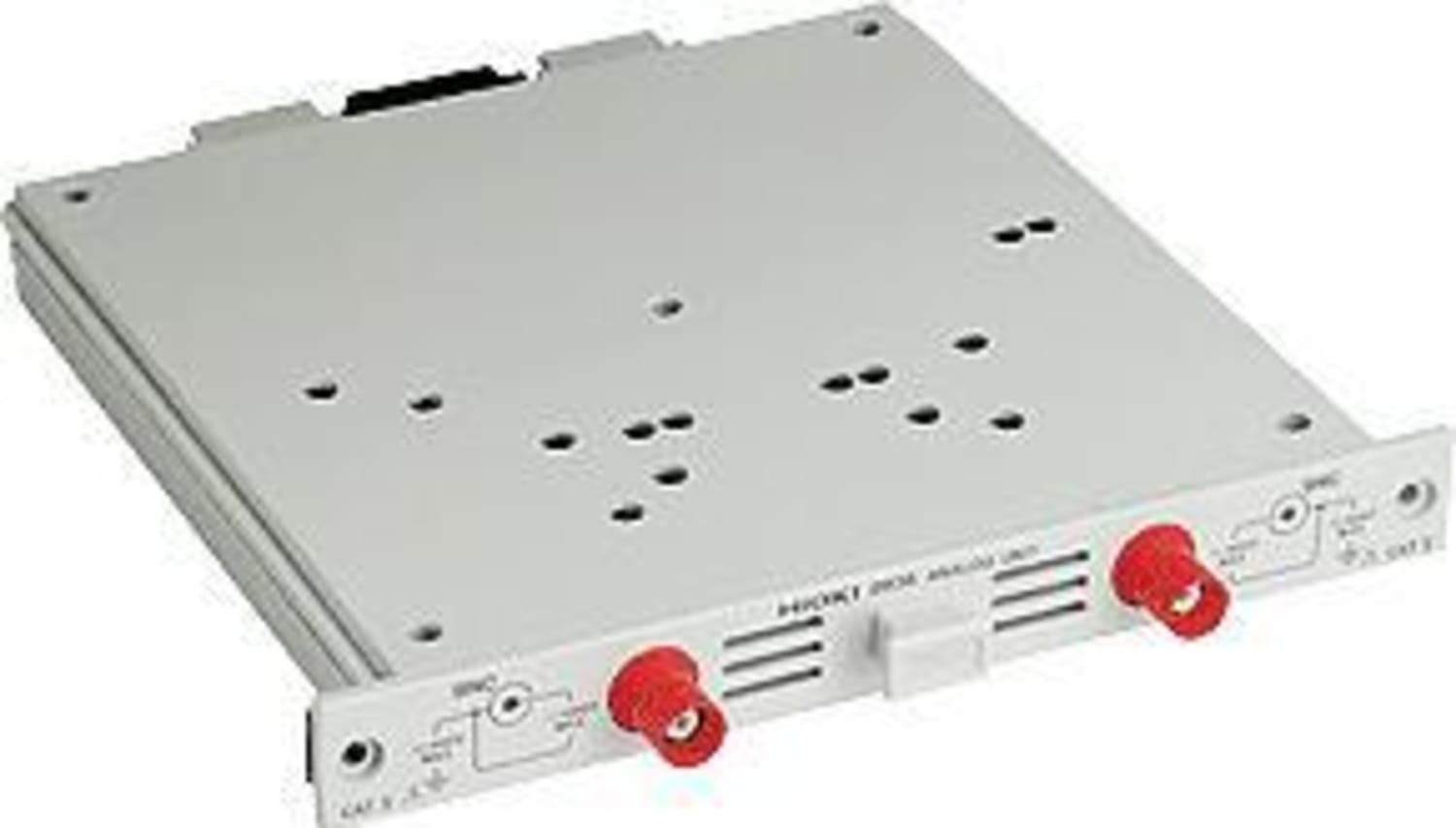

Hioki 8938 FFT Analog Unit

Name: Hioki 8938 FFT Analog Unit
Brand: Hioki
SKU: Hioki8938
Price: 1779.00 USD
Availability: InStock

0 reviews | Model: Hioki 8938

Compare

FFT Analog Unit for 8826,8860/61-51

Simply slot the 8938 into the MEMORY HiCORDER for use
Input Number of channels: 2, Connector: Insulated BNC
Input isolated from output, inter-channel isolation
Measurement ranges 5 mV to 20 V/division, 12 ranges, the measurement resolution is 1/80 of range
AC voltage for possible measurement/display using the memory function: 280 V rms
When attached to recorder where full-scale (f.s.) = 20 divisions
10 mV to 50 V/division, 12 ranges, the measurement resolution is 1/160 of range
AC voltage for possible measurement/display using the memory function: 280 V rms
When attached to recorder where full-scale (f.s.) = 10 divisions
Low-pass filter: 5/500/5 k/100 kHz
Anti-aliasing filter Cutoff frequency 20/40/80/200/400/800/2 k/4 k/8 k/20 k/40 kHz auto-select (linked to frequency range)
Maximum sampling rate 1 MS/s (simultaneous sampling of two channels)
Accuracy DC amplitude: ±0.4 %f.s. Zero-position: ±0.1 %f.s.
Zero-position -50 % to 150 %, 1 % step * With zero-adjustment function
Frequency characteristics DC to 400 kHz ±3 dB with AC coupling: 7 Hz to 400 kHz ±3 dB
Max. allowable input 400 V DC (upper voltage which when applied to between input pins does not damage them)
Max. rated voltage to earth 370 V AC, DC (upper voltage which when applied to input channel casing or between input channels does not damage them)

View Product Details

List Price: $1,779.00

In Stock:

View Payment Options

Recommended for you

Hioki 8938 - FFT Analog Unit

The Hioki 8938 is equipped with circuits for two independently usable input channels. Simply slide the 8938 into the HiCORDER Series for use. FFT Module with an anti-aliasing filter. Frequency range DC to 400kHz, sampling rate 1MS/s. Maximum input voltage 400VDC, 240Vrms.

Inspection and Maintenance:

Initial Inspection

When you receive the device, inspect it carefully to ensure that no damage occurred during shipping. If damage is evident, or if it fails to operate according to the specifications, contact your dealer or Hioki representative.

Preliminary Checks

Before using the device the first time, verify that it operates normally to ensure that the no damage occurred during stor- age or shipping. If you find any damage, contact your dealer or Hioki representative.
Before using the device, make sure that the insulation on the connection cords is undamaged and that no bare conductors are improperly exposed. Using the device in such conditions could cause an electric shock, so contact your dealer or Hioki representative for replacements.

Maintenance and Service

To clean the device, wipe it gently with a soft cloth moistened with water or mild detergent. Never use solvents such as benzene, alcohol, acetone, ether, ketones, thinners or gaso- line, as they can deform and discolor the case.
If the device seems to be malfunctioning, contact your dealer or Hioki representative.
Pack the device so that it will not sustain damage during shipping, and include a description of existing damage. We cannot accept responsibility for damage incurred during ship- ping.

Input	Number of channels:2 Connector:Insulated BNC * Input isolated from output, inter-channel isolation
Measurement ranges	5 mV to 20 V/division, 12 ranges, the measurement resolution is 1/80 of range AC voltage for possible measurement/display using the memory function:280 V rms * When attached to recorder where full-scale (f.s.) = 20 divisions 10 mV to 50 V/division, 12 ranges, the measurement resolution is 1/160 of range AC voltage for possible measurement/display using the memory function: 280 V rms * When attached to recorder where full-scale (f.s.) = 10 divisions Low-pass filter:5/500/5 k/100 kHz
Anti-aliasing filter	Cutoff frequency 20/40/80/200/400/800/2 k/4 k/8 k/20 k/40 kHz auto-select (linked to frequency range)
Maximum sampling rate	1 MS/s (simultaneous sampling of two channels)
Accuracy	DC amplitude:±0.4 %f.s. Zero-position:±0.1 %f.s.
Zero-position	-50 % to 150 %, 1 % step * With zero-adjustment function
Frequency characteristics	DC to 400 kHz ±3 dB with AC coupling:7 Hz to 400 kHz ±3 dB
Max. allowable input	400 V DC (upper voltage which when applied to between input pins does not damage them)
Max. rated voltage to earth	370 V AC, DC (upper voltage which when applied to input channel casing or between input channels does not damage them)
Accessories	None * The input cord is optional
