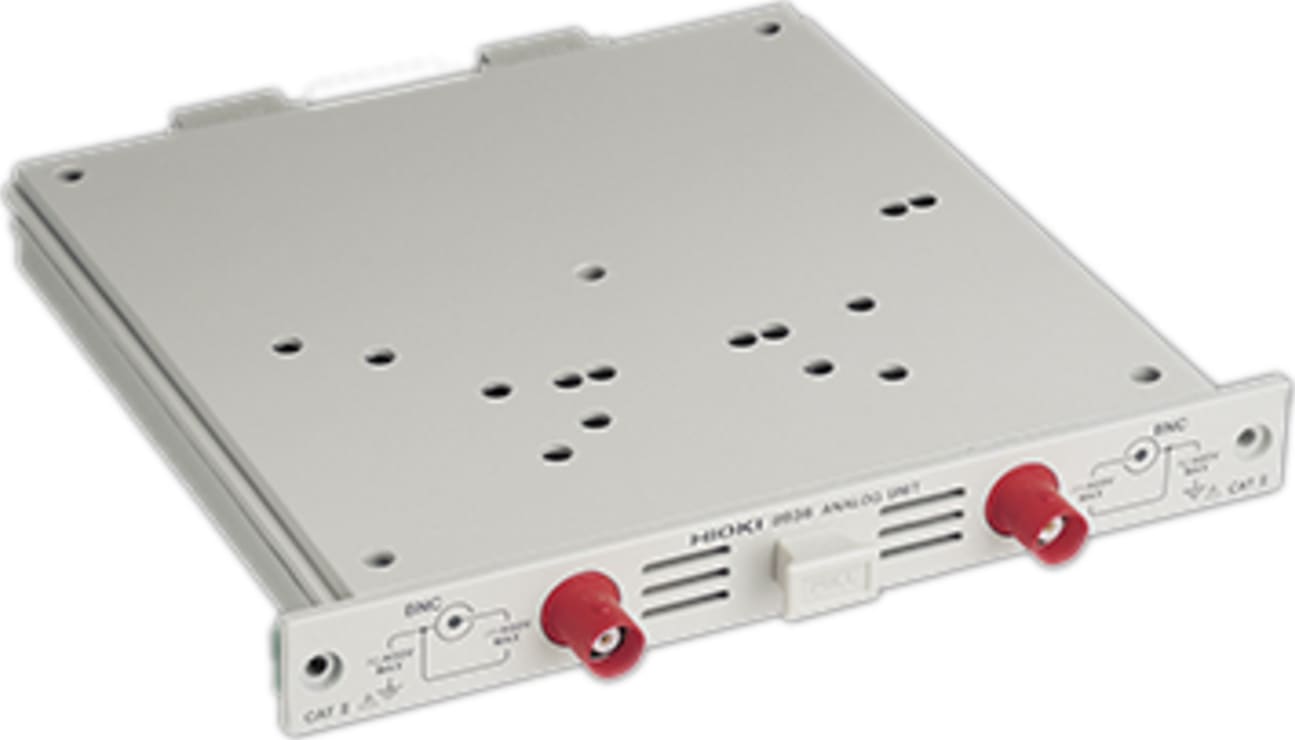

| Input |
Number of channels: 2
Connector: Insulated BNC
* Input isolated from output, inter-channel isolation |
| Measurement ranges |
5 mV to 20 V/division, 12 ranges, the measurement resolution is 1/80 of range
AC voltage for possible measurement/display using the memory function: 280 V rms
* When attached to recorder where full-scale (f.s.) = 20 divisions
10 mV to 50 V/division, 12 ranges, the measurement resolution is 1/160 of range
AC voltage for possible measurement/display using the memory function: 280 V rms
* When attached to recorder where full-scale (f.s.) = 10 divisions
Low-pass filter: 5/500/5 k/100 kHz |
| Maximum sampling rate |
1 MS/s (simultaneous sampling of two channels) |
| Accuracy |
DC amplitude: ±0.4 %f.s.
Zero-position: ±0.1 %f.s. |
| Zero-position |
-50 % to 150 %, 1 % step * With zero-adjustment function |
| Frequency characteristics |
DC to 400 kHz ±3 dB with AC coupling: 7 Hz to 400 kHz ±3 dB |
| Max. allowable input |
400 V DC (upper voltage which when applied to between input pins does not damage them) |
| Max. rated voltage to earth |
370 V AC, DC (upper voltage which when applied to input channel casing or between input channels does not damage them) |
| Accessories |
None * The input cord is optional |
