Measurement Ranges: | 10 mV to 50 V/division, 12 ranges (10 division f.s.), resolution: 1/160 of range AC voltage for possible measurement / display using the memory function : 280 V rms |
Frequency Characteristic: | DC to 400 kHz ?3 dB (used 8936 Analog Unit /option) |
Time Axis: | 100 ?s to 5 minutes/division, 20 settings (1 division =100 samples); external sampling (500 kS/s, minimum sampling period 2 ?s) |
Measurement Functions: | 1)Memory recorder, (2)Recorder, (3)RMS recorder (50/60 Hz or DC only) (Recorder & Memory/FFT functions to be added, Additional functions provided by the 9540-01 FUNCTION UP DISK) |
Number of Input Channels: | Analog (up to 4 channels) + logic (16 channels standard) *using 2 units of 8936 Analog Unit Analog (up to 8 channels) + logic (16 channels standard) *using 2 units of 8946 4ch Analog Unit |
Memory Capacity: | 4 M words/ch (using 1 channel) to 500 k words/ch (using 8 channels) |
Data Storage: | FD drive, Type III PC card slot (SRAM/flash ATA/hard disk card) |
Interfaces: | GP-IB: 9558 GP-IB CARD used RS-232C: 9557 RS-232C CARD used LAN: 9578 10BASE-T LAN CARD used |
Recording and Display: | 6.4-inch TFT color LCD, 110 mm (4.33 in) ? 30 m (98.4 ft), thermal paper roll |
Other Functions: | Waveform judgment function*, Waveform processing calculations, Waveform averaging; memory segmentation waveform parameter processing, logging (numerical printout), X-Y waveform plot, scaling, etc |

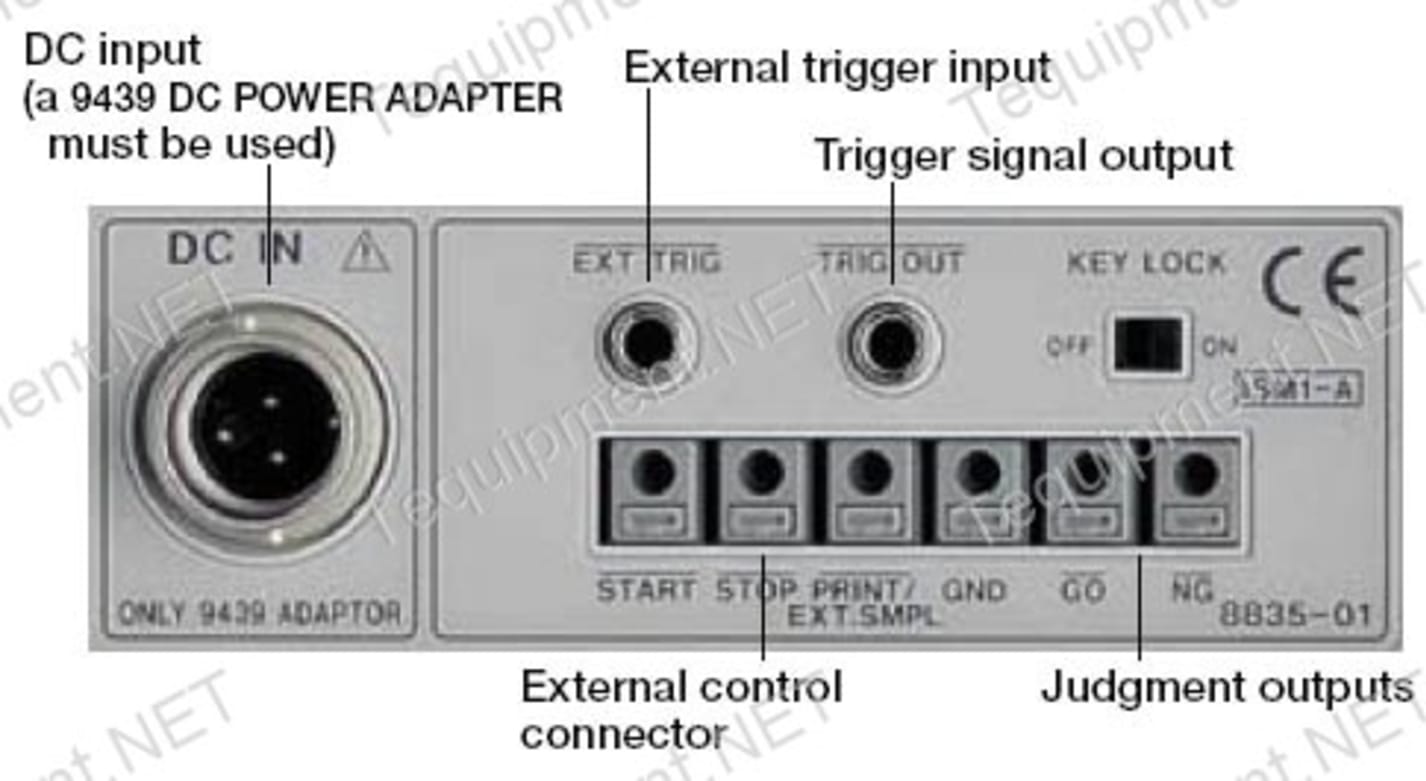

Power Supply: | 100 to 120 V AC or 200 to 240 V AC (50/60 Hz), 10 to 28 V DC using the 9439 DC POWER ADAPTER |
Dimensions: | 285 mm(11.22 in)W ? 220 mm(8.66 in)H ? 132 mm(5.2 in)D |
Accessories: | Power cord(1), Recording paper(1 roll), Dust cover(1), Roll paper attachment(2), PC card protector(1), Wave viewer software(1) |
