| Measurement Ranges: | 10 mV to 100 V/division, 13 ranges (10 division f.s.), resolution: 1/160 of range, AC voltage for possible measurement/ display using the memory function : 450 V rms |
| Frequency Characteristic: | DC to 50 kHz ?3 dB |
| Time Axis: | 200 ?s to 5 minutes/division, 19 settings (1 division =80 samples) |
| Measurement Functions: | (1)Memory recorder, (2)Recorder, (3)RMS recorder & memory (50/60 Hz or DC only) |
| Number of Input Channels: | Analog (2 channels standard) + logic (8 channels standard) *fixed input section |
| Memory Capacity: | 256 k words/ch (using CH1) to 128 k words/ch (using CH1 & CH2) |
| Data Storage: | Type II PC card slot (for SRAM cards up to 32 MB, flash ATA cards up to 528 MB) |
| Interfaces: | RS-232C (the optional 9612 RS-232C CABLE is required for connection to PC)
PC card: Commercially available PC card type fax modem (Please contact HIOKI for information on compatible fax modems) |
| Recording and Display: | 5.7-inch STN color LCD, 112 mm (4.4 in) ? 18 m (59.06 ft), thermal paper roll |
| Other Functions: | DMM function (voltage shown as numerals on the display), Scaling, Parameter calculations, Cursor readout, etc. |
| Power Supply: | 100 to 240V AC (50/60 Hz) with use the 9418-10 AC ADAPTER (option)
9447 BATTERY PACK (Continuous use 3 hours) (option)
LR6 (AA) ? 6 (Continuous use 1 hours) (LR6 batteries cannot be used with 8992 PRINTER UNIT) |
| Dimensions: | 203 mm(7.99 in)W ? 170 mm(6.69 in)H ? 52 mm(2.05 in)D
280 mm(11.02 in)W ? 170 mm(6.69 in)H ? 52 mm(2.05 in)D (With printer attached) |
| Weight: | 1.1 kg (38.8 oz)
1.5 kg (52.91 oz) (With printer attached) |

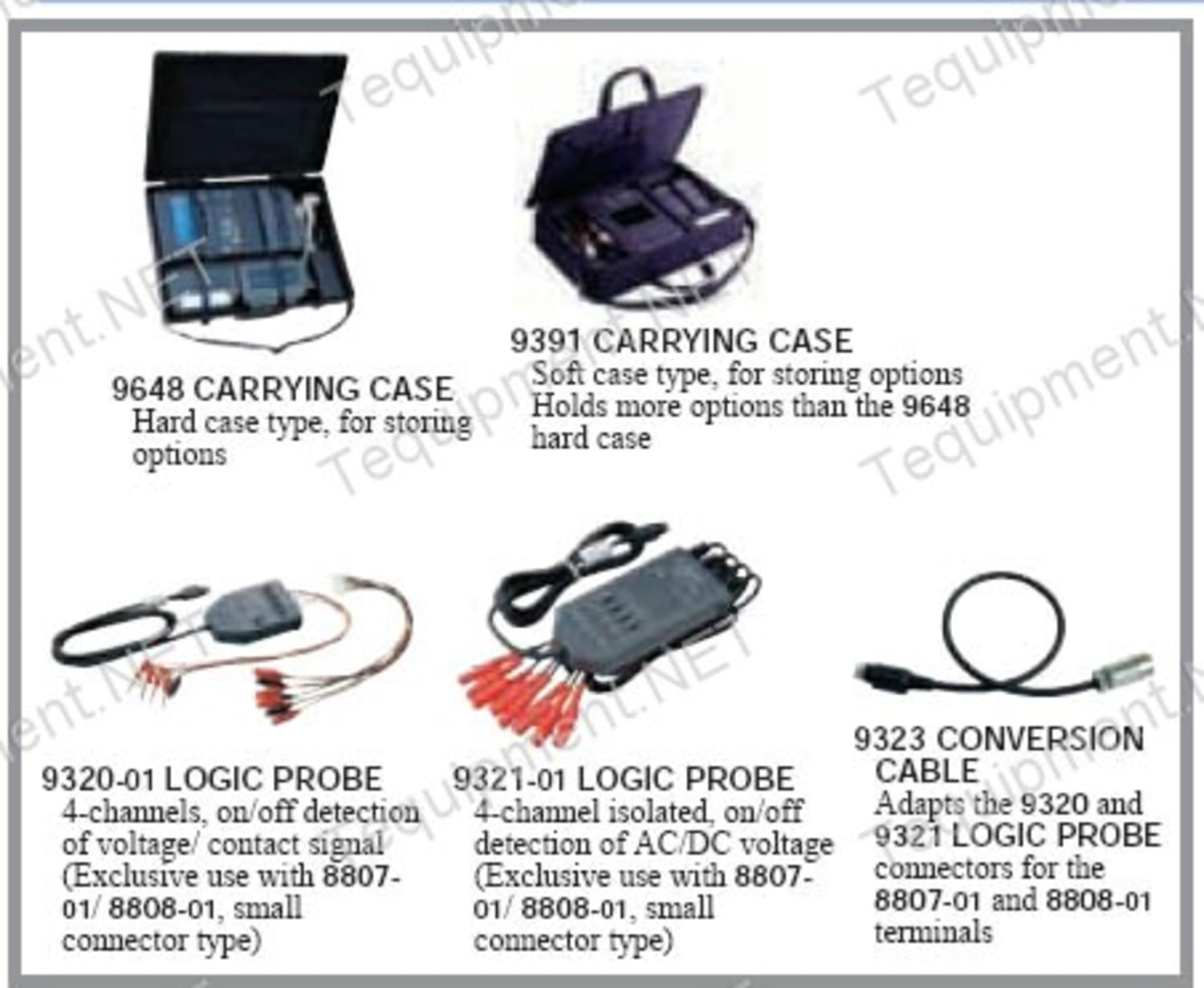

| Accessories: | LR6/AA alkaline batteries (6), alkaline battery box (1), shoulder belt (1), Wave viewer software (1) |
