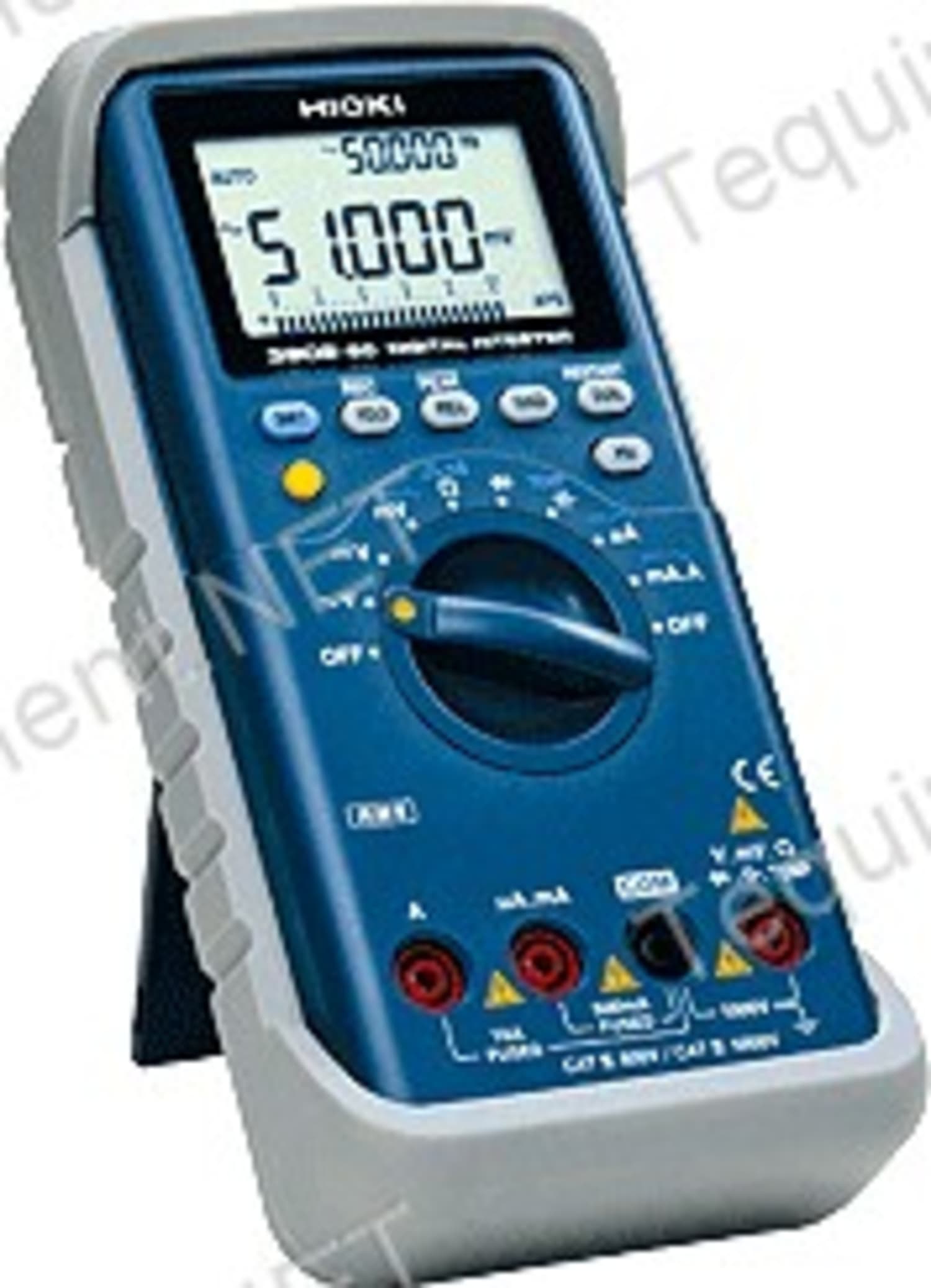

Basic Specifications |
|
AC measurement |
True RMS value measurement system |
|
Display |
|
Data display |
Primary display and secondary display: 4 1/2 characters |
|
Maximum count |
[51000], [15000] 1000 mV/V range, [99999] Hz function, [9999] C function |
|
Bar graph |
Scale display, 21 dot bar display. +/- polarity indication |
|
Measurement function/basic accuracy |
|
DC voltage |
51.000mV to 1000.0V |
|
Basic accuracy |
±0.03%rdg.±10dgt. |
|
AC voltage |
51.000mV to 1000.0V |
|
Basic accuracy |
±0.6%rdg.±25dgt. |
|
AC+DC voltage |
-- |
|
Basic accuracy |
-- |
|
DC current |
510.00µA to 10.000A |
|
Basic accuracy |
±0.2%rdg.±25dgt |
|
AC current |
510.00µA to 10.000A |
|
Basic accuracy |
±1%rdg.±25dgt |
|
AC+DC current |
-- |
|
Basic accuracy |
-- |
|
Resistance |
510.00Ω to 51.000MΩ, 510.00nS |
|
Basic accuracy |
±0.08%rdg.±5dgt |
|
Continuity |
Buzzer sounds for less than 1000 count in each range |
|
Diode |
Measured current: 1.00mA, open terminal voltage: 4.8V |
|
C (capacitance) |
9.999nF to 99.99mF |
|
Basic accuracy |
±1.5%rdg.±5dgt |
|
Frequency |
99.999Hz to 999.99kHz |
|
Frequency counter |
-- |
|
Basic accuracy |
±0.02%rdg.±3dgt. (less than 20MHz) |
|
Temperature (k) |
-200.0 to 1372.0°C |
|
Temperature (J) |
-- |
|
Duty ratio |
99.99% |
|
Pulse width |
510.00ms to 1999.9ms |
|
Pulse output |
-- |
|
Additional Functions/General Specifications |
|
Additional functions |
Autorange / Manual range / PC-compatibility (RS232C, USB) / Refresh hold / Trigger hold / Peak hold / Recording /4 – 20mA (0 – 20mA)% conversion display /dB decibel conversion display / Relative value (REL) display/ Terminal A improper connection warning / Display backlight / Auto power save / Battery life warning / Overload warning |
|
Sample rate |
3.75 times/s (V and, A measurement), 1.65 times/s (AC + DC measurement), 1.12 times/s (Hz and DUTY ratio measurement; [1Hz or more], pulse width measurement [1Hz or more]) , 7.5 times/s (Ωmeasurement) |
|
Max. input voltage |
V terminal ... DC 1000V/AC 1000Vrms (sin) or 107V Hz |
|
Max. input current |
A terminal ...Continuous to DC/AC 10A; up to DC/AC 20A within 30s µA ,mA terminal ... DC/AC 510mA |
|
Location / Temp. and humidity range for use |
Indoors, up to an altitude of 2000m/ 0°C to 50°C /up to 80%rh (no condensation) |
|
Power supply (operating time) |
6F22(006P, 9V Manganese) battery) ×1 (20 hours) or 6LR61(9V Alkaline) battery ×1 (50 hours) |
|
Dimensions and mass |
90mm (3.54") W×192mm (7.56") H×37mm (1.46") D mm (excluding protrusions)
100mm (3.94") W×202mm (7.95") H×57mm (2.24") Dmm (including holster)
/450g (15.9oz) (with battery)
680g (24.0oz) (with holster and battery) |
|
Applicable standards |
Safety: EN61010-1:2001 EN61010-031:2002
Pollution class 2
Measurement category CAT III 1000V, CAT IV 600V
Expected overvoltage 8000V
EMC: EN61326:1997 + A1: 1998 + A2:2001 |
|
Warranty period |
3 years (excludes measurement accuracy) |
|
Accessories |
Test Lead 3851-10 , holster (for main unit),battery (6LR61) × 1 (for monitor in main unit) |
