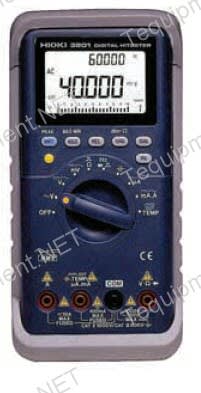

In addition to basic functions such as measuring AC/DC voltage and current, frequency, capacitance, resistance, diode checking, and continuity checking, the 3801 features functions such as an AC + DC mode, temperature measurement, and pulse output. DC voltage measurements are accurate to within ?0.06% rdg. ?3 dgt. (in the 4000 count mode), assuring accurate measurement for all types of electrical equipment checks. Display can also be switched to the high-resolution 40000-count mode.

Models 3801 to 3805 bear CE markings and conform to standards such as the IEC61010-1 international safety standard and EMC related standards. Further, these handy units have been designed with an emphasis on safety, and come equipped with a standard 600 V fast blow fuse in the current connector and a cushioned holster that provides protection against shock in the event of accidental droppage.

• AC+DC measurement function
• Peak hold function
• LCD panel with backlight
• Hz (frequency) [measurement range: 1 Hz to 10 MHz]
• Duty [measurement range: 0.1% to 99.9%]
• Pulse width [measurement range: 0.1 ms to 1999 ms]
• dBm [measurement range: -80.79 to 81.48 dBm]
• Temperature [meter measurement range: -40?C to 1372?C(-40 to 2502?F)]
• Pulse output [setting range: 0.5 Hz to 4800 Hz]
• Timer output [setting range: 1 s to 99.999 s]
