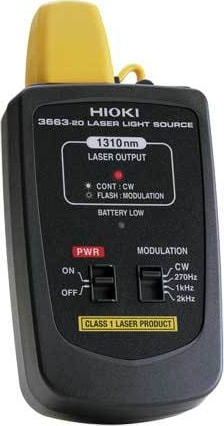

Hioki 3663-20 Laser Light Source

Name: Hioki 3663-20 Laser Light Source
Brand: Hioki
SKU: Hioki3663-20
Price: 1099.00 USD
Availability: InStock

0 reviews | Model: Hioki 3663-20

Compare

Laser Light Source (1310nm)

Compact size for easy handling
Continuous or modulated light output
Continuous wave(CW) output or 3 types of modulated light output (270 Hz, 1 kHz, 2 kHz ) can be selected
Output Wavelength: 1550 ±20 nm

View Product Details

List Price: $1,099.00

In Stock:

Recommended for you

Choose a Category

(0)

In Stock!

Add to Cart

Light Emitting Element:	Laser diode
Output Connector:	FC, SC (using optional connector adapter)
Fiber Type:	Single mode
Output Mode:	Continuous wave (CW) or modulated light (270 Hz, 1 kHz, 2 kHz)
Output Wavelength:	1550 ±20 nm
Spectrum Width:	5 nm max
Output Level:	FC, SC (using optional connector adapter)
Output Level Stability:	Within ±0.1 dB (temperature constant, 5 minutes) Within 1.0 dB p-p (ambient temperature 0 to 40°C, 8 hours)
Functions:	Battery check (indicator flashes when battery voltage drops)
Power Supply:	LR6(AA) alkaline battery × 2, 0.6 VA
Dimensions:	76 mm(3.00 in)W × 159 mm(6.26 in)H (including 36 mm cover) × 35 mm(1.38 in)D
Weight:	180g(6.35 oz) (without batteries)
Accessories:	Carrying Case (1), Hand Strap(1)

Fiber Optic Test Equipment/Light Sources Template
Style (Light Meters)	Hand Held
Display (Light Sources)	None
Mode Selection	Singlemode
Calibrated Wavelength	1310 nm
Transmission Mode	Continuous Wave, Modulated Wave
Light Source	FP LASER
Output Power	-6 dBm
Resolution (Light Meters)	2 dBm
Connector Style	FC, SC
Battery Capacity Display	Yes
Test Equipment General Attributes
Product Weight	180 GRAMS (0.397 LBS)
Product Height	35 MM (1.38 IN)
Product Length	76 MM (2.99 IN)
Product Width	159 MM (6.26 IN)
ECCN Number	3A992
Power Supply Voltage	Battery Powered
Country of Origin	Japan
