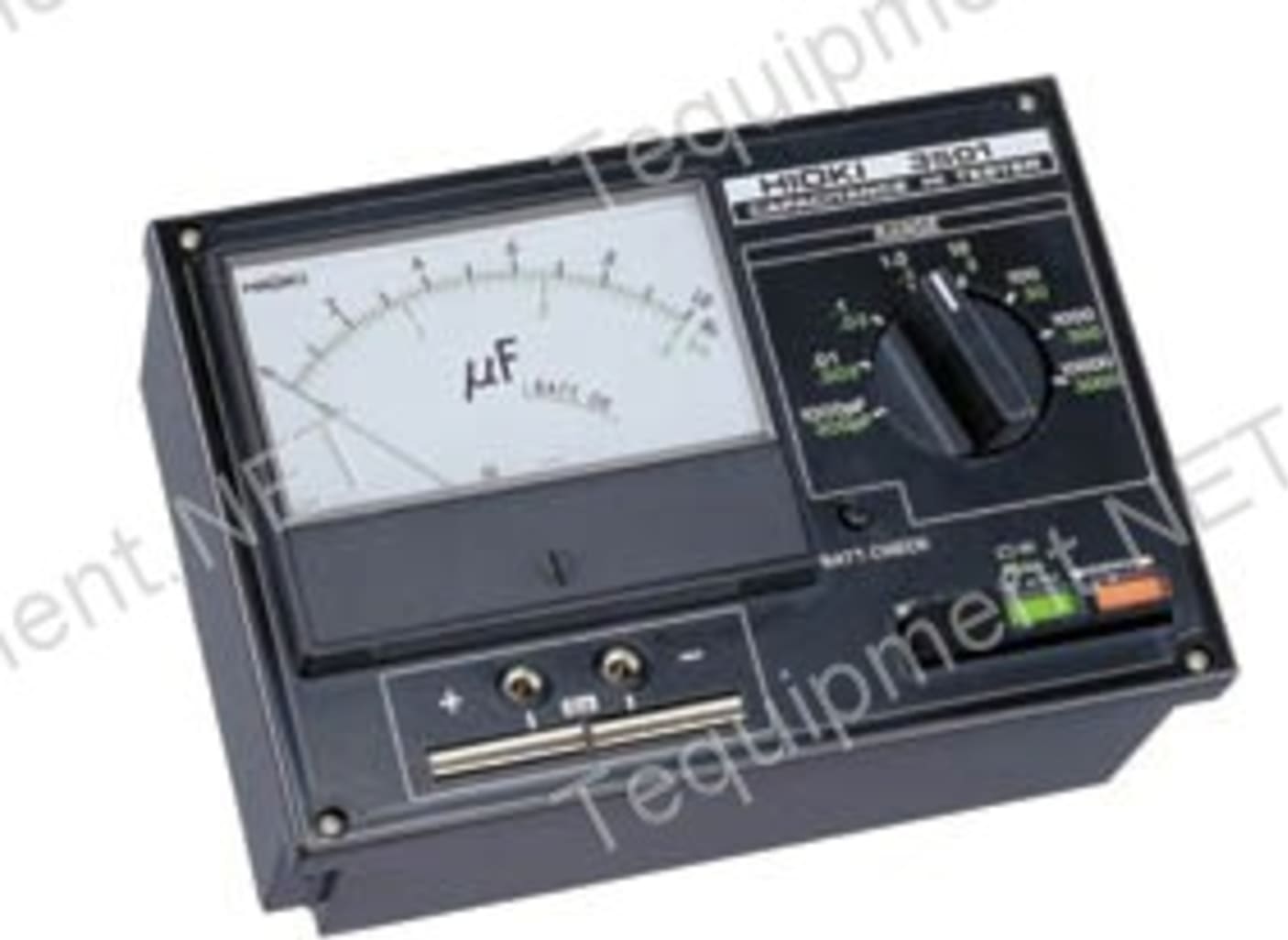

Hioki 3501 Capacitance HiTester

Name: Hioki 3501 Capacitance HiTester
Brand: Hioki
SKU: Hioki3501
Price: 360.00 USD
Availability: InStock

0 reviews | Model: Hioki 3501

Compare

Capacitance Hi-Tester

One-touch key operation
Different from conventional measurement techniques because it measures capacity with DC - to measure polar capacitors without bias
Two types of connection jigs to handle all sizes of capacitors

View Product Details

List Price: $360.00

In Stock:

Recommended for you

Measurement Items:	Capacitance
Measurement Ranges:	300 pF to 10,000 ?F full scale
Measurement Method:	DC charge, applied voltage 4 V DC max
Accuracy:	?2 % f.s. ?5 pF (300 pF, 1000 pF range) ?3 % f.s. (0.003 ?F to 10,000 ?F range)
Power Supply:	6F22(006P), 2 pieces, or AC adapter (12 V, 300 mA)
Dimensions:	185 mm(7.28 in)W ? 80 mm(3.15 in)H ? 130 mm(5.12 in)D
Weight:	680 g (21.2 oz)
Accessories:	9617 CLIP ON BASE(1), 9618 CLIP TYPE LEAD(1)
