| CPU | SH4 (internal 192 MHz, bus 64 MHz) |
| Main Memory | SDRAM 32 MByte |
| Flash Memory | 1 MByte ( for BIOS) |
| Static Memory | 256 KByte (Battery backup is available.) |
| Calendar/Timer | RTC (Calendars through 2099) |

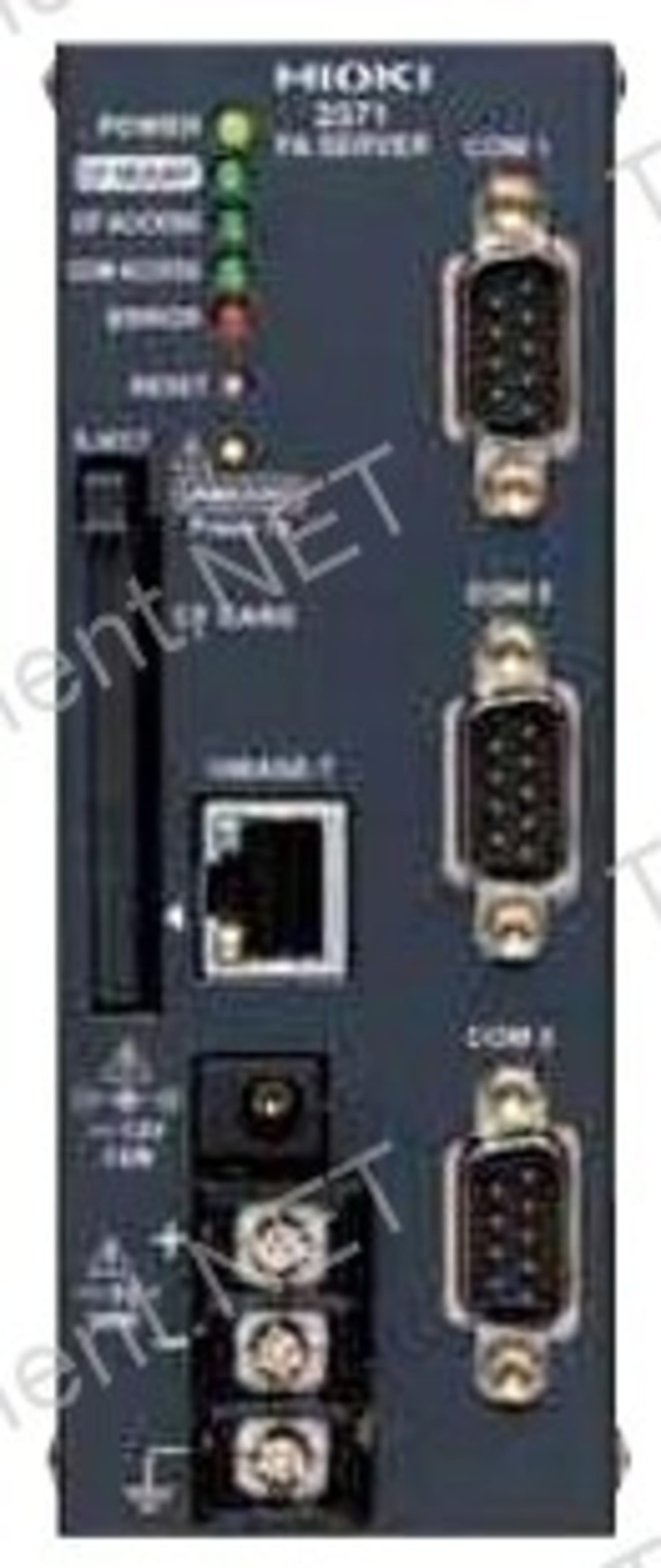

| Display | Five LED:
Power: green
CF MOUNT: green
CF ACCESS: green
COM ACCESS: green
ERROR: red
|
| Switch | Two switches:
RESET
UNMOUNT |
| PC CARD interface (for OS) |
| Slot | CF Type I x 1 |
| Available Card | Compact Flash |
| Storage Capacity | 128 MB to 512 MB |
| Data Format | ext3 (File format for Linux) |
| PC CARD interface (for saving data) |
| Slot | CF Type I, II x 1 |
| Available Card | Compact Flash |
| Storage Capacity | Up to 528 MB |
| Data Format | MS-DOS format (FAT16) |
| RS-232C interface |
| Type | RS-232C |
| Connector | D-sub9 pin connector X 3 |
| Transmission Rate | 1200bps, 2400bps, 4800bps, 9600bps, 19200bps, 38400bps |
| LAN interface |
| Connector | 10BASE-T RJ-45 connector x 1 |
| Method of Communication | Ethernet, TCP/IP |
| 2300 Series Control | - ControlThe following controls of the 2300 Series are available:
- Measurement condition setting
- Start/end of measurement
- Acquisition of alarm information
|
| Totaling of Daily/Monthly Reports | After acquiring the measurement data from the 2300 Series, saves the data on the CF card, and obtains daily and monthly totals. |
| Management of Alarm Log | Acquires information about alarms that occurred with the 2300 Series and creates a file of log data. |
| Clock Adjustment | Adjusts the clock of the 2300 Series. |
| Actual Time Management | Time management using PC application |
| Power Outage Protection | Any data not written to the CF card will be restored. |
| Backup | Lithium-manganese secondary battery is used.
Battery life: Approx. 15 years (Reference value: Provided battery is charged for 5 days and power outage lasts no longer than 2 days) |
| Backup time | Approx. 10 days (Reference value) |
| Clock Accuracy | ±30 ppm (at 0 to 50°C) (at 32 to 122°F) |
| Rated Supply Voltage | 5 V±0.5 VDC, 12 V±1.2 VDC |
| Maximum Rated Power | 13 W |
| Dimensions | Approx. 50W ×135H ×98D mm (1.97"W ×5.31"H ×3.86"D) (excluding projections) |
| Mass | Approx. 540 g (19.0 oz.) |
| Accessories | Ferrite clamp: 1
Instruction manual: 1 |
| Option | 9762 SERVER OS
9763 SMART COMMUNICATOR
9418-15 AC ADAPTER
(SA130A-1225V-S, SINO-AMERICAN)
9642 LAN CABLE (with straight, cross connector, 5 m)
9637 RS-232C CABLE (9pin - 9pin cross, 1.8 m)
9626 PC CARD 32M*
9627 PC CARD 64M*
9726 PC CARD 128M*
9727 PC CARD 256M*
9728 PC CARD 512M*
2351-20 AIR MODULE
2352-20 WIRE MODULE
2361-20 AC POWER MODULE
2362-20 DC POWER MODULE
2391-01 MODULE BASE (for 3 sets)
9767 MOUNTING FIXTURE
* Sets of PCMCIA adapter and CF CARD |
| Operating Temperature and Humidity | 0 to 50°C (32 to 122°F), 80%RH or less (non-condensation) |
| Storage Temperature and Humidity | -10 to 50°C (14 to 122°F), 80%RH or less (non-condensation) |
| Operating Environment | Indoors, altitude up to 2000 m (6562-ft.) |
| Applicable Standards | Safety EN61010-1:2001
Pollution degree 2
EMC EN61326:1997+A1:1998+A2:2001
CLASS A
EN61000-3-2:2000
EN61000-3-3:1995+A1:2001
|
