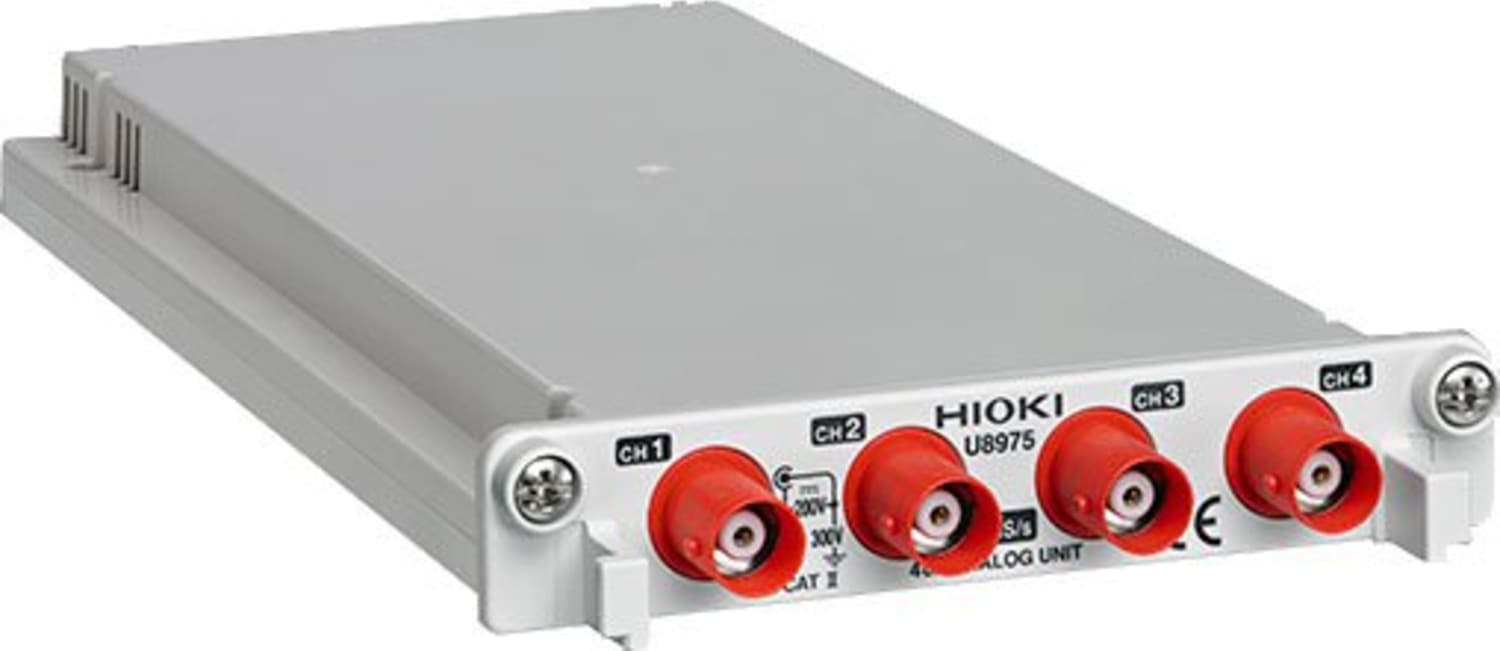

Hioki U8975 4 Channel Analog Unit, 5 MS/s (DC to 2 MHz)

Name: Hioki U8975 4 Channel Analog Unit, 5 MS/s (DC to 2 MHz)
Brand: Hioki
SKU: HiokiU8975
Price: 2068.00 USD
Availability: InStock

0 reviews | Model: Hioki U8975

Compare

4 Ch. Analog Unit for MR6000

4 channel Analog Unit
Voltage input 5 MS/s (DC to 2 MHz)

View Product Details

Your Price: $2,068.00

Sign-in for GSA and EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Hioki U8975 4 Ch. Analog Unit for MR6000	Hioki 8968 High Resolution Unit for MR8847	Hioki 8967 Temperature / Voltage Unit for MR8847	Hioki 8973 Measure logic signal, such as the ON/OFF of relays. For MR6000, MR8847A, MR8827 ...	Hioki 8970 Frequency, Rotation, and Pulse Measurement- For MR6000, MR8847A, MR8827, and si ...	Hioki 8971 Instantly measure wide band current waveforms. For MR6000, MR8847A, MR8827, and ...	Hioki 8972 Instantly measure waveforms and RMS graphs from DC to AC, isolated input. For M ...	Hioki 8966 Analog Unit for MR8847	Hioki MR8990 DVM Module (for MR8740/41, MR8847A)	Hioki U8976 High Speed Analog Unit for MR6000	Hioki U8969 Strain Unit for MR6000	Hioki U8974 High Voltage Unit (for MR8847A)
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Hioki U8975 Accessories

Choose a Category

for the Hioki U8975

Hioki L9217-01 Connection Cord (BNC to BNC, 3 m)

Catalog: L9217-01

(0)

In Stock!

Add to Cart

Hioki L9217-02 Connection Cord (BNC-BNC, 10 m)

Catalog: L9217-02

(0)

In Stock!

Add to Cart

Hioki CT6872 50A DC to 10 MHz Current Sensor 3m

Catalog: CT6872

(0)

In Stock!

Add to Cart

Hioki CT6872-01 50A DC to 10 MHz Current Sensor 10m

Catalog: CT6872-01

(0)

In Stock!

Add to Cart

Hioki CT6873 200A DC to 10 MHz Current Sensor 3m

Catalog: CT6873

(0)

In Stock!

Add to Cart

Hioki CT6873-01 200A DC to 10 MHz Current Sensor 10m

Catalog: CT6873-01

(0)

In Stock!

Add to Cart

Hioki CT6875A 500A DC to 2 MHz Current Sensor 3m

Catalog: CT6875A

(0)

In Stock!

Add to Cart

Hioki CT6875A-1 500A DC to 1.5 MHz Current Sensor 10m

Catalog: CT6875A-1

(0)

In Stock!

Add to Cart

Hioki CT6876A 1000A DC to 1.5 MHz Current Sensor 3m

Catalog: CT6876A

(0)

In Stock!

Add to Cart

Hioki CT6876A-1 1000A DC to 1.2 MHz Current Sensor 10m

Catalog: CT6876A-1

(0)

In Stock!

Add to Cart

Hioki CT6877A 2000A DC to 1 MHz Current Sensor 3m

Catalog: CT6877A

(0)

In Stock!

Add to Cart

Hioki CT6877A-1 2000A DC to 1 MHz Current Sensor 10m

Catalog: CT6877A-1

(0)

In Stock!

Add to Cart

Hioki CT6904A 500A DC to 4 MHz Current Sensor 3m

Catalog: CT6904A

(0)

In Stock!

Add to Cart

Hioki CT6844A AC/DC Current Probe (500 A AC/DC / DC to 200 kHz / 20 mm opening)

Catalog: CT6844A

(0)

In Stock!

Add to Cart

Hioki CT6845A AC/DC Current Probe, 200 kHz, 500 A

Catalog: CT6845A

(0)

In Stock!

Add to Cart

Hioki CT6846A AC/DC Current Probe, 100 kHz, 1000 A

Catalog: CT6846A

(0)

In Stock!

Add to Cart

Hioki 4 Ch. Analog Unit U8975 General Specifications
Measurement functions	No. of channels: 4, for voltage measurement
Input terminals	Isolated BNC connector (input impedance 1 MO, input capacitance 30 pF) Max. rated voltage to ground: 300 V AC, DC (with input isolated from the unit, the maximum voltage that can be applied between input channel and chassis and between input channels without damage)
Measurement range	4, 10, 20, 40, 100, 200 V f.s., 6 ranges AC voltage for possible measurement/display: 140 V rms Low-pass filter: 5/500/5 k/200 kHz
Measurement resolution	1/32,000 of measurement range (using 16-bit A/D conversion)
Maximum sampling rate	5 MS/s (simultaneous sampling in 4 channels)
Measurement accuracy	±0.1% f.s. (with filter 5 Hz, zero position accuracy included)
Frequency characteristics	DC to 2 MHz -3 dB
Input coupling	DC/GND
Maximum input voltage	200 V DC (the maximum voltage that can be applied across input pins without damage)
Dimensions	approx. 106 mm (4.17 in) W × 19.8 mm (0.78 in) H × 196.5 mm (7.74 in) D
Weight	approx. 250 g (8.8 oz)
