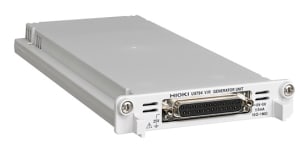

Hioki U8794 VIR Generator Unit

Name: Hioki U8794 VIR Generator Unit
Brand: Hioki
SKU: HiokiU8794
Price: 3685.00 USD
Availability: InStock

0 reviews | Model: Hioki U8794

Compare

VIR Generator Unit. Generation unit can be used for various simulation tests instead of sensor output. For the MR8740-50.

As an inspection device of the ECU, it is ideal for generating simulation signals of various sensors, inspection of electronic parts, equipment maintenance
DC voltage, DC current, and resistance simulation output possible
In resistance generation, the voltage to be connected is measured, the output current is calculated from the set resistance value, and simulated output
Used in combination with Memory HiCorder series MR8740T (not available in other models)
Insulation between each output channel and between channel and chassis

View Product Details

Your Price: $3,685.00

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Recommended for you

As an inspection device of the ECU, it is ideal for generating simulation signals of various sensors, inspection of electronic parts, equipment maintenance
DC voltage, DC current, and resistance simulation output possible

Generation unit can be used for various simulation tests instead of sensor output.

General Specifications
Output terminal	Number of channels: 8 (each channel is isolated), Connector: 25-pin D-sub Max. rated voltage to earth: 25 V
Output items	DC voltage, DC current, resistance (simulated output)
Output range	DC voltage: -0.100 0 V to +5.300 0 V (setting resolution: 0.1 mV) DC current: 5 mA range: -5.000 0 mA to +5.000 0 mA, Setting resolution: 0.1 μA 1 mA range: -1.000 00 mA to +1.000 00 mA, Setting resolution: 0.01 μA 250 μA range: -250. 00 μA to +250.00 μA, Setting resolution: 0.01 μA 50 μA range: -50. 000 μA to +50. 000 μA, Setting resolution: 0.001 μA Resistance: 10 Ω to 1 MΩ, Setting resolution: 6 digits
Output accuracy	DC voltage: 5 V range, ±0.035% of setting ± 800 μV DC current: 5 mA range: ±0.050% of setting ± 4.0 μA 1 mA range: ±0.050% of setting ± 800 nA 250 μA range: ±0.050% of setting ± 200 nA 50 μA range: ±0.050% of setting ± 40 nA
Other	Self diagnostic, switch output terminals, estimate target connection, cancel offset
Dimensions and mass	106 mm (4.17 in) W × 19.8 mm (0.78 in) H × 196.5 mm (7.74 in) D, 280 g (9.9 oz)
Accessories	None
