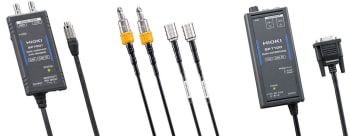

Hioki SP7002-90 Non-Contact CAN Sensor (1 x SP7002, 1 x SP7100, 1 x SP9200)

Name: Hioki SP7002-90 Non-Contact CAN Sensor (1 x SP7002, 1 x SP7100, 1 x SP9200)
Brand: Hioki
SKU: HiokiSP7002-90
Price: 2585.00 USD
Availability: InStock

0 reviews | Model: Hioki SP7002-90

Compare

Non-Contact CAN Sensor (1 x SP7002, 1 x SP7100, 1 x SP9200)

Non-Contact CAN Sensor (1 x SP7002, 1 x SP7100, 1 x SP9200)
Acquire CAN data immediately, simply by hooking probes to the cables
Eliminate concerns by using non-contact sensing technology
Use in a diverse array of development and evaluation applications that demand reliability

View Product Details

Your Price: $2,585.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Items in This Series



Product	Hioki SP7002-90 Non-Contact CAN Sensor (1 x SP7002, 1 x SP7100, 1 x SP9200)	Hioki SP7100 CAN Interface	Hioki SP7002 Non-Contact CAN Sensor	Hioki SP7001-90 Non-Contact CAN Sensor (1 x SP7001, 1 x SP7100, 1 x SP9200)	Hioki SP7001 Non-Contact CAN Sensor	Hioki SP7001-95 Non-Contact CAN Sensor (1 x SP7001, 1 x SP7100, 1 x SP9200)	Hioki SP7150 CAN Interface
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Hioki SP7002-90 Accessories

Choose a Category

for the Hioki SP7002-90

Hioki Z1008 AC Adapter for LR8410-20, LR8510, LR8511

Catalog: Z1008

(0)

In Stock!

Add to Cart

Hioki C1013 Carrying Case for SP7001, SP7002, SP7100, SP9200

Catalog: C1013

(0)

In Stock!

Add to Cart

Hioki SP7001 Non-Contact CAN Sensor

Catalog: SP7001

(0)

In Stock!

Add to Cart

Hioki SP7002 Non-Contact CAN Sensor

Catalog: SP7002

(0)

In Stock!

Add to Cart

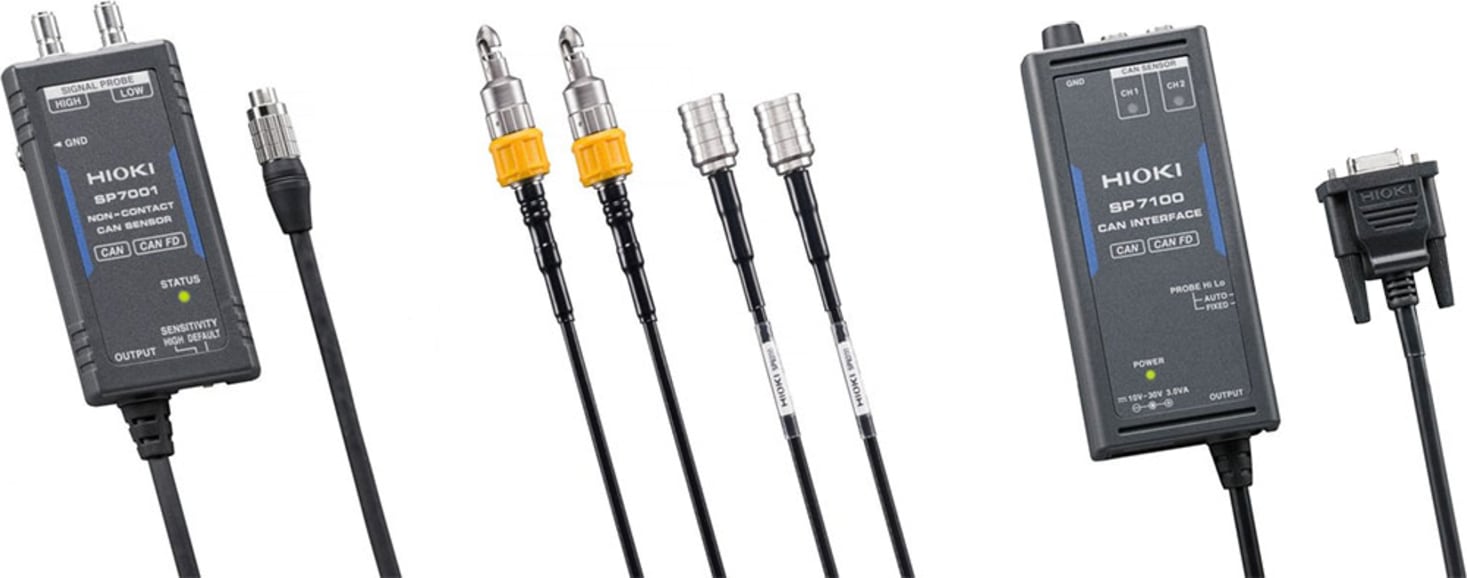

Hioki SP7002-90 Non-Contact CAN Sensor

Acquire CAN data immediately, simply by hooking probes to the cables
Eliminate concerns by using non-contact sensing technology
Use in a diverse array of development and evaluation applications that demand reliability

The SP7001 and SP7002 are CAN and CAN FD signal sensors that use non-contact technology to accurately capture CAN bus signals necessary for vehicle and next generation equipment evaluation and development. Improve testing productivity and efficiency by eliminating the need to peel away cable insulation or use a sub-harness that is traditionally required to obtain signals.

General Specifications
Detection method	Capacitive-coupled signal detection *No bare-wire connections
Detectable cables	AVS/AVSS-compliant cables, External diameter: 1.2 mm (0.05 in) to 2.0 mm (0.08 in)
Number of channels	2 (SP7100)
Compatible communications speeds	SP7001, SP7002: CAN 125 kbit/s to 1 Mbit/s SP7001: CAN FD 125 kbit/s to 3 Mbit/s
Total delay time	130 ns (typical)
CAN terminal resistance	60 Ω (typical), built-in
Signal output connector	D-sub 9-pin female (CH1, CH2)
Operating temperature, humidity	Temperature: -40 °C to 85 °C (-40 °F to 185 °F) Humidity: -40 °C to 60 °C (-40 °F to 140 °F), 80% RH or less (with no condensation), 60 °C to 85 °C (140 °F to 185 °F), 60% RH or less (with no condensation)
Power supply	(1) AC Adapter Z1008 (100 V to 240 V AC), rated power: 8 VA (including AC adapter) (2) External power supply (10 V to 30 V DC), rated power: 3 VA
Dimensions and mass	SP7001, SP7002: 44 mm (1.73 in) W × 85 mm (3.35 in) H × 20 mm (0.79 in) D, 180 g (6.3 oz), Cable length: 2.5 m (8.20 ft) SP7100: 55 mm (2.17 in) W × 120 mm (4.72 in) H × 25 mm (0.98 in) D, 130 g (4.6 oz), Cable length: 0.3 m (0.98 ft) SP9200: Probe: φ 11.6 mm (0.46 in) × 33.7 mm (1.33 in) H, Guard hook: φ 5 mm (0.20 in) × 11.8 mm (0.46 in) H, 26 g, Cable length: 0.5 m (1.64 ft)

Tech Specs

Test Equipment General Attributes
Country of Origin	Japan
