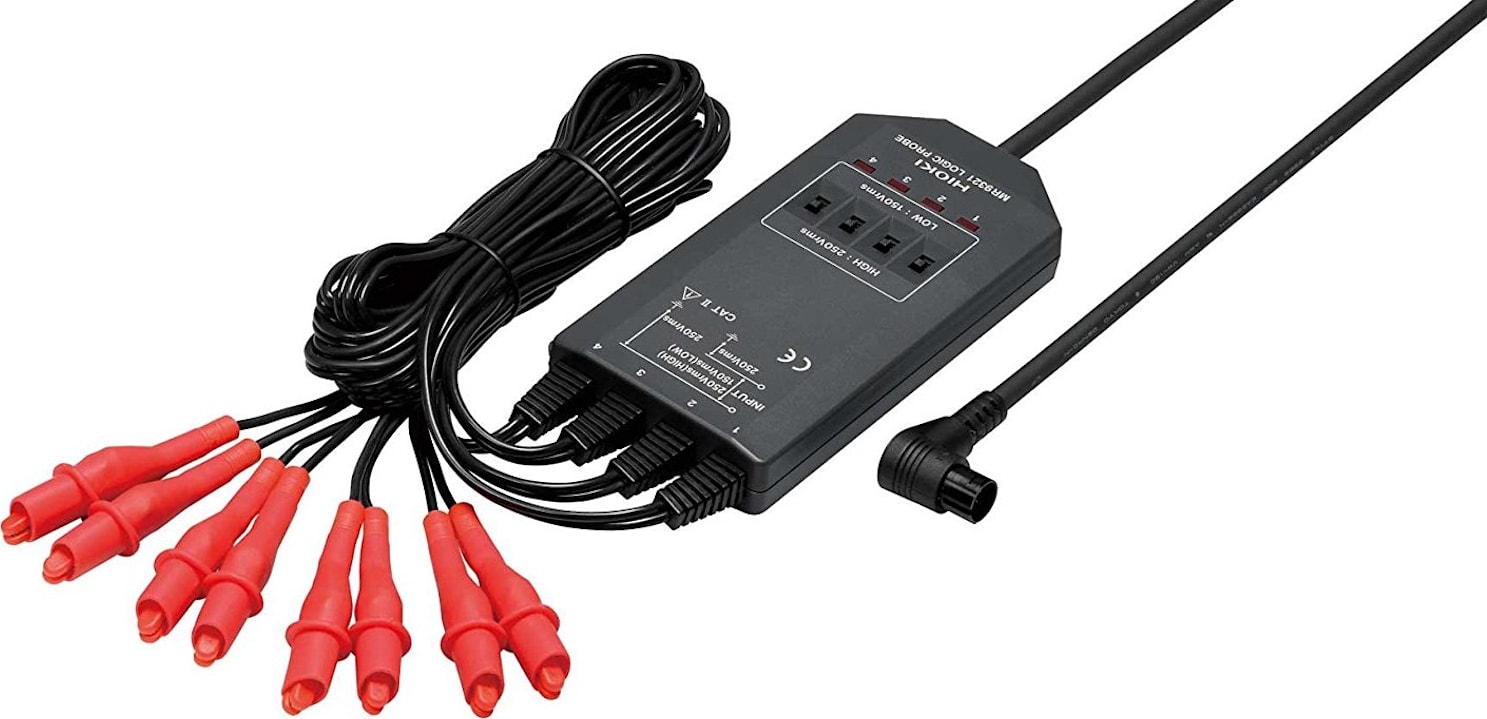

Hioki MR9321 Logic Probe for 8860/8861, MR8847, MR8880

Name: Hioki MR9321 Logic Probe for 8860/8861, MR8847, MR8880
Brand: Hioki
SKU: HiokiMR9321
Price: 450.00 USD
Availability: InStock

0 reviews | Model: Hioki MR9321

Compare

Logic Probe for 8860/8861, MR8847, MR8880

Logic Probe
For 8860/8861, MR8847, MR8880
4 isolated channels in a single probe
Detect the ON/OFF status of AC100V/200V as well as DC24V signals
Also convenient for detecting sudden AC power line interruptions
High speed response of 1ms rise and 2ms drop
MR9321-01 features a miniature connector, and MR9321 features a larger connector for legacy products

View Product Details

List Price: $450.00

In Stock:

View Payment Options

Recommended for you

Logic Probe for 8860/8861, MR8847, MR8880

Detect AC/DC voltage with Memory HiCorders

The MR9321-01 and MR9321 are 4-channel logic probes used to detect the presence of AC/DC voltage with Hioki Memory HiCorders.

Connects to the logic input terminals of Hioki Memory HiCorders. Check the size of the terminal before purchase.

	MR9321-01	MR9321
Function	Detection of AC or DC relay drive signal for High/Low state recording Can also be used for power line interruption detection
Input	4 channels (isolated between unit and channels), HIGH/LOW range switching Input resistance: 100 kΩ or higher (HIGH range), 30 kΩ or higher (LOW range)
Output (H) detection	170 to 250 V AC, ±DC 70 to 250 V (HIGH range) 60 to 150 V AC, ±DC 20 to 150 V (LOW range)
Output (L) detection	0 to 30 V AC, ±DC 0 to 43 V (HIGH range) 0 to 10 V AC, ±DC 0 to 15 V (LOW range)
Response time	Rising edge 1 ms max., falling edge 3 ms max. (with HIGH range at 200 V DC, LOW range at 100 V DC)
Max. allowable input	250 Vrms (HIGH range), 150 Vrms (LOW range) (the maximum voltage that can be applied across input pins without damage)
Dimensions and mass	62 mm (2.44 in)W × 128 mm (5.04 in)H × 20 mm (0.79 in)D, 300 g (10.6 oz), Main unit cable 1.5 m (4.92 ft), input section cable 1 m (3.28 ft)	62 mm (2.44 in)W × 128 mm (5.04 in)H × 20 mm (0.79 in)D, 320 g (11.3 oz), Main unit cable 1.5 m (4.92 ft), input section cable 1 m (3.28 ft)
Accessories	Carrying case ×1, Instruction Manual ×1

Tech Specs

Test Equipment General Attributes
Unique Features	4 Ch Logic Probe AC/DC Voltage (relay) Large Connector
Product Height	2.75 IN
Product Length	9.15 IN
Product Width	5.00 IN
Country of Origin	Japan
Shipping Height	2.75 IN
Shipping Length	9.15 IN
Shipping Width	5.00 IN
