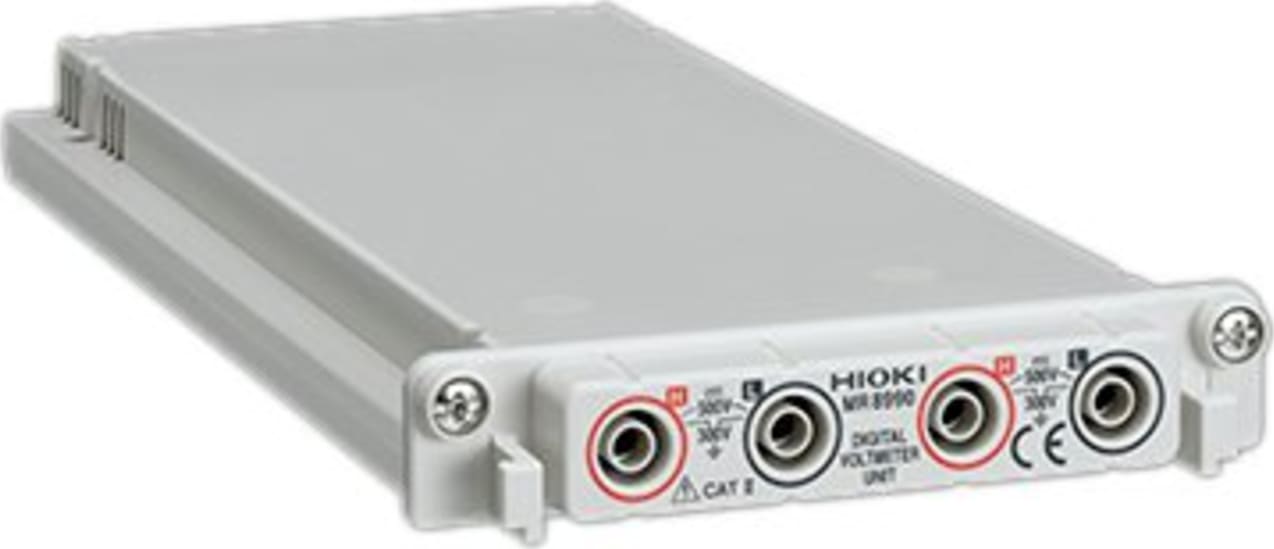

Hioki MR8990 DVM Module (for MR8740/41, MR8847A)

Name: Hioki MR8990 DVM Module (for MR8740/41, MR8847A)
Brand: Hioki
SKU: HiokiMR8990
Price: 1865.00 USD
Availability: InStock

0 reviews | UPC: 638317218957 | Model: Hioki MR8990

Compare

DVM Module (for MR8740/41, MR8847A)

MR8990 DVM Module
Use the DVM Unit MR8990 to measure DC voltages on 2 channels
High-precision measurement for applications such as investigating minute voltage fluctuations in sensor output
For use with the Memory HiCorder (MR8741/8740, MR8827 and MR8847A only)
Unlike standard multi-channel scan-type loggers, these instruments can perform simultaneous sampling
High accuracy of ±0.01 % and super-high 1.2 million-count resolution
High-speed sampling at 500 samples/s
Isolated input (channel-to-channel and channel-to-chassis: max. rated voltag to earth of 300 V AC/DC)

View Product Details

Your Price: $1,865.00

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options



Product	Hioki MR8990 DVM Module (for MR8740/41, MR8847A)	Hioki 8968 High Resolution Unit for MR8847	Hioki 8967 Temperature / Voltage Unit for MR8847	Hioki 8973 Measure logic signal, such as the ON/OFF of relays. For MR6000, MR8847A, MR8827 ...	Hioki 8970 Frequency, Rotation, and Pulse Measurement- For MR6000, MR8847A, MR8827, and si ...	Hioki 8971 Instantly measure wide band current waveforms. For MR6000, MR8847A, MR8827, and ...	Hioki 8972 Instantly measure waveforms and RMS graphs from DC to AC, isolated input. For M ...	Hioki 8966 Analog Unit for MR8847	Hioki U8975 4 Ch. Analog Unit for MR6000	Hioki U8976 High Speed Analog Unit for MR6000	Hioki U8969 Strain Unit for MR6000	Hioki U8974 High Voltage Unit (for MR8847A)
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Choose a Category

(0)

In Stock!

Add to Cart

(0)

In Stock!

Add to Cart

Use the DVM Unit MR8990 to measure DC voltages on 2 channels
High accuracy of ±0.01 % and super-high 1.2 million-count resolution
High-speed sampling at 500 samples/s
Isolated input (channel-to-channel and channel-to-chassis: max. rated voltag to earth of 300 V AC/DC)

High-precision measurement for applications such as investigating minute voltage fluctuations in sensor output.

High accuracy of ±0.01 % and super-high 1.2 million-count resolution.

Hioki DIGITAL VOLTMETER UNIT MR8990 General Specifications
Measurement functions	Number of channels: 2, for DC voltage measurement
Input connectors	Banana input connectors (Input resistance: 100 MΩ or higher with 100 mV f.s. to 10 V f.s. range, otherwise 10 MΩ)
Max. rated voltage to earth	300 V AC or DC (with input isolated from the main unit, the maximum voltage that can be applied between input channel and chassis, and between input channels without damage)
Measurement ranges	100 mV f.s. (5 mV/div): -120.0000 mV to 120.0000 mV, 0.1 μV resolution to 1000 V f.s. (50 V/div): -500.000 V to 500.000 V, 1 mV resolution, 5 ranges
Measurement resolution	1/50 000 of measurement range (using 24 bit ΔΣ modulation A/D)
Integration time	20 ms × NPLC (during 50 Hz), 16.67 ms × NPLC (during 60 Hz) NPLC: 0.1 to 0.9, 1 to 9, 10 to 100 settings
Response time	2 ms + 2 × integration time or less (rise - f.s. → + f.s., fall + f.s. → - f.s.)
Basic measurement accuracy	±0.01% rdg. ±0.0025% f.s. (at range of 1000 mV f.s.)
Maximum input voltage	500 V DC (maximum voltage that can be applied between input connectors without damage)
Dimensions	106 (4.17 in) W ×19.8 (0.78)H × 196.5 (7.74 in)D mm,
Weight	260 g (8.8 oz)
