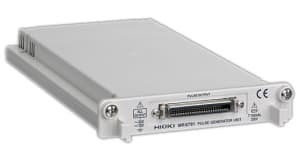

Hioki MR8791 Pulse Generator Unit (for MR8847A)

Name: Hioki MR8791 Pulse Generator Unit (for MR8847A)
Brand: Hioki
SKU: HiokiMR8791
Price: 1612.00 USD
Availability: InStock

0 reviews | UPC: 638317218919 | Model: Hioki MR8791

Compare

Pulse Generator Unit (for MR8847A)

MR8791 Pulse Generator Unit
Output pulse waves up to 8 channels per unit
For use with Hioki Memory Hicorder series (cannot use with 8847 or MR8847)
Isolated between unit and output (Not isolated between each channel (common ground))

View Product Details

Your Price: $1,612.00

Sign-in for GSA and EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Hioki MR8791 - Pulse Generator Unit (for MR8847A)

MR8791 Pulse Generator Unit
Output pulse waves up to 8 channels per unit
For use with Hioki Memory Hicorder series (cannot use with 8847 or MR8847)
Isolated between unit and output (Not isolated between each channel (common ground))

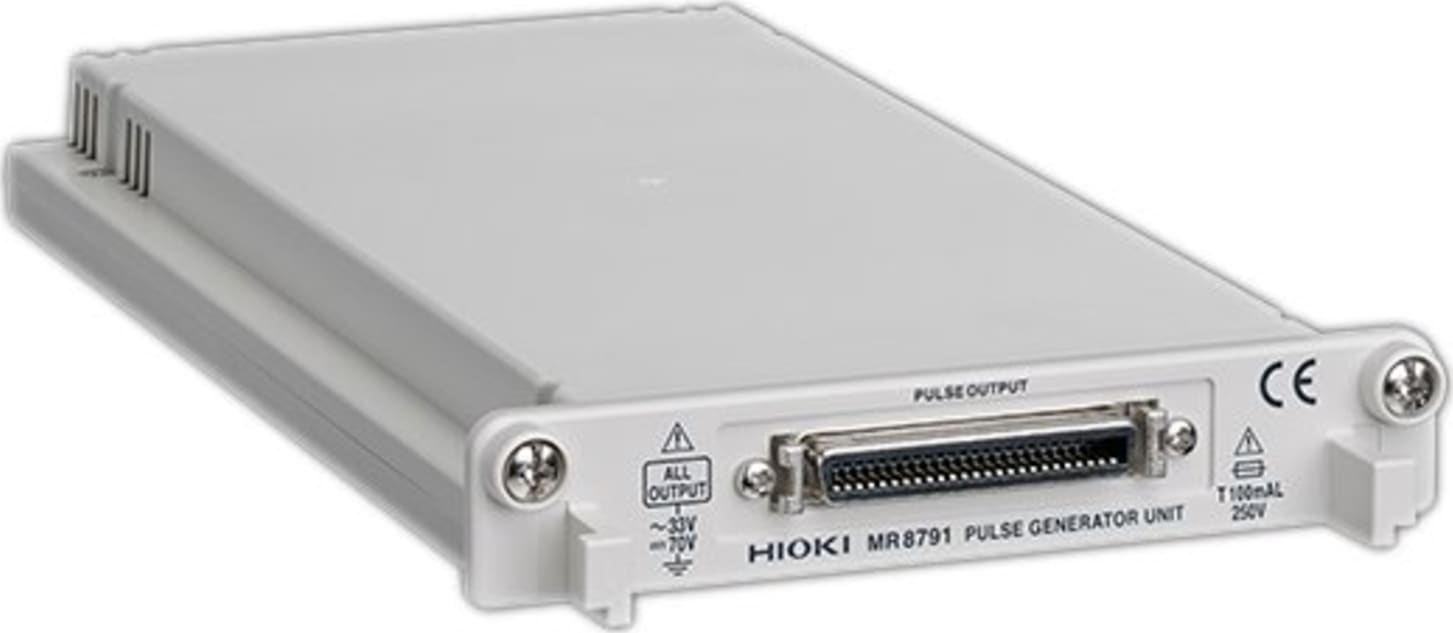

Hioki MR8791 Pulse Generator Unit for MR8847A

The Pulse Generator Unit MR8791 is a plug-and-play module for Hioki Memory HiCorders to conduct control simulation testing of control boards on equipment such as engine, airbags, brake systems, and power steering.

Output terminal	Number of channels: 8, Connector: D-sub, half-pitch, 50-pin Max. rated voltage to ground: 33 V rms AC or 70 V DC (between unit and output channels) Logic output/Open collector output
Output mode 1	Pattern output: Read frequency: 0 Hz to 120 kHz, 2048 logic patterns Pulse output: Frequency 0 Hz to 20 kHz, Duty 0.1% to 99.9%
Output mode 2	Logic output: Output voltage level: 0 V to 5 V (H level: 3.8 V or more, L level: 0.8 V or less) Open collector output: Absolute maximum rated voltage for collector/emitter: 50 V Overcurrent protection: 100 mA
Other	Self-test function
Dimensions and mass	106 mm (4.17 in) W × 19.8 mm (0.78 in) H × 196.5 mm (7.74 in) D, 230 g (8.1 oz)
