Waveform Generator Unit (for MR8847A)

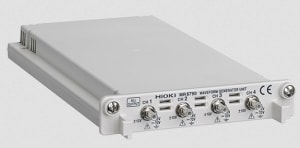

MR8790 Waveform Generator Unit
Output sine waves (20 kHz max.) and DC voltage signals up to 4 channels per unit
Output signals up ±10V or 5mA
For use with Hioki Memory Hicorder series (cannot use with 8847 or MR8847)
Isolated between unit and output, and between all channels

View Product Details

Your Price: $1,865.00

Sign-in for GSA and EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Hioki MR8790 - Waveform Generator Unit (for MR8847A)

Output signals up ±10V or 5mA
Output sine waves (20 kHz max.) and DC voltage signals up to 4 channels per unit
For use with Hioki Memory Hicorder series (cannot use with 8847 or MR8847)
Isolated between unit and output, and between all channels

Hioki MR8790 Waveform Generator Unit for MR8847A

The Waveform Generator Unit MR8790 is a plug-and-play module for Hioki Memory HiCorders that offers high-precision DC voltage output for generating signals that simulate voltage fluctuations at very low levels.

Output terminal	Number of channels: 4, SMB terminal (Output impedance: 1 Ω or less) Max. rated voltage to ground: 33 V rms AC or 70 V DC
Output voltage range	-10 V to 10 V (Amplitude setting range: 0 V to 20 V p-p, Setting resolution: 1 mV)
Max. output current	5 mA
Output function	DC, Sine wave (Output frequency range: 0 Hz to 20 kHz)
Accuracy	Amplitude accuracy: ±0.25% of setting ±2 mV p-p (1 Hz to 10 kHz) Offset accuracy: ±3 mV DC output accuracy: ±0.6 mV
Other	Self-test function (Voltage, Current)
Dimensions and mass	06 mm (4.17 in) W × 19.8 mm (0.78 in) H × 196.5 mm (7.74 in) D, 230 g (8.1 oz)
