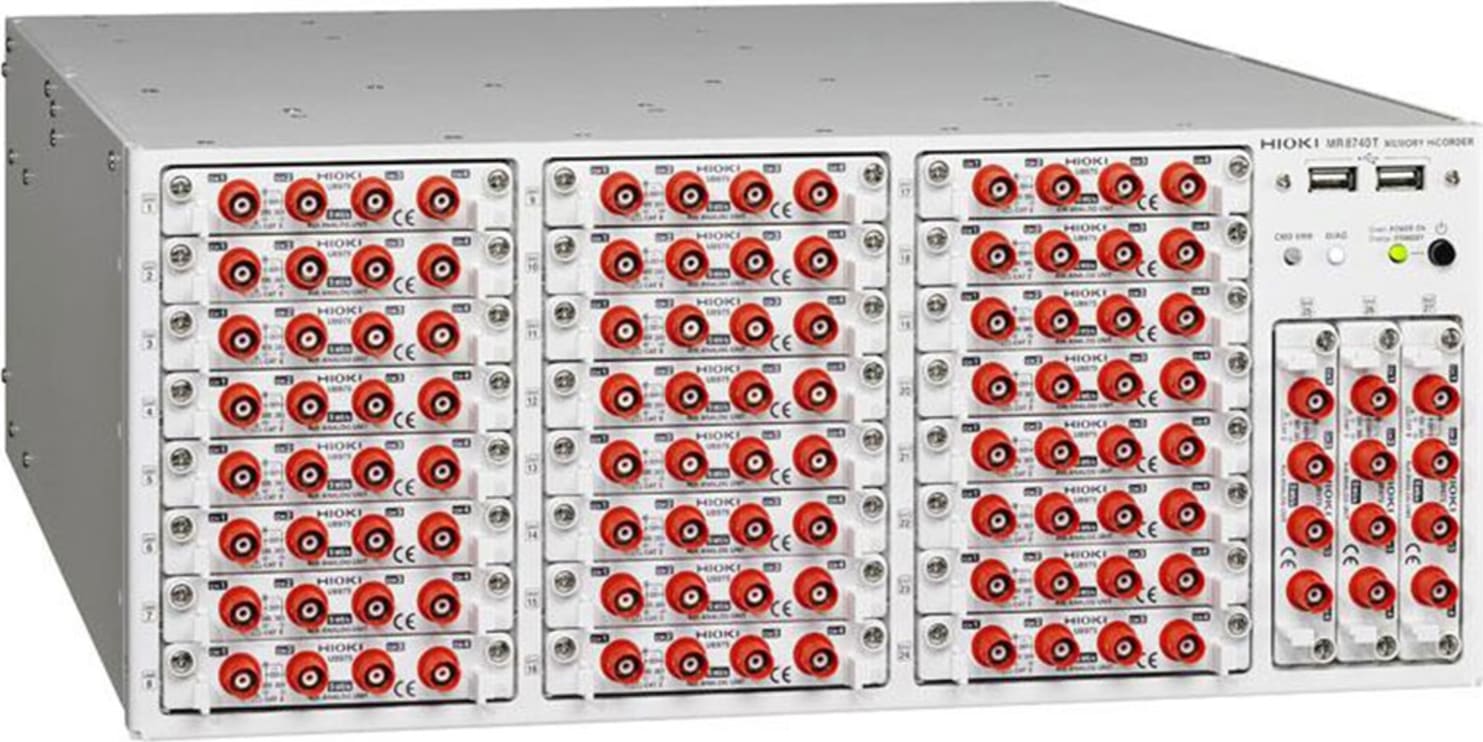

| General Specifications |
| Number of input units |
Max. 27 slots |
| Number of channels |
[Using the U8975] Max. 108 ch analog, or 96 ch analog + 48 ch logic (when used in combination with U8975 + 8973)
[Using the 8966] Max. 54 ch analog, or 48 ch analog + 48 ch logic (when used in combination with 8966 + 8973)
*Logic unit 8973 is limited to slots 25 to 27, up to 3 units.
*Analog unit channels are isolated from each other and from chassis. Logic unit channels share a common GND with chassis. |
| Measurement ranges |
100 mV to 400 V f.s., 12 ranges, resolution : 1/2000 of range (when using 8966)
4 V to 200 V f.s., 6 ranges, resolution : 1/32000 of range (when using U8975)
100 mV to 1000 V f.s., 5 ranges, resolution : 1/1000 000 of range (when using MR8990)
1 V, 10 V, 100 V f.s., 3 ranges, resolution : 1/1000 000 of range (when using U8991) |
| Max. allowable input |
400 V DC (when using 8966; upper limit voltage that can be applied between input terminals without damage) |
| Max. rated voltage to earth |
300 V AC/DC (input and instrument are isolated; between input channels and chassis; upper limit voltage that can be applied between input channels without damage) |
| Frequency characteristics |
DC to 5 MHz (-3 dB, when using 8966) |
| Max. sampling speed |
20 MS/s, all ch simultaneous, external sampling: 10 MS/s |
| Measurement functions |
Memory (high-speed recording) |
| Memory capacity |
Total of 1 G Word installed, 16 MW/ch (when using 8966), 8 MW/ch (when using U8975 or MR8990), 4 MW/ch (when using U8991) |
| Internal storage |
SSD 480 GB |
| Removable storage |
USB memory stick ×8 |
| Monitor output |
VGA, HDMI, Display Port, Recommended resolution 1920 × 1080 dot or more |
| External interfaces |
[LAN] 1000 BASE-T, 100 BASE-TX, 10 BASE-TX (2 port) (DHCP and DNS support, FTP server/cliant, HTTP server)
[USB] USB 3.0 Series A receptacle × 4, USB 2.0 ×4 |
| Power supply |
100 to 240 V AC, 50/60 Hz (400 VA max.) |
| Dimensions and mass |
426 mm (16.77 in)W × 177 mm (6.97 in)H × 505 mm (19.88 in)D, 14.0 kg (493.8 oz) (main unit only) |
