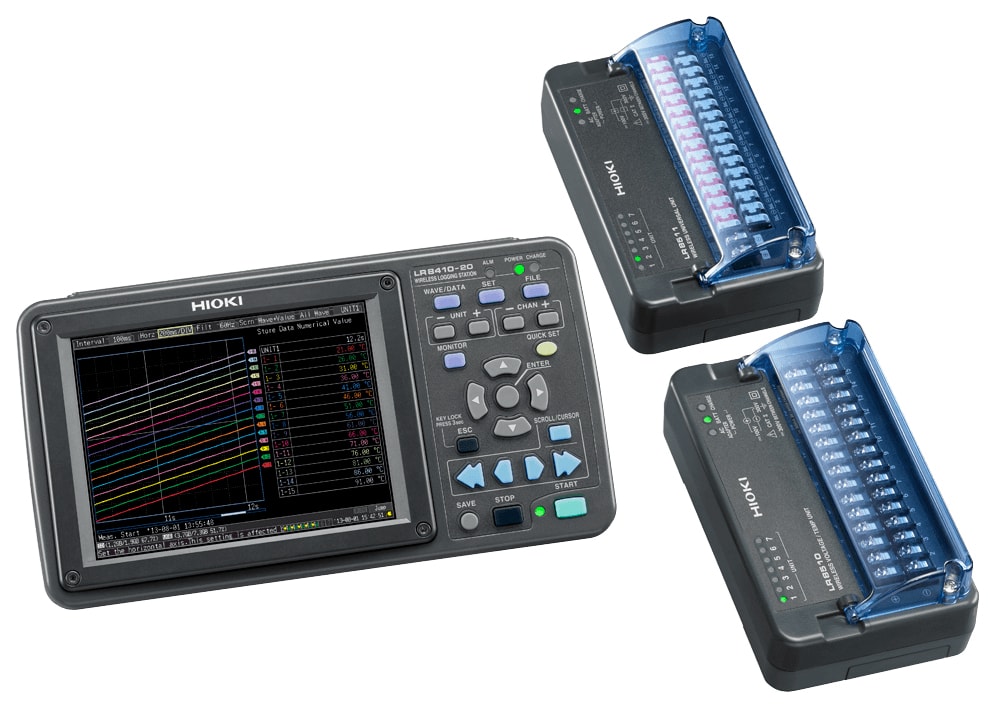

| Hioki LR8410-20 PRO KIT Specifications |

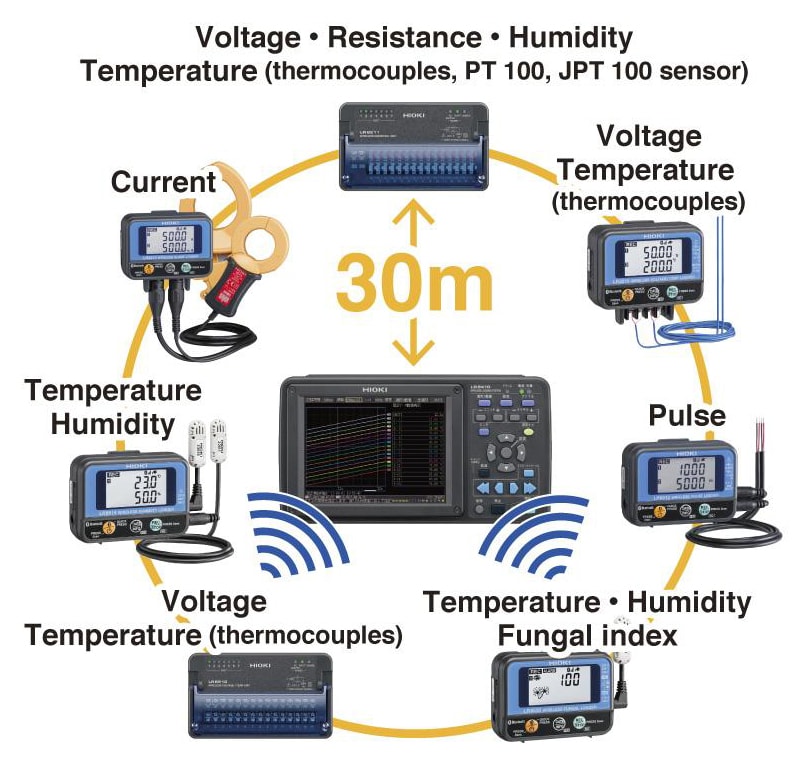

| No. of measurement channels |
Max. 105 ch (use 7 units of LR8510 or LR8511)
One or more LR8510 or LR8511 measurement modules are required. Main unit can control up to 7 modules with Bluetooth® wireless technology, mix and match modules as needed |
| Pulse, digital input |
[Pulse totalization] [Rotation count] Not available |
| Recording intervals |
100 ms(*2), 200 ms to 1 hour, 16 selections (All input channels are scanned within each recording interval.)
(*2) Setting not available when the thermocouple burnout detection setting is on |
| Data storage |
Internal memory: 8 M-words, Data storage media: SD memory card or USB memory stick (Only data recorded to a genuine HIOKI SD memory card is guaranteed) |
| Interface |
LAN: 100BASE-TX, Functions: Data acquisition using bundled software or PC commands, FTP server, FTP client, HTTP server function, or E-mail system
USB: USB 2.0 series mini-B receptacle x1, Functions: Data acquisition using bundled software or PC commands, Transfer data from the SD memory card to a PC via USB drive mode |
| Display device |
5.7 inch TFT color liquid crystal display (640 x 480 pixel) |
| Functions |
Save waveform data in real time to the SD memory card or USB memory stick, Numerical value calculations, Waveform calculations, 4ch alarm output (not isolated, common ground), and others |
| Power supply |
[AC adapter] Using the AC adapter Z1008 (100 to 240 V AC, 50/60 Hz), 45 VA Max. (including AC adapter), 15 VA Max. (exclusive of AC adapter)
[Internal battery] Using the Battery pack Z1007 (optional accessory), 3 hours of continuous use (at 23 °C reference data), 7 VA Max.
[External power] 10 to 28 V DC, 15 VA Max. (Please contact your HIOKI distributor for connection cord) |
| Dimensions and mass |
230 mm (9.06 in) W x 125 mm (4.92 in) H x 36 mm (1.42 in) D, 700 g (24.7 oz) (excluding Battery pack) |
| Accessories |
Instruction manual x 1, Measurement guide x 1, SD memory card (2GB) Z4001 x 1, CD-R (data collection software "Logger Utility") x 1, USB cable x 1, AC Adapter Z1008 x 1 |
| Combination status with LabVIEW or MATLAB script |
| Compatible models |
LabVIEW |
MATLAB script |
| LR8410-20 |
OK |
N/A |
| Countries and regions where wireless operation is currently supported (LR8410-20, -30) |
| Countries and regions where wireless operation is currently supported |
Austria, Belgium, Bulgaria, Canada, Chile, Colombia, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Georgia, Germany, Greece, Hong Kong, Hungary, Iceland, India, Ireland, Italy, Japan, Kenya, Latvia, Liechtenstein, Lithuania, Luxembourg, Macao, Malta, Myanmar, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Thailand, Turkey, United Kingdom, United States, Vietnam |
| Wireless certification (special) |
Singapore (Order Code: LR8410-20 only)
China (Order Code: LR8410-30 only)
Taiwan (Order Code: LR8410-20, LR8410-30 only)
Indonesia (Order Code: LR8410-20 only)
Australia, New Zealand (Order Code: LR8410-20 only)
United Arab Emirates (UAE) (Order Code: LR8410-20 only)
Israel (Order Code: LR8410-20 only) |
| Note |
Use of devices that emit radio radiation requires approval in the country of use. Thus, use of the instrument in a country or region where they have not been approved may be subject to penalty as a violation of law. |
