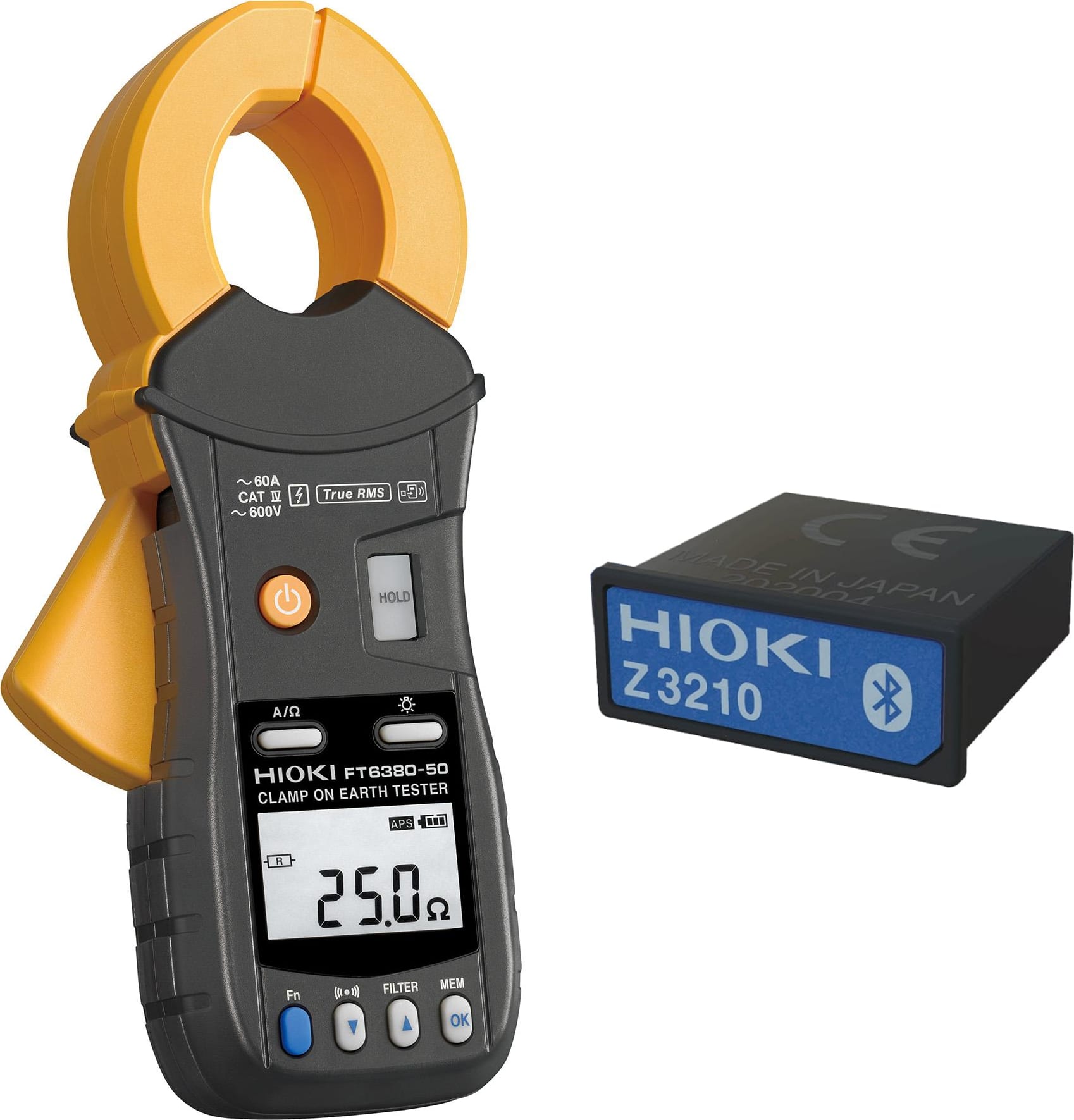

| Measurement principle |
Instrument has two cores for voltage injection and current measurement. From the defined voltage and measured current, the total circuit loop resistance is calculated Note: For multi grounded systems only. In a multi-grounded system, the larger the number of grounding poles, the more accurate the measured value. |
| Earthing resistance range |
0.20 Ω (0.01 Ω resolution) to 1600 Ω (20 Ω resolution), 10 ranges, Zero suppression: Less than 0.02 Ω, Accuracy: ą1.5 % rdg. ą0.02 Ω |
| AC Current range |
20.00 mA (0.01 mA resolution) to 60.0 A (0.1 A resolution), 5 ranges, Zero suppression: Less than 0.05 mA, Accuracy: ą2.0 % rdg. ą0.05 mA (30 Hz to 400 Hz, True RMS), Crest factor 5.0 or less (for the 60 A range, 1.7 or less) |
| Maximum input current (Current measurement) |
100 A AC continuous, AC 200 A for 2 minutes or shorter (at 50 Hz/60 Hz, requires derating at frequency) |
| Maximum rated terminal-to-ground voltage |
600 VAC measurement category IV (anticipated transient overvoltage 8000 V) |

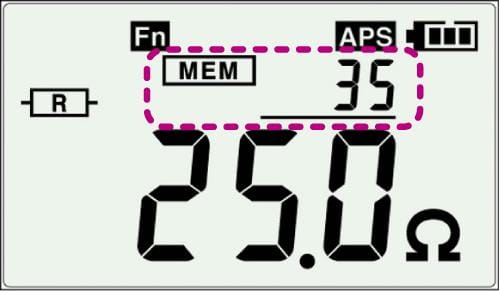

| Memory function |
2000 data |
| Alarm function |
For resistance measurement and current measurement, Beeps when measured value is less than or greater than threshold. |
| Other functions |
Data hold, Backlight, Filter, Auto power save, Wireless communication (without Z3210 installed)) |
| Display |
LCD, Max. 2,000 count Display refresh rate: Approx. 2 times/sec. |
| Dust-proof and waterproof |
IP40 (EN60529) With Jaws Closed |
| Power supply |
LR6 alkaline battery × 2 |
| Continuous operating time |
Approx. 40 hours (25 Ω measurement, backlight off, without Z3210 installed)
Approx. 35 hours (25 Ω measurement, backlight off, with Z3210 installed and using wireless communications) |
| Maximum measurable conductor diameter |
φ 32 mm (1.26 in) |
| Dimensions and mass |
73 mm (2.87 in) W × 218 mm (8.58 in) H × 43 mm (1.69 in) D, 620 g (21.9 oz) |
| Operating environment |
Indoors, pollution degree 2, operable at an altitude specified in specifications of each measuring instrument to which the adapter is attached |
| Operating temperature and humidity (Storage temperature and humidity) |
-30℃ (-22℉) to 70℃ (158℉), 90% RH or less (no condensation) |
| Standards |
Safety: EN61010
RF: EN300 328
RF EMC: EN301 489-1, EN301 489-17
Exposure: EN62479 |
| Maximum attaching/detaching count |
5000 times |
| GENNECT Cross App confirmed compatible OSs |
iOS 13 or later, Android 8 or later, Bluetooth® 4.0 or later |
| Bluetooth® communication distance |
About 10 m (line-of-sight distance) |
| Product warranty period |
3 years (do not exceed the maximum attaching/detaching count) |
| Dimensions and mass |
Approx. 16.4 mm (0.65in)W × 6.7 mm (0.26in)H × 15.6 mm (0.61in)D, 1.5 g (0.05 oz.) |
