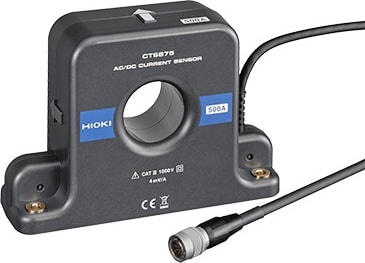

Hioki CT6875 Current Transformers

Name: Hioki CT6875 Current Transformers
Brand: Hioki
SKU: HiokiCT6875
Price: 1530.00 USD
Availability: InStock

0 reviews | Model: Hioki CT6875

Compare

AC/DC Current Sensor (500A DC-2MHz 3m Cable)

View Product Details

List Price: $1,530.00

In Stock:

View Payment Options

Recommended for you

Hioki pull-through AC/DC current sensors are best-in-class devices for use with power meters, Memory HiCorders and high performance oscilloscopes. The CT6875 is a DC to 2MHz/500A sensor, ideal for capturing current signals from switching power supplies, inverters, power conditioners and other next generation devices. CAT III 1000 V

Key Features
• Strengthened shield improves noise resistance to accurately measure current buried in noise
• Flat frequency characteristics and CMRR performance to achieve high accuracy measurement
• More enhanced environmental resistance performance than ever before with operating temperature range of -40 to 85°C
• Basic accuracy of ± 0.04% and phase ± 0.1°
• Good frequency characteristics over wide band of DC to 2 MHz (amplitude) and DC to 1 MHz (phase)
• Ideal for advanced fields such as photovoltaics and fuel cells to evaluate the charge / discharge of batteries and secondary side of inverters
• Connect with oscilloscopes or Hioki Memory HiCorders (using SENSOR UNIT) to monitor waveforms

Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)

Rated current	500 A AC/DC
Max. allowable input	Within the derating range, up to ±1500 Apeak (design value) allowed at 40°C or less for 20 ms or less
Frequency bandwidth	Amplitude: DC to 2 MHz (CT6875), DC to 1.5 MHz (CT6875-01) Phase: DC to 1 MHz
Basic accuracy	(DC, 45 Hz ≤ f ≤ 66 Hz) Amplitude: ±0.04 % rdg. ±0.008 % f.s., Phase: ±0.1°
Output voltage rate	4 mV/A rated (voltage output with Sensor Unit, use with a device having a 1 MΩ input resistance or higher)
Max. rated voltage to earth	1000 V AC/DC (50/60 Hz, CAT III )
Core diameter	φ 36 mm (1.42 in)
Operating temperature, humidity	-40°C to +85°C (-40°F to 185°F), 80% RH or less (with no condensation)
Power supply	Power suppled via the Power Analyzer PW6001, PW3390, or Sensor Unit CT9555, CT9556, CT9557
Max. rated power	7 VA
Dimensions and mass	160 mm (6.30 in)W × 112 mm (4.41 in)H × 50 mm (1.97 in)D, CT6875: 800 g (28.2 oz), cable length 3 m (9.84 ft), CT6875-01: 1100 g (38.8 oz), cable length 10 m (32.81 ft)
Accessories	Instruction manual ×1, Mark bands ×6, Operating precautions ×1

Compatible models

Compatible models	CT6875
Power Analyzer PW6001, PW3390	Ok
Power Analyzer 3390	Attention (Requires CT9901)
Power HiTester 3193 series	Attention (Requires CT9901)
Current Unit 8971	Attention (Requires the 9318, CT9901)

Test Equipment General Attributes
HTS/Schedule B Number	8504.90.9610
ECCN Number	3A992
Country of Origin	Japan
