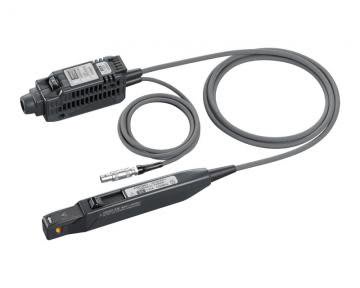

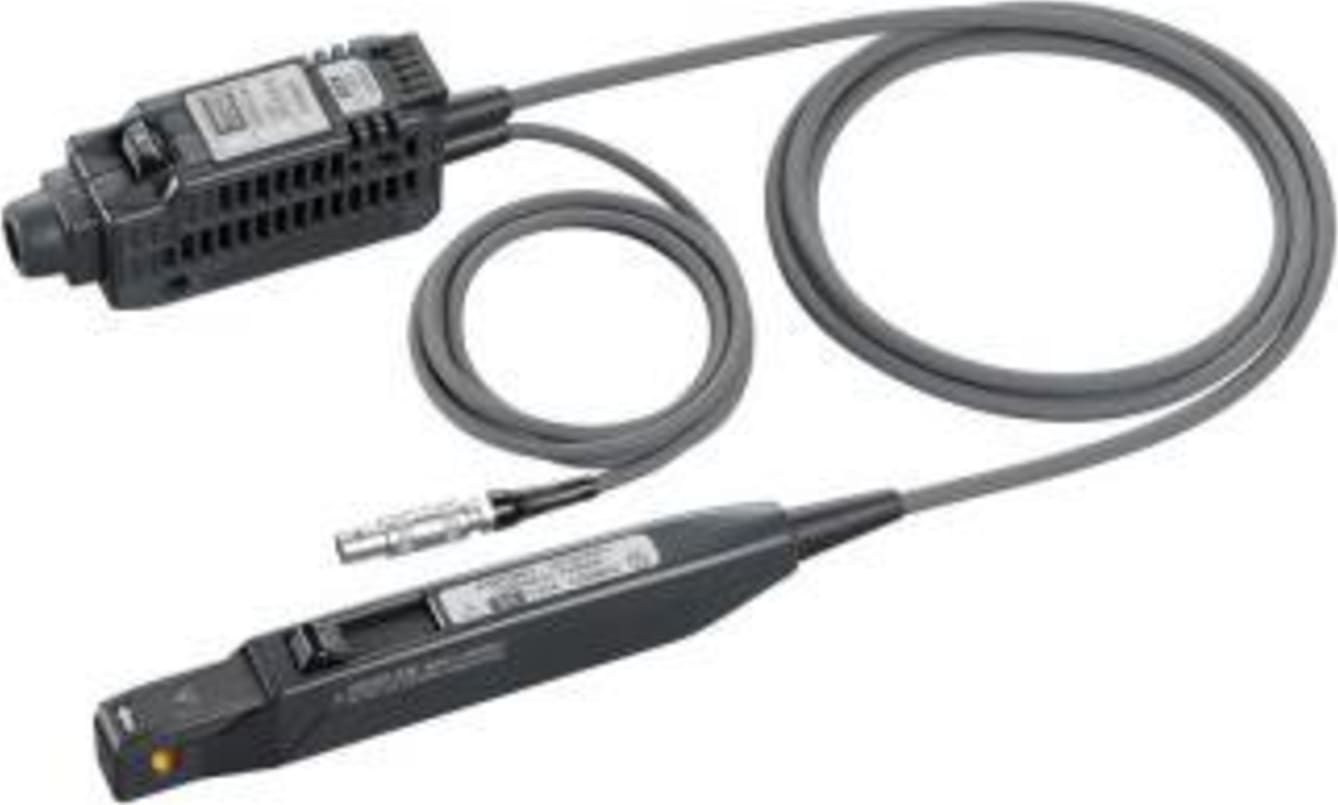

| Hioki CT6700 / CT6701 Specifications |
| |
CT6700 |
CT6701 |
| Frequency range |
DC to 50 MHz (-3dB) (Refer to the frequency characteristics graph below.) |
DC to 120 MHz (-3dB) (Refer to the frequency characteristics graph below.) |
| Rise time (10% to 90%) |
7.0 ns or less |
2.9 ns or less |
| Maximum rated current |
5 A rms (DC, and sine wave) (Refer to the frequency derating properties graph below.) |
| Maximum peak current |
±7.5 A peak (non-continuous) |
| Diameter of measurable conductors |
5 mm dia. or less |
| Measurable conductors |
Insulated conductors |
| Output voltage rate |
1 V/A |
| Amplitude accuracy |
±1%rdg. typical ±1 mV, ±3.0%rdg. ±1 mV (DC, 45 to 66 Hz sine wave, 0 to 5 A rms) |
| Output resistance |
50 Ω ±10% (DC) |
| Noise |
60 μA rms typical, 75 μA rms max (for 30 MHz band measuring instrument) |
| Temperature coefficient for sensitivity |
±2%rdg. or less (After automatic zero-adjustment with 50 Hz 5 A rms input, except at 23±5°C) |
| Maximum rated power |
3.2 VA (with continuous maximum input) |
| Supply voltage |
±12 V |
| Operating temperature and humidity range |
0 to +40°C, 80% RH or less (no condensation) |
| Storage temperature and humidity range |
-10 to +50°C, 80% RH or less (no condensation) |
| Location for use |
Indoor, pollution degree 2, altitude up to 2000 m |
| Effect of external magnetic field |
20 mA max - DC and 60 Hz, magnetic field of 400 A/m |
5 mA max - DC and 60 Hz, magnetic field of 400 A/m |
| Effect of radiated radio-frequency electromagnetic field |
±10 mA max (at 3 V/m) |
| Effect of conducted radio-frequency electromagnetic field |
±10 mA max (at 3 V) |
| DEMAG/AUTO ZERO function |
Demagnetization, automatic zero-adjustment |
| JAW UNLOCKED detection |
LED lights up when the opening mechanism of the sensor head is unlocked. |
| OVERLOAD detection |
LED flashes to warn that the input is in excess of ratings |
| Accuracy warranty period |
1 year (Opening/closing up to 10,000 times) |
| Cord lengths |
Sensor cord: 1.5 m (4.92 ft), Power cord: 1.0 m (3.28 ft) |
| External dimensions and mass |
Sensor: 155 mm (6.10 in)W × 18 mm (0.71 in)H × 26 mm (1.02 in)D, Terminator: 29 mm (1.14 in)W × 83 mm (3.27 in)H × 40 mm (1.57 in)D mm, Mass: 250 g (8.8 oz) |
