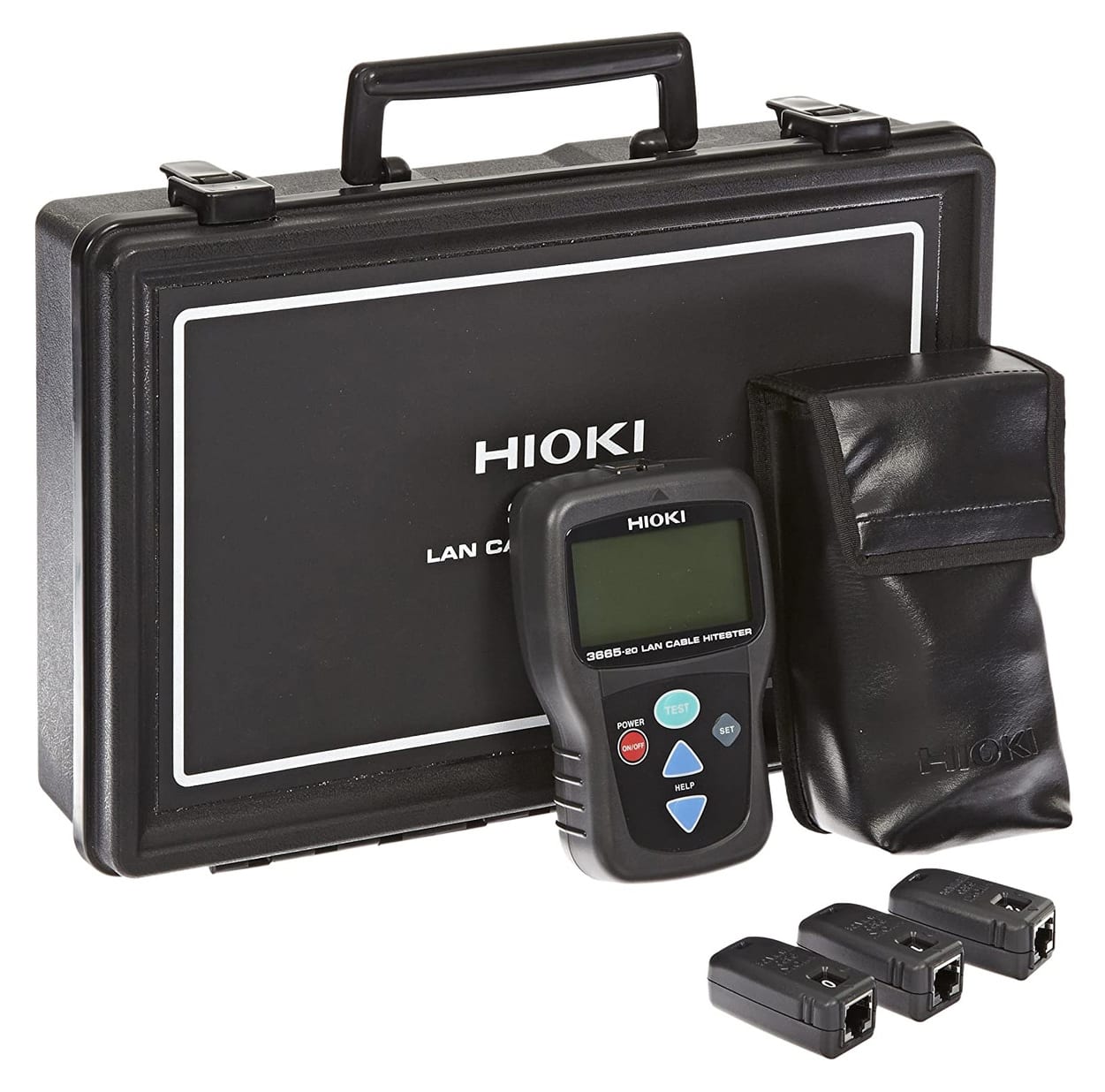

Hioki 3665-20-01 KIT - LAN Cable Custom Kit

Name: Hioki 3665-20-01 KIT - LAN Cable Custom Kit
Brand: Hioki
SKU: Hioki3665-20-01 KIT
Price: 1300.00 USD
Availability: InStock

0 reviews | Model: Hioki 3665-20-01 KIT

Compare

LAN Cable Custom Kit (3665-20 w/9690-01, 9690-02, 9690-03, 9690-04, 9249)

Includes 3665-20 (LAN cable HiTester), 9690-01, 9690-02, 9690-03, 9690-04, and 9249
Easily test wire map, measure cable length and identify twisted-pair cables
Useful for verifying connections after installing connectors on cables
Wire map check : Detect split pairs with wiring check
Cable length : Get NVP-Enhanced measurement accuracy
Direction check : Identify up to 21 cable destination
Powered by 2 AA alkaline batteries
Measurement accuracy: ± 4 % rdg. ± 1 m (3.3 ft)
Compatible with RJ-45 plug connectors

View Product Details

Your Price: $1,300.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series


Product	Hioki 3665-20-01 KIT LAN Cable Custom Kit (3665-20 w/9690-01, 9690-02, 9690-03, 9690-04, 9 ...	Hioki 3665-20 Optical Power Meter. Optical Power Meter for Testing Optical Power Integrity ...
Price
In Stock
Compare	Add to compare	Add to compare

Recommended for you

Hioki 3665-20-01 KIT - LAN Cable Custom Kit

Includes 3665-20 (LAN cable HiTester), 9690-01, 9690-02, 9690-03, 9690-04, and 9249
Easily test wire map, measure cable length and identify twisted-pair cables
Useful for verifying connections after installing connectors on cables
Wire map check : Detect split pairs with wiring check
Cable length : Get NVP-Enhanced measurement accuracy

LAN Cable Custom Kit (3665-20 with 9690-01, 9690-02, 9690-03, 9690-04, 9249) The Hioki 3665 is a handheld LAN cable tester to easily test wire map, measure cable length and identify twisted-pair cables, and is useful for verifying connections after installing connectors on cables. Optional terminators that facilitate easy identification of multiple cables make the LAN cable tester especially convenient for testing cables in working networks in the event of faults caused by open- or short-circuited cable wiring.

Key Features

Wire map check: Detect split pairs with wiring check
Cable length: Get NVP-Enhanced measurement accuracy
Direction check: Identify up to 21 cable destination

Hioki 3665-20-01 KIT Specifications
Measurable cable	Twisted-pair cable, characteristic impedance: 100 Ω, shielded and unshielded, CAT 3, 4, 5, 5e and 6
Compatible connectors	RJ-45 plugs
Wire map test	Detectable errors: open, short, reversed, transposed, split pairs and other incorrect wiring (Wiring condition and shielding can be confirmed using the Terminator 9690)
Cable length measurement	Measurable lengths: 2 m to 300 m (6.6 ft to 984 ft) Measurement accuracy: ± 4 % rdg. ± 1 m (3.3 ft) Display resolution: 0.1 m (0.3 ft)
Direction measurement	Up to 21 cables can be identified using the supplied Terminator 9690 and optional Models 9690-01 to 9690-04
Power supply	LR6 (AA) alkaline battery x2, 1.4 VA max., Continuous use: 50 hr (at measurement interval of 1 minute)
Dimensions and mass	85 mm (3.35 in)W x 130 mm (5.12 in)H x 33 mm (1.30 in)D, 160 g (5.6 oz) (without batteries)
Accessories	Terminator 9690 x1, Carrying case x1, LR6 (AA) alkaline battery x2, Instruction manual x1
