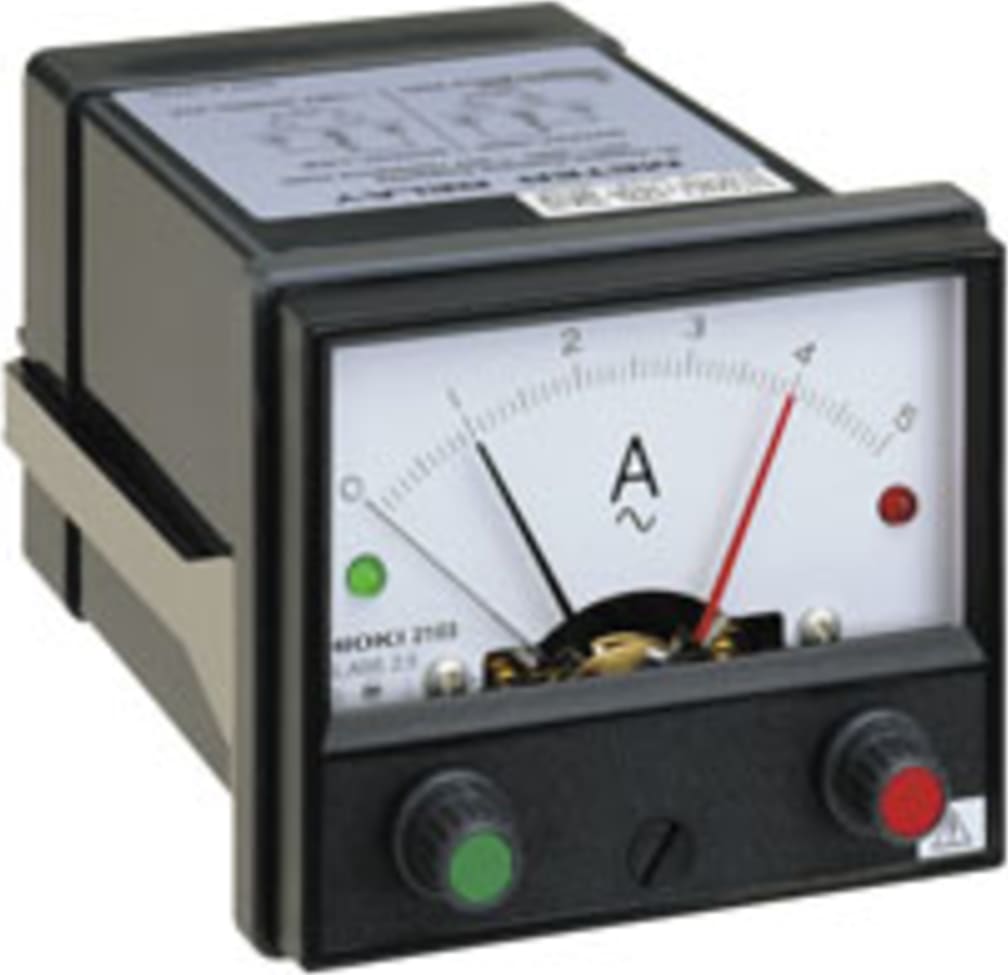

Hioki 2103H Meter Relay

Name: Hioki 2103H Meter Relay
Brand: Hioki
SKU: Hioki2103H
Price: 575.00 USD
Availability: InStock

0 reviews | UPC: 638317127785 | Model: Hioki 2103H

Compare

Meter Relay

Ultra sensitive 1 µA, 10 mV DC movement
Includes a display lamp to illuminate movement at a glance
Relay action delays circuit closure upon power on
Both power circuitry and relay built-in

View Product Details

List Price: $575.00

In Stock:

View Payment Options

Recommended for you

Hioki Meter Relays are industrial 1-channel devices to assist in energy saving and automation implementations. The 2103 series are 1-channel ±2.5% class meter relays featuring a sensitive 1 µA, 10 mV DC movement and a customizable scale.

• 2103H: Lamp lights up and output relay contact operates at deflection of the needle to the right of the setting needle

Indicator shape	φ 0.3 mm (0.01 in) pin
Accuracy class	[2103H/L/HL]: 2.5 %, [2104H/L/HL]: 1.5 %
Setting accuracy	Within 1.5 % of the full scale value (Independent of meter section)
Dead-zone width	Within 0.5 % of the scale length
Indicator operating range	Within the scale (passing indicator needle system)
Setting indicator (shape and color)	Spear shape H indicator (upper-limit side): Red, L indicator (lower-limit side): Green
Setting indicator setting range	Within the all range of scale for both H and L
Minimum H/L space	Within 3 % of the scale length
Delay time from power on	Approx. 2 s (time constant)
Relay contact structure	One transfer for both H and L
Relay output response	Approx. 0.5 s
Max. current of relay contact	5 A (Under condition of 250 V AC, 30 V DC, resistance load)
Power supply	100 V/200 VAC (to be specified at the time of ordering) 50/60 Hz, 3 VA max.

Panel Meters/Meter Relays Template
Type (Panel Meter )	Analog
Relay Output	Yes
Test Equipment General Attributes
Product Height	3.30 IN
Product Length	7.00 IN
Product Width	3.50 IN
Country of Origin	Japan
Shipping Height	3.30 IN
Shipping Length	7.00 IN
Shipping Width	3.50 IN
