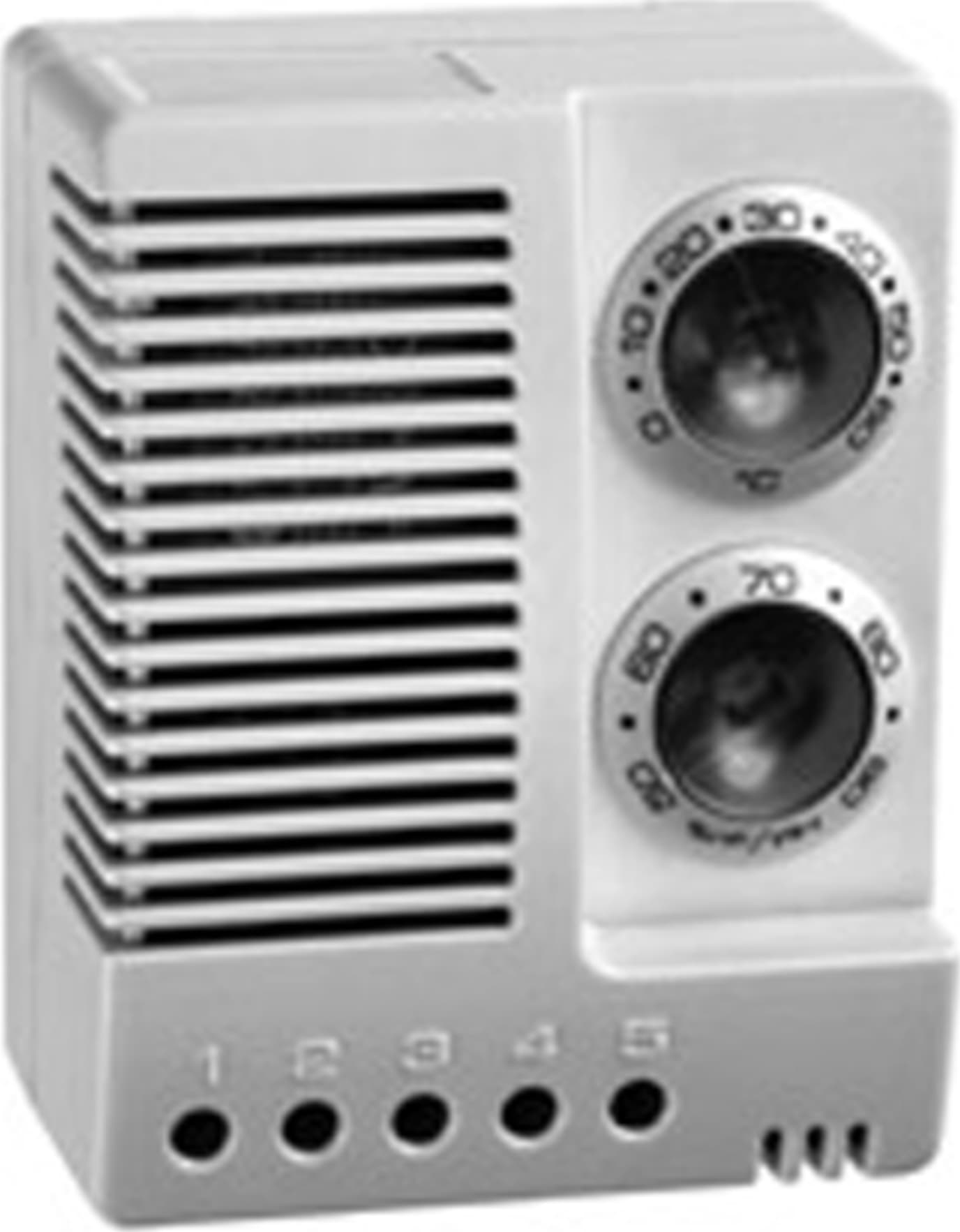

Hammond SKTH012009230 Electronic Humidity and Temperature Control Thermostat

Name: Hammond SKTH012009230 Electronic Humidity and Temperature Control Thermostat
Brand: Hammond
SKU: HammondSKTH012009230
Price: 206.00 USD
Availability: InStock

0 reviews | Model: Hammond SKTH012009230

Compare

Humidity And Temp Thermostat

Designed to provide both air temperature and humidity control as well as monitoring in electrical and electronic enclosures.
Independently senses the relative humidity and temperature. Resistive and inductive loads (heaters or filter fans) can be switched.
Highly effective in ATMs, parking control gates, ticket dispensers and traffic control systems where equipment is exposed to wide ranging outdoor elements.

View Product Details

List Price: $441.82

In Stock:

View Payment Options

Recommended for you

ELECTRONIC HUMIDITY AND TEMPERATURE CONTROL

Part Number	Dimensions Height x Width x Depth	Switching Capacity
SKTH012009230	3.03 x 2.36 x 1.69	NC: AC 240 V - 6A resistive, 1A inductive NO: AC 240 V - 8A resistive, 1.6A inductive

Temperature Range:	32°F to 140°F (0°C to 60°C)
Switching difference (hysteresis):	Approximately 3.6°F (2°K)
Humidity range:	50% to 90% relative humidity
Response time:	Approximately 160 seconds
Function Indication:	LED
Life expectancy:	100,000 cycles
Mounting :	Easily installed by clip mounting on 35mm DIN rail
Housing :	Flame retardant plastic UL94VO
Color:	Gray
Protection:	IP20
Approval:	UL Recognized Component, cUL Recognized Component, CE
