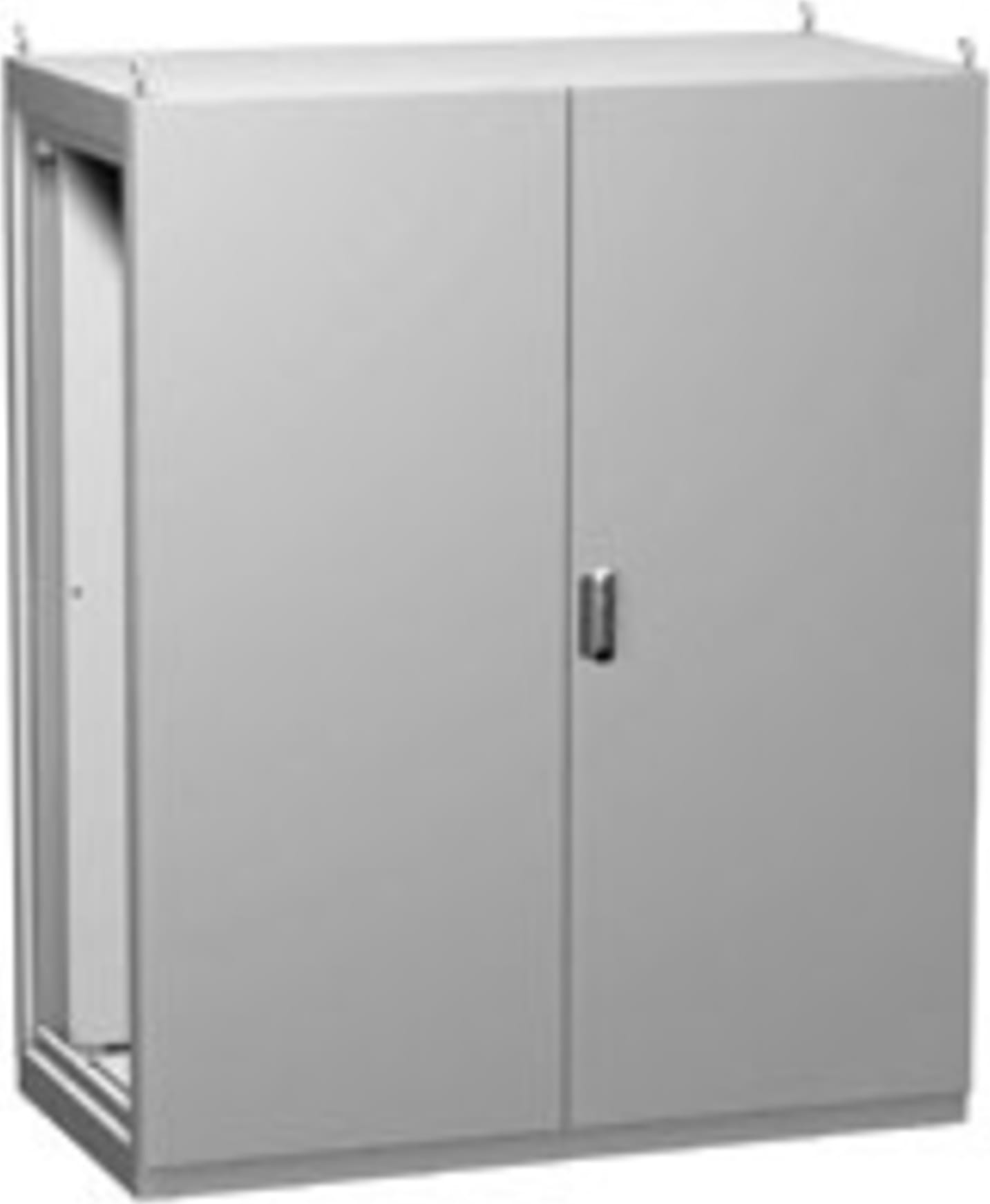

Hammond IMET18128 Modular Double Door Modulating Freestanding Enclosure - 1800 x 1200 x 800 - Steel/Beige

Name: Hammond IMET18128 Modular Double Door Modulating Freestanding Enclosure - 1800 x 1200 x 800 - Steel/Beige
Brand: Hammond
SKU: HammondIMET18128
Price: 2327.64 USD
Availability: InStock

0 reviews | Model: Hammond IMET18128

Compare

Modular Dbl Door Encl. - 1800 x 1200 x 800 - Steel/Beige

Cannot Ship Air

Application:

The IMET product line provides users with a rugged housing for industrial control and operator interface in harsh industrial environments.
Modular design permits joining of units together for large scale and mixed use applications.
A broad range of industry standard sizes are offered. Units are constructed to imperial dimensions and hardware sizes, with metric sizing provided for convenient reference.

View Product Details

List Price: $4,360.99

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Adapter Kits

for the Hammond IMET18128

Cal Test CT4103 Universal Adapter Kit

Catalog: CT4103

(9)

In Stock!

Add to Cart

Standards:

UL 508 Type 12
CSA Type 12
Complies with:
NEMA Type 12
IEC 60529 IP54

Standard Configuration:

Frame with integral solid top
Lifting eyebolts
2 removable bottom panels
2 solid overlapping front doors with key locking handle
Removable rear cover panel
Inner mounting panel, additional panels available

Construction:

Formed 14 gauge steel.
Frame has welded corner reinforcements.
Mounting channels on sides of enclosure are oriented front to back for depth adjustment of mounting panels.
Oil resistant gaskets are permanently secured on all openings.
Reinforced eyebolts are provided for easy enclosure lifting.
Frames are easily joined together with an optional joining kit.
Doors can be easily removed and interchanged.
Optional formed 16 gauge steel side panels are recessed to fit flush with the sides of the cabinet.Side panels must be ordered separately.
Bonding and grounding studs are provided for all doors and panels.

Finish:

Phosphatized and finished in RAL 7032 beige powder coating.
Inner panels are finished in white powder coating.

Accessories:

Additional inner panels
Air conditioners
Bridge panel
Caster assm. - inside mounting
Caster assm. - outside mounting
Center depth support
Door mount rails
Door shelf
Door support wheel
Filter fans
Fold down shelf
Joining kit
Leveling feet
Light kit and accessories
Literature pocket
Power bars
Side mount inner panels
Side panels
Tamper resistant screws
Top mount fan

MODULAR FREESTANDING ENCLOSURES - NEMA 12
IMET Series Double Door Enclosure

Part No.	Nominal Dimensions		Overall Dimensions (in/mm)						Panel Dimensions		Ship Wt. lbs
	A x B x C (mm)		A	B	C	D	E	F	Height	Width
IMET18128	1800 x 1200 x 800	inch	77.31	45.22	31.5	66.81	13	17.5	68.75	39.97	450
IMET18128	1800 x 1200 x 800	mm	1964	1149	800	1697	330	445	1746	1015	450
