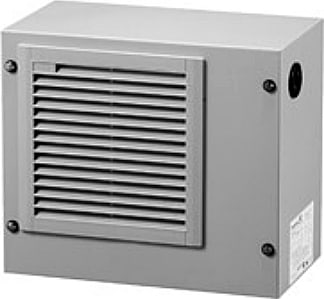

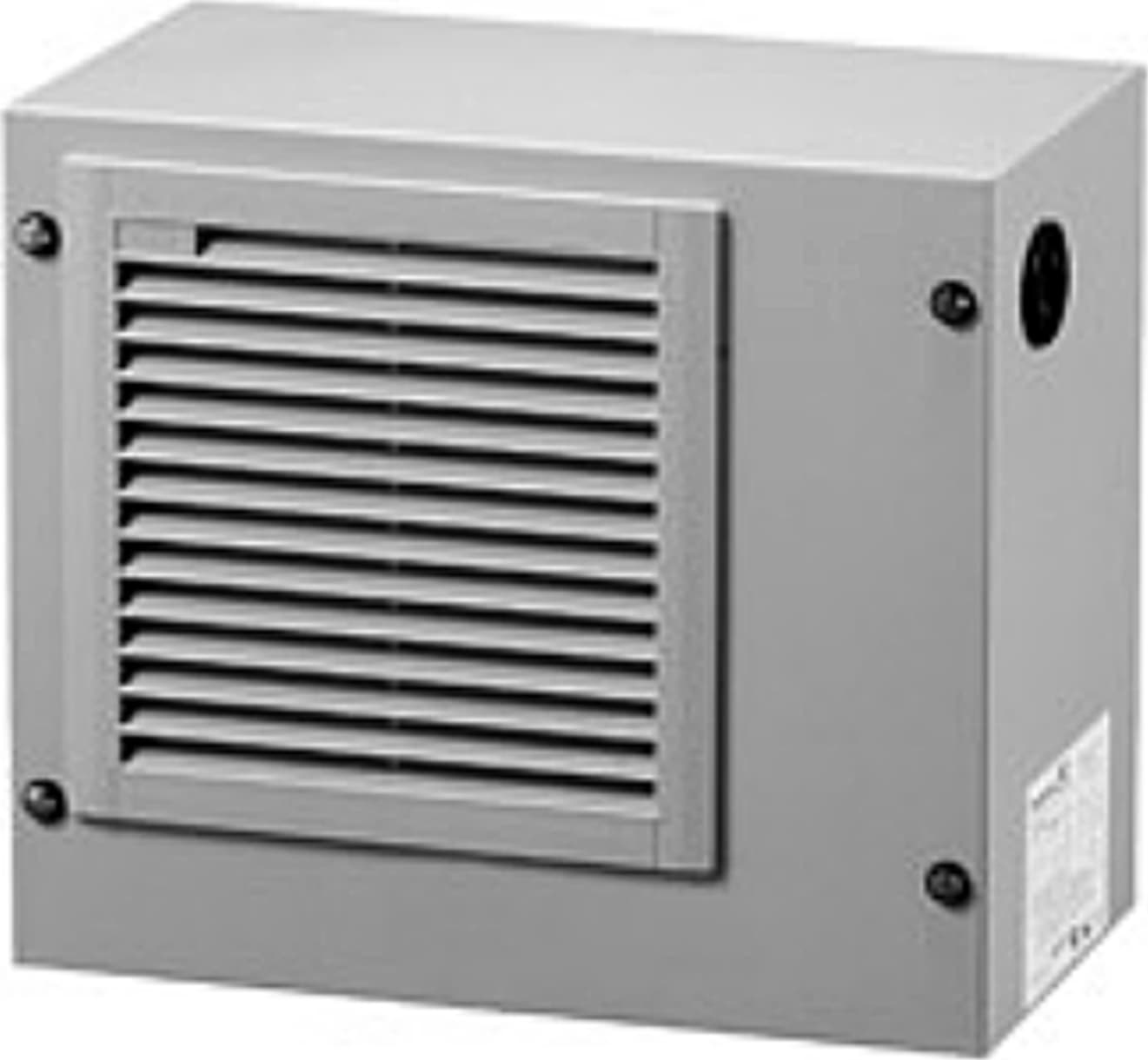

Hammond DTS1200A115LG AC Unit 1,200 BTU/H 115 V - NEMA 12 - Light Gray

Name: Hammond DTS1200A115LG AC Unit 1,200 BTU/H 115 V - NEMA 12 - Light Gray
Brand: Hammond
SKU: HammondDTS1200A115LG
Price: 1537.08 USD
Availability: InStock

0 reviews | UPC: 062398000501 | Model: Hammond DTS1200A115LG

Compare

AC Unit 1,200 BTU/H 115 V - NEMA 12 - Lt. Gray

R134a refrigerant.
Thermostat control.
Continuous air circulation from high capacity fans.
EMI/RFI suppression meets CE.
Line cord with plug (115 V).
Washable filter mat protected within an easily removable grill.
Gasket, mounting kit and template for enclosure cutout and drilling are included.
Condensate drain hose and clamp provided.
Exterior case easily removable for field service.
Q Mount allows unit to hang in place for easy installation.

Accessories:

Gaskets
Replacement filters
Replacement grill

View Product Details

List Price: $2,004.36

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Adapter Kits

for the Hammond DTS1200A115LG

Cal Test CT4103 Universal Adapter Kit

Catalog: CT4103

(9)

In Stock!

Add to Cart

Standards:

Maintains enclosure's NEMA 12 rating
IP 54
UR, cUR and CE

Description:

Designed for side mounting on any enclosure surface where hot spot cooling or low capacity cooling is required.
Compact design uses minimal surface area.
Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.

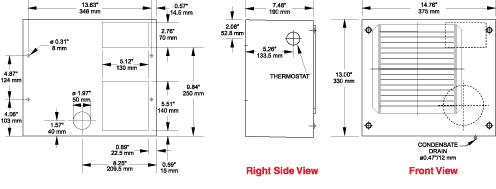

SIDE MOUNTING DTS SERIES
1200 BTU/H

Part Number	Ship Wt. lbs.
DTS1200A115LG	42

Electrical Data	DTS1200A115
Rated Voltage	115 V 60 Hz 110 v 50 Hz
Range of Operation	103-127 V
Power Consumption	200 W
Running Amps	2.2 A
Starting Current	15.7 A
Line Cord	With Plug

Refrigeration Data
Rated Capacity	1,200 BTU/H (350 Watts)
Type of Refrigerant	R134a
Regrigerant Charge	280 g
Adjustable Thermostat	Factory setting +95°F (+35°C)
Max. Ambient Air Temp.	+125°F (+52°C)
Min. Ambient Air Temp.	+46°F (+8°C)
Air Capacity (unrestricted)	Internal Circulation 106 CFM External Circulation 230 CFM
Condensation Discharge	Direct via tube
Filter Mat	150 g/m²
Db Noise Level	<62 dB (A)
Unit Weight	40 lbs (18 kg)
Exterior Case	Galvanized sheet metal
Finish	RAL7035 light grey finish
NEMA Rating	Enclosures IP 54/NEMA 12
