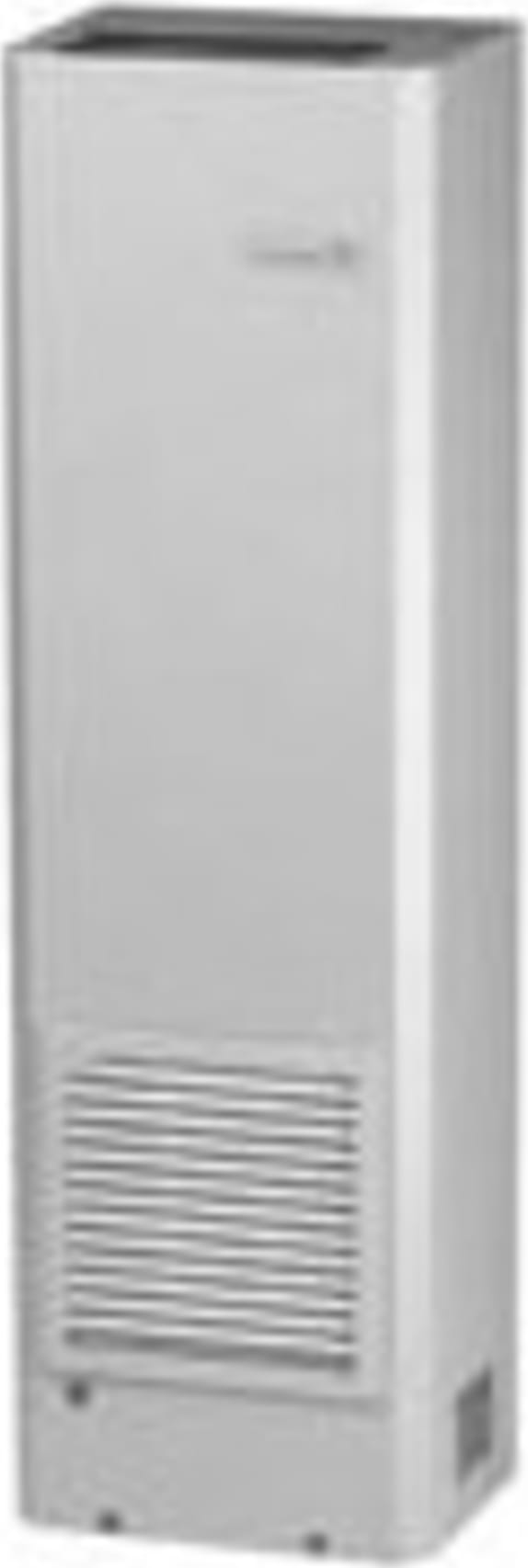

Hammond DTS12000A115LG Side Mounting AC Unit 8,000 BTU/H 115 V - NEMA 12 - Lt. Gray

Name: Hammond DTS12000A115LG Side Mounting AC Unit 8,000 BTU/H 115 V - NEMA 12 - Lt. Gray
Brand: Hammond
SKU: HammondDTS12000A115LG
Price: 3070.36 USD
Availability: InStock

0 reviews | Model: Hammond DTS12000A115LG

Compare

AC Unit 12,000 BTU/H 115 V - NEMA 12 - Lt. Gray

Cannot Ship Air

R134a refrigerant.
Thermostat control.
Hot gas bypass valve prevents evaporator freeze up while minimizing heavy inrush currents on large BTU/H units.
Built in condensate evaporator.
Continuous air circulation from high capacity fans.
EMI/RFI suppression meets CE.
Self-diagnostics on startup.
Fault indication via LED light.
Provision for door contact allowing power down when enclosure door is opened.

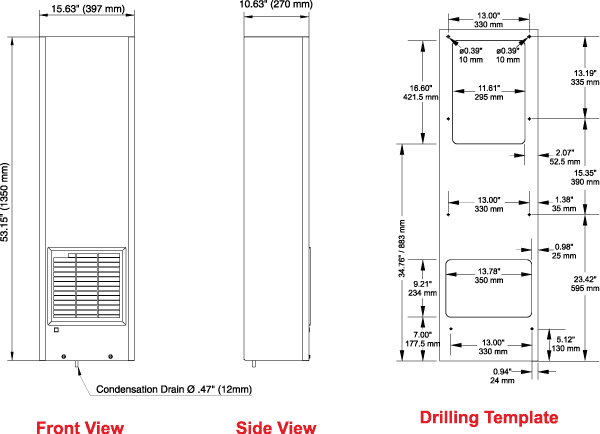

Gasket, mounting kit and template for enclosure cutout and drilling are included.
Washable filtermat protected within an easily removable grill.
Condensate drain hose and clamp provided.
Q Mount allows unit to hang in place for easy installation.
Versatile design maintains foot print for larger capacity units if required.

View Product Details

List Price: $5,752.50

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Adapter Kits

for the Hammond DTS12000A115LG

Cal Test CT4103 Universal Adapter Kit

Catalog: CT4103

(9)

In Stock!

Add to Cart

Standards:

Maintains enclosure's NEMA 12 rating
IP 54
UR, cUR and CE

Description:

Designed for side mounting on any enclosure surface where high capacity system cooling is required.
Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
Optimum air circulation with maximum clearance distance between warm inlet and cold outlet for reduced hot spot locations.

Accessories:

Gaskets
Lifting lugs
Remote door switch
Replacement filters
Replacement grill

SIDE MOUNTING DTS SERIES
8000 & 12,000 BTU/H

Part Number	Ship Wt. lbs.
DTS12000A115LG	189

Electrical Data	DTS12000A115LG
Rated Voltage	115 V 60 Hz/ 230 V 50/60 Hz
Range of Operation	103-127 V/187-253 V
Power Consumption	2300 W/2000 W
Running Amps	21.0 A/12.5 A
Starting Current	52.0 A/46.2 A
Line Cord	8' Cord

Refrigeration Data	DTS12000A115LG
Rated Capacity	12,000 BTU/H (3500 Watts)
Type of Refrigerant	R134a
Regrigerant Charge	850 g
Adjustable Thermostat	Factory setting +95°F (+35°C)
Max. Ambient Air Temp.	+125°F (+52°C)
Min. Ambient Air Temp.	+46°F (+8°C)
Air Capacity (unrestricted)	Internal Circulation 589 CFM External Circulation 589 CFM
Condensation Discharge	Condensate Evaporator
Filter Mat	150 g/m²
Db Noise Level	<69 dB(A)
Unit Weight	165 lbs (75 kg)
Exterior Case	Galvanized sheet metal
Finish	RAL7035 Light Grey powder Finish
NEMA Rating	Enclosures IP 54/NEMA 12
