Hammond 1437-30 Pushbutton Enclosure - Extra Deep - 30 PB x 30.5mm - Steel/Gray

Name: Hammond 1437-30 Pushbutton Enclosure - Extra Deep - 30 PB x 30.5mm - Steel/Gray
Brand: Hammond
SKU: Hammond1437-30
Price: 191.96 USD
Availability: InStock

0 reviews | Model: Hammond 1437-30

Compare

Pushbutton Encl - Extra Deep - 30 PB x 30.5mm - Steel/Gray

Application:

Designed to accept standard heavy duty oil tight pushbuttons, switches and pilot lights.
Provides protection from dirt, dust, oil and water.

View Product Details

List Price: $359.66

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Adapter Kits

for the Hammond 1437-30

Cal Test CT4103 Universal Adapter Kit

Catalog: CT4103

(9)

In Stock!

Add to Cart

Standards:

UL 508 Type 12 and 13
CSA Type 12 and 13
Complies with:
NEMA Type 12 and 13
JIC STD EGP-1-1967
IEC 60529, IP54
Appropriate components are required to maintain these standards.

Construction:

Formed from 14 gauge steel except A which is 16 gauge.
Smooth continuously welded seams.
Welded brackets provide for enclosure mounting.
Captive cover screws fasten into threaded, sealed wells.
Larger enclosures provide internally hinged removable covers, designed to hold the cover open during wiring (see table).
Oil resistant gasket and adhesive.
A grounding stud is provided in the enclosure.

Finish:

Cover and enclosure are phosphatized and finished in ANSI 61 gray powder coating.

Accessories:

Hole plugs
Pedestals

PUSHBUTTON ENCLOSURES - NEMA 12, 13

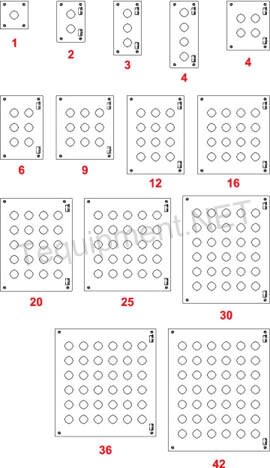

1437/1437M Extra Deep Series

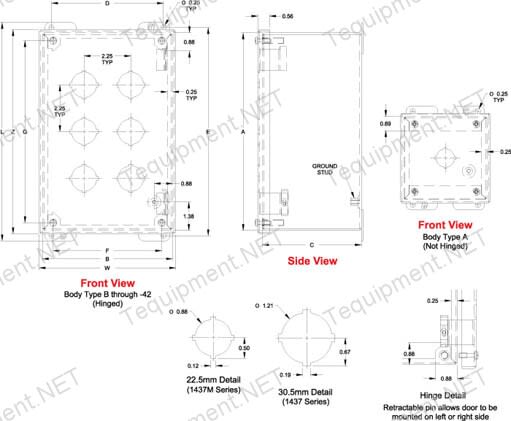

Part No.	No. of Holes							Overall Dimensions				Ship Wt. lbs.
30.5mm	No. of Holes	A	B	C	D	E	F	G	L	W	Z	Ship Wt. lbs.
1437-30	30	16.25	13.00	4.75	12.13	16.75	11.96	15.50	17.25	13.31	16.56	14
