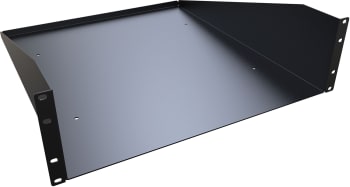

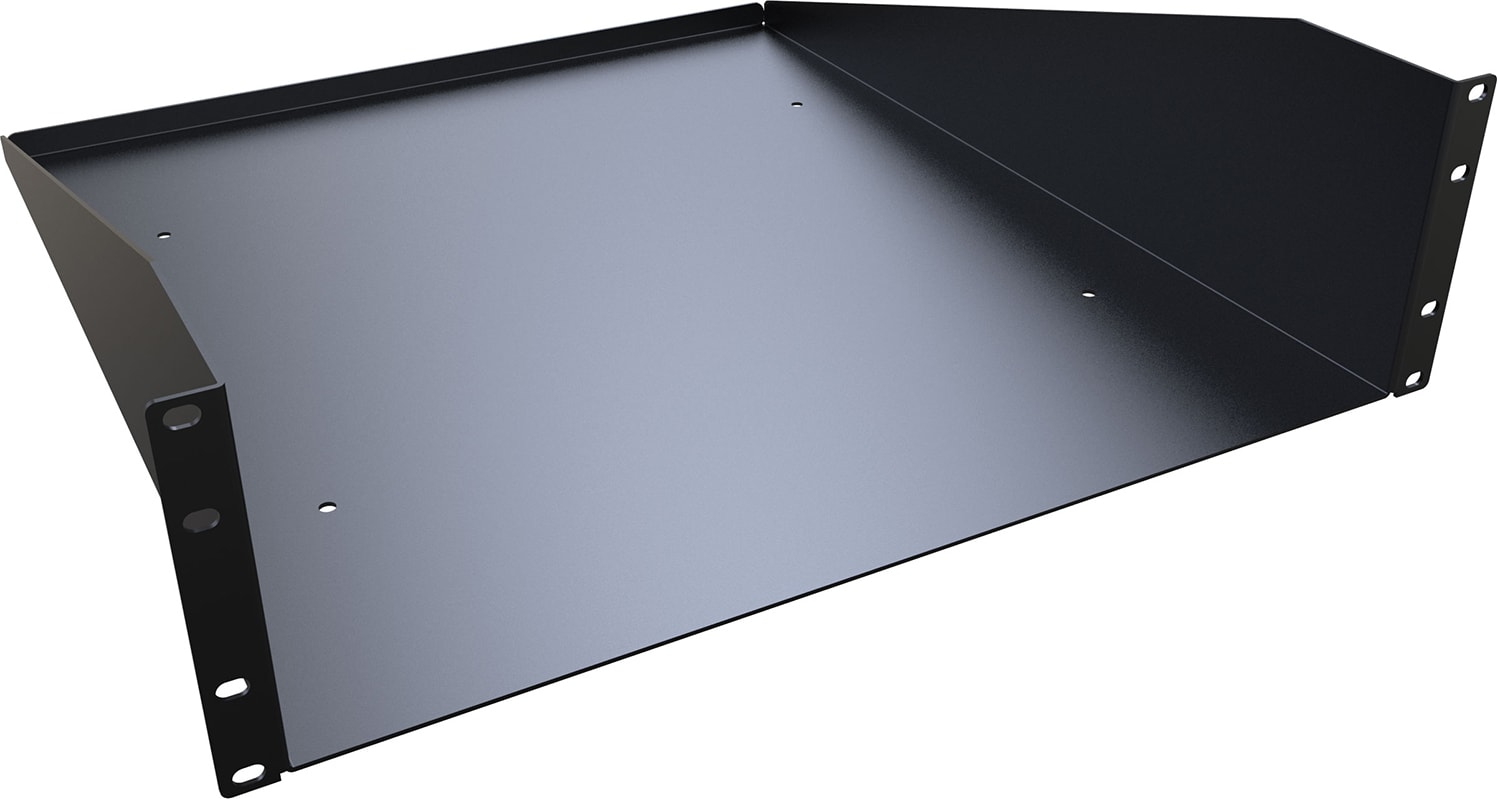

Hammond RASU190520BK1 Cantilever Solid Shelf

Name: Hammond RASU190520BK1 Cantilever Solid Shelf
Brand: Hammond
SKU: HammondRASU190520BK1
Price: 69.20 USD
Availability: InStock

0 reviews | UPC: 623980964928 | Model: Hammond RASU190520BK1

Compare

3U UNVENTED RACK MOUNT SHELF

3U universal rack shelf
Constructed of 14 gauge steel
Solid version
Universal design mounts to any standard EIA compliant rack or cabinet.
Allows easy rack mounting of equipment or items that do not have rack mounting capabilities.
Mounts to rack rails either as an internal shelf or external shelf/work area.
Rugged textured black powder paint finish.
TAA Compliant
RoHS and REACH compliant
Manufactured in North America

View Product Details

List Price: $94.00

Your Price: $69.20

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Hammond RASU190520BK1 3U UNVENTED RACK MOUNT SHELF	Hammond RASV190315BK1 2U VENT RACK MOUNT SHELF 15"D	Hammond RASV190520BK1 3U VENT RACK MOUNT SHELF 20"D	Hammond RASV190120BK1 1U VENT RACK MOUNT SHELF 20"D	Hammond RASV190107UBK1 RACK SHELF VENTD 16GA FLNGS UP	Hammond RASU190107UBK1 RACK SHELF SOLID 16GA FLNGS UP	Hammond RASU190120BK1 1U UNVENTED RACK MOUNT SHELF	Hammond RASV190515BK1 3U VENT RACK MOUNT SHELF 15"D	Hammond RASU190315BK1 2U UNVENTED RACK MOUNT SHELF	Hammond RASU190115BK1 1U UNVENTED RACK MOUNT SHELF	Hammond RASV190115BK1 1U VENT RACK MOUNT SHELF 15"D	Hammond RASV190320BK1 2U VENT RACK MOUNT SHELF 20"D	Hammond RASV190107DBK1 RACK SHELF VENTD 16GA FLNGS DN	Hammond RASU190320BK1 2U UNVENTED RACK MOUNT SHELF	Hammond RASU190515BK1 3U UNVENTED RACK MOUNT SHELF
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Hammond RASU190520BK1 Accessories

Choose a Category

Adapter Kits

for the Hammond RASU190520BK1

Cal Test CT4103 Universal Adapter Kit

Catalog: CT4103

(9)

In Stock!

Add to Cart

Hammond RASU190520BK1 Cantilever Solid Shelf - 3U, Solid, 20"D

Cantilever Solid Shelf

3U rack unit
Solid
200 lbs. weight capacity
Constructed of 14 gauge steel

The Hammond RASU190520BK1 is a 3U Universal Rack Shelf (Solid Version) constructed of 14 gauge steel. Its universal design mounts to any standard EIA compliant rack or cabinet. It allows easy rack mounting of equipment or items that do not have rack mounting capabilities. It mounts to rack rails either as an internal shelf or external shelf/work area.

The Hammond RAS Series is available in the rugged textured black powder paint finish. It is TAA, RoHS and REACH Compliant. Manufactured in North America.

Units shown: inch.

Part No.	Part No.	Mounting Dimension			Rack	Stiffener Lip(s)	Suggested
Vented	Solid (Un-Vented)	Height	Width	Depth	Units	Folded	Load Capacity
RASV190107UBK1	RASU190107UBK1	1.75	19.00	7.00	1U	Up (Front & Back)	16ga 42 lbs (19 kg)
RASV190107DBK1	RASU190107DBK1	1.75	19.00	7.00	1U	Down (Front & Back)	16ga 42 lbs (19 kg)
RASV190110BK1	RASU190110BK1	1.75	19.00	10.00	1U	Up (Back Only)	16ga 42 lbs (19 kg)
RASV190112BK1	RASU190112BK1	1.75	19.00	12.00	1U	Up (Back Only)	16ga 42 lbs (19 kg)
RASV190115BK1	RASU190115BK1	1.75	19.00	15.00	1U	Up (Back Only)	16ga 42 lbs (19 kg)
RASV190120BK1	RASU190120BK1	1.75	19.00	20.00	1U	Up (Back Only)	16ga 42 lbs (19 kg)

RASVL190314BK1	RASUL190314BK1	3.50	19.00	14.50	2U	Up (Back Only)	16ga 65 lbs (30 kg)
RASV190312BK1	RASU190312BK1	3.50	19.00	12.00	2U	Up (Back Only)	14ga 100 lbs (45 kg)
RASV190315BK1	RASU190315BK1	3.50	19.00	15.00	2U	Up (Back Only)	14ga 100 lbs (45 kg)
RASV190318BK1	RASU190318BK1	3.50	19.00	18.00	2U	Up (Back Only)	14ga 100 lbs (45 kg)
RSV190320BK1	RASU190320BK1	3.50	19.00	20.00	2U	Up (Back Only)	14ga 100 lbs (45 kg)

RASVL190514BK1	RASUL190514BK1	5.25	19.00	14.50	3U	Up (Back Only)	16ga 65 lbs (30 kg)
RASV190515BK1	RASU190515BK1	5.25	19.00	15.00	3U	Up (Back Only)	14ga 200 lbs (91 kg)
-	RASU190516BK1	5.25	19.00	16.00	3U	Up (Back Only)	14ga 200 lbs (91 kg)
-	RASU190518BK1	5.25	19.00	18.00	3U	Up (Back Only)	14ga 200 lbs (91 kg)
RASV190520BK1	RASU190520BK1	5.25	19.00	20.00	3U	Up (Back Only)	14ga 200 lbs (91 kg)
-	RASU190522BK1	5.25	19.00	22.00	3U	Up (Back Only)	14ga 200 lbs (91 kg)
-	RASU190524BK1	5.25	19.00	24.00	3U	Up (Back Only)	14ga 200 lbs (91 kg)

RASV190715BK1	RASU190715BK1	7.00	19.00	15.00	4U	Up (Back Only)	14ga 200 lbs (91 kg)
RASV190720BK1	RASU190720BK1	7.00	19.00	20.00	4U	Up (Back Only)	14ga 200 lbs (91 kg)

Tech Specs

Test Equipment General Attributes
Product Height	6.00 IN
Product Length	20.00 IN
Product Width	19.00 IN
Shipping Weight	20 LBS
Country of Origin	Canada
Shipping Height	6.00 IN
Shipping Length	20.00 IN
Shipping Width	19.00 IN

0

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Add to cart

Compare

Real people, here to help you.

Get Connected

Join the community and find out what we're up to, experience live product releases, webinars and more!

Model: RASU190520BK1 Specifications
Description	Universal Rack Shelf
Weight capacity	200 lbs (91 kg)
Rack Units	3U
Color	Black
TAA Compliant	Yes
RoHS and REACH compliant	Yes
