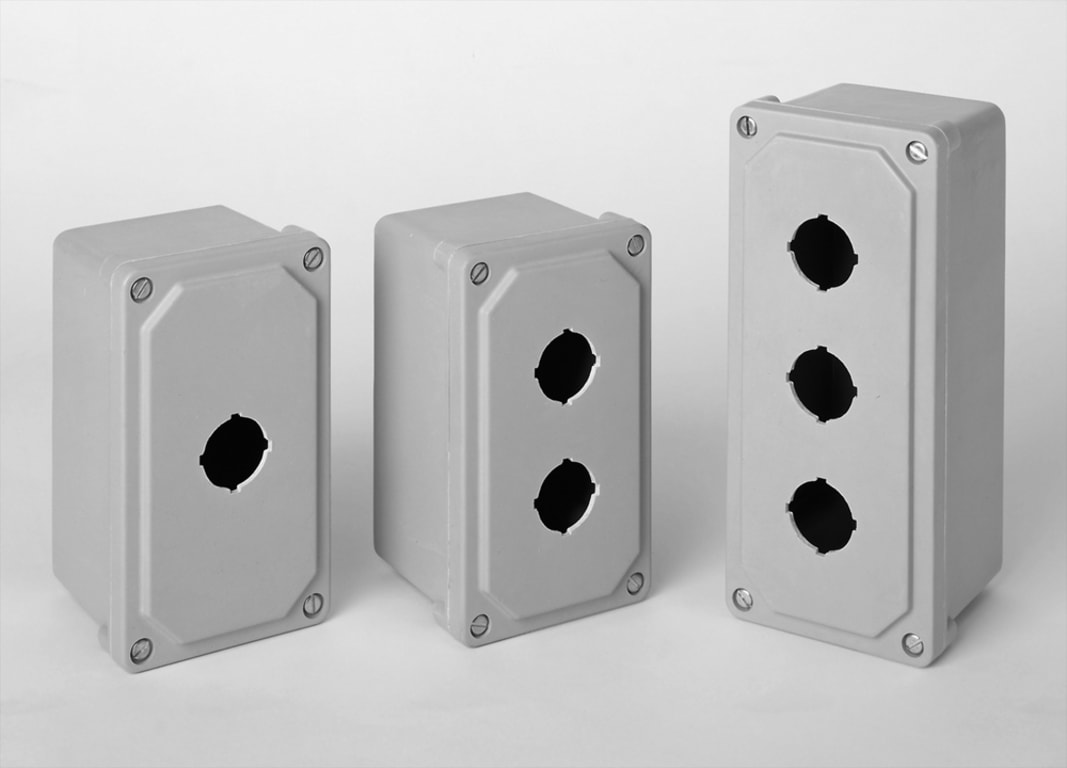

Type 4, 4X Polyester Pushbutton Enclosure
Application
- Designed for use as pushbutton enclosures for 22.5mm or 30.5mm devices.
- Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
- Ideal in applications with high temperatures or highly corrosive environments.
Construction
- Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled.
- Cover is fastened with captive stainless-steel screws in threaded brass inserts.
- Captive oil resistant gasket provides a positive seal.
- Mounting through rear holes on enclosure. Use #8 x 1 inch screw (not included).
- Enhanced UV inhibitors protect against outdoor weathering.
- Operating temperatures between 130°C and -40°C (266°F to -40°F).
- Impact index of 6.78J (5 ft/lb).
- For corrosion resistance information, please refer to table in Technical Information.
Finish
- Fiberglass polyester material has a gray finish.
- Optional aluminum inner panel natural finish.
| 30.5mm PB Part No. | 22.5mm PB Part No. | # of Holes | Enclosure (H) | Enclosure (W) | Enclosure (D) |
| PJ744P1 | PJ744P221 | 1 | 6.74in | 3.93in | 3.88in |
| PJ744P2 | PJ744P222 | 2 | 6.74in | 3.93in | 3.88in |
| PJ944P3 | PJ944P223 | 3 | 8.99in | 3.93in | 3.88in |
