Hammond PJP94 Inner Panel

• Designed for use as instrument enclosures, electric, hydraulic or pneu­matic control housings, electrical junction boxes or terminal wiring enclosures.
• Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
• Ideal in applications with high temperatures or highly corrosive environments.

Standards

• UL 508A Type 1, 2, 3, 4, 4X, 12 and 13
• CSA Type 1, 2, 3, 4, 4X, 12 and 13
• Complies with
  • NEMA Type 1, 2, 3, 4, 4X, 12 and 13
  • IEC 60529, IP66

Construction

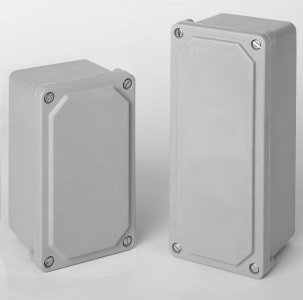

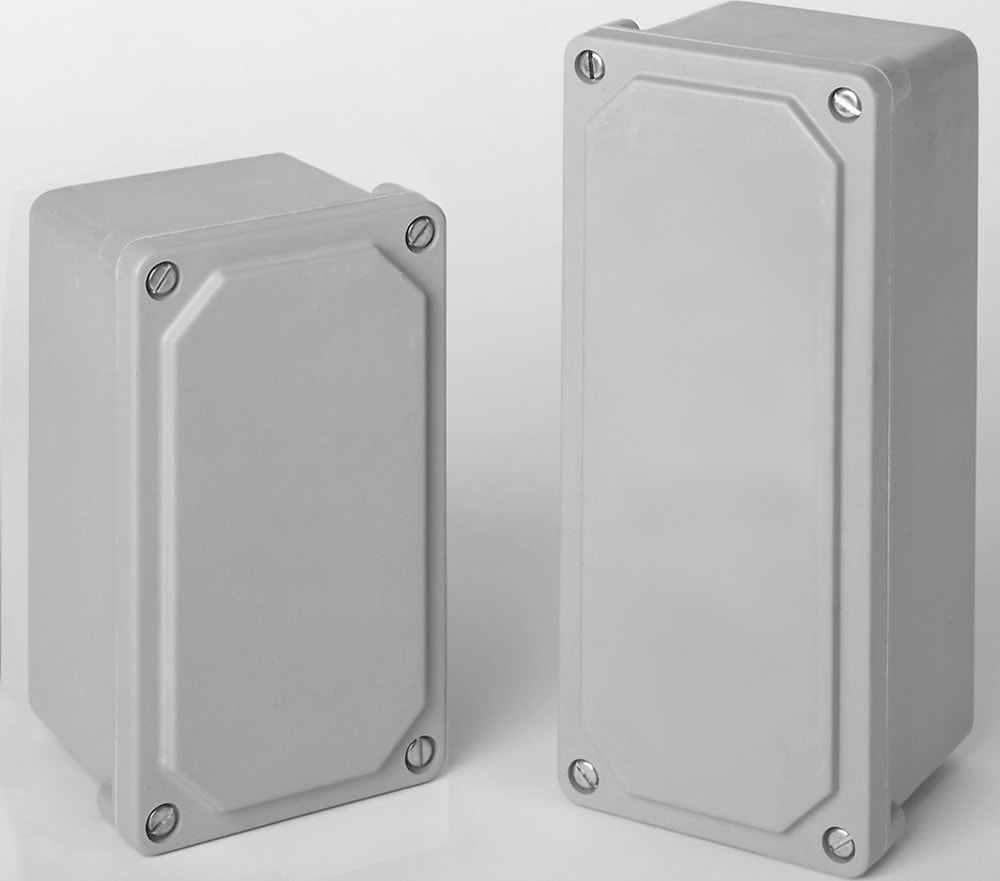

• Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled.
• Threaded brass inserts are provided for optional inner panel.
• Cover is fastened with captive stainless steel screws in threaded brass inserts.
• Captive oil resistant gasket provides a positive seal.
• Mounting through rear holes on enclosure. Use #8 x 1 inch screw (not included).
• Enhanced UV inhibitors protect against outdoor weathering.
• Aavailable with and without mounting feet.
• Operating temperatures between 130°C and -40°C (266°F to -40°F).
• Impact index of 6.78J (5 ft/lb).
• For corrosion resistance information, please refer to table in Technical Information.

Finish

• Fiberglass polyester material has a gray finish.
• Optional aluminum inner panel natural finish.
