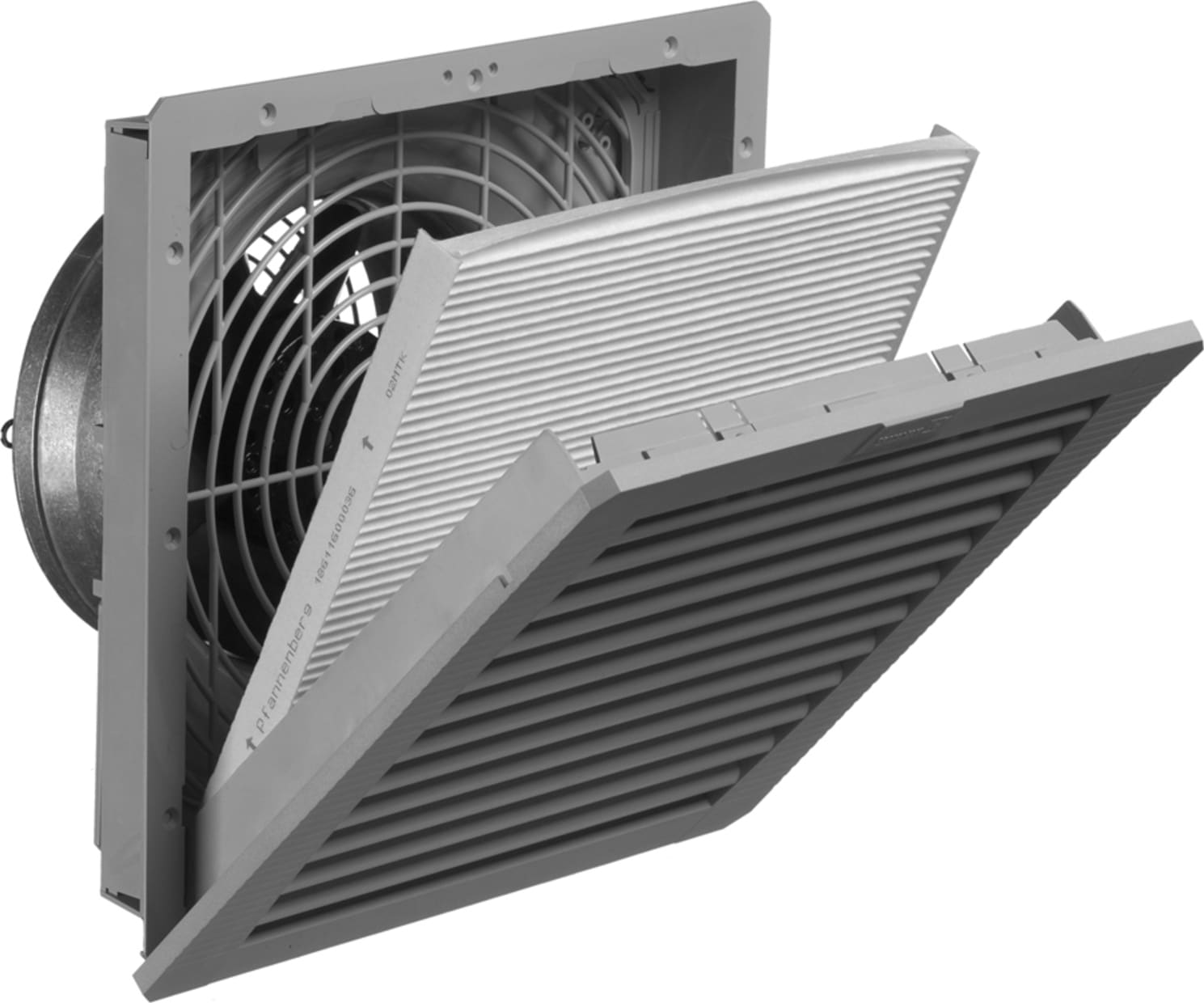

Hammond PF6700AT12LG - 560CFM Filter Fan, 115V N12 RF, Lt. Gray

Name: Hammond PF6700AT12LG - 560CFM Filter Fan, 115V N12 RF, Lt. Gray
Brand: Hammond
SKU: HammondPF6700AT12LG
Price: 616.43 USD
Availability: InStock

0 reviews | UPC: 623980016450 | Model: Hammond PF6700AT12LG

Compare

560CFM Filter Fan, 115V N12 RF - Lt. Gray

560CFM Filter Fan
115V N12 RF
Color: Lt. Gray

View Product Details

List Price: $803.83

Your Price: $616.43

Sign-in for GSA Pricing!

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Hammond PF6700AT12LG 560CFM Filter Fan, 115V N12 RF - Lt. Gray	Hammond PF67000T12BK230 560CFM Filter Fan, 230V N12 - Black
Price
In Stock
Compare	Add to compare	Add to compare

Recommended for you

Hammond PF6700AT12LG Accessories

Choose a Category

Adapter Kits

for the Hammond PF6700AT12LG

Cal Test CT4103 Universal Adapter Kit

Catalog: CT4103

(8)

In Stock!

Add to Cart

Hammond PF6700AT12LG - 560CFM Filter Fan, 115V N12 RF, Lt. Gray

560CFM Filter Fan
115V N12 RF
Color: Lt. Gray

Maintains a UL Tested NEMA Type 12 seal against enclosure. UL Recognized to UL 508A, category NITW2/8, UL File #E175229. Patented “Click & Fit” design provides a hardware free installation! Plastic made from strong, heat resistant (ABS-FR), UL 94 VO fire approved material. Fan Motor is CSA Approved. Options: Black Grills.

Airflow data	PF 65000	PF 66000	PF 67000	PFA 60000
Filter material	Type 12 Filtermat	Type 12 Filtermat	Type 12 Filtermat	Type 12 Filtermat
Unimpeded airflow	297 CFM	462 CFM	560 CFM	-
Capacity free-flow	IP 54: 160 W/K / 160 W/K	IP 54: 213 W/K / 218 W/K	IP 54: 282 W/K / 292 W/K	-
	IP 55: 168 W/K / 168 W/K	IP 55: 257 W/K / 262 W/K	IP 55: 308 W/K / 317 W/K	-
Airflow in combination	230 CFM	295 CFM	368 CFM	-
(Filterfan + Exhaust Filter)	(PF 65000 + PFA 60000)	(PF 66000 + PFA 60000)	(PF 67000 + PFA 60000)	-
Capacity in combination	127 W/K	167 W/K	208 W/K	-
(Filterfan + Exhaust Filter)	(PF 65000 + PFA 60000)	(PF 66000 + PFA 60000)	(PF 67000 + PFA 60000)	-
Max. static pressure (Airflow = 0)	74 Pa	134 Pa	187 Pa	-
Filtration efficiency	0.91	0.91	0.91	0.91
Filter material grade	G 4 (DIN EN 779)	G 4 (DIN EN 779)	G 4 (DIN EN 779)	G 4 (DIN EN 779)
Duty cycle	1	1	1	-

Technical data	PF 65000	PF 66000	PF 67000	PFA 60000
Outside dimensions in mm	320 x 320 x 150	320 x 320 x 150	320 x 320 x 150	320 x 320 x 39
(height x width x installation depth)
Bearing type	ball bearings	ball bearings	ball bearings	-
Fitting position	any, horizontal airflow preferred		any	-
Construction	housing and guard of sprayed thermoplastic, self-extinguishing, UL 94 VO
Weight	3.2 kg	3.2 kg	3.7 kg	0.7 kg
Safety protection	in accordance with DIN 31 001			-
Color	RAL 7035, Light Grey
Connections	cage clamp	cage clamp	cage clamp	-

Supplementary data	PF 65000	PF 66000	PF 67000
Operating temperature	– 15 °C (- 5 °F) to / bis + 55 °C (+ 131 °F)
Storage temperature	– 20 °C (- 4 °F) to / bis + 70 °C (+ 158 °F)
Max. relative humidity	0.9
System of protection	NEMA Type 12, IP 55 (EN 60 529), when installed as specified
Basic Accessories	parts kit filter mat, user manual radiant heater, fan heater, thermostat, hygrostat
Approvals	UL Recognized
* Tolerance installation cutout	291 + 1/-0 thickness of material to 2 mm
	292 + 1/-0 thickness of material > 2 mm < 3 mm
