Hammond HP400PCGY Hole Plug - 4" Conduit - Polycarbonate Gray

Name: Hammond HP400PCGY Hole Plug - 4" Conduit - Polycarbonate Gray
Brand: Hammond
SKU: HammondHP400PCGY
Price: 51.36 USD
Availability: InStock

0 reviews | UPC: 623980101811 | Model: Hammond HP400PCGY

Compare

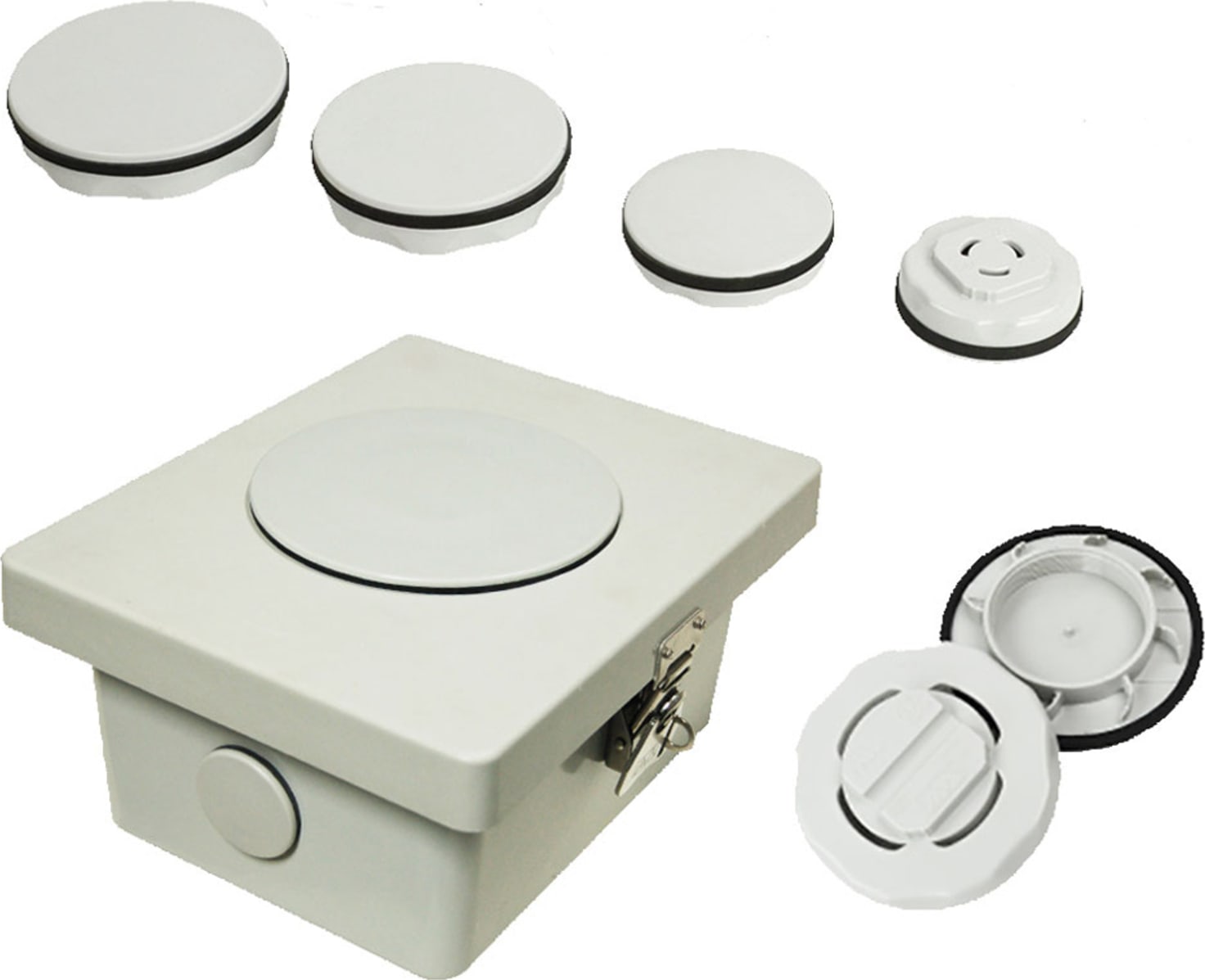

Hole Plug (UR/CSA) - 4" Conduit - Polycarbonate/Gray

4" Conduit (4.641)
Plugged Hole Diameter Range: 4.50 - 4.75
Wall Thickness Range: 0.06 - 0.25
External Diameter: 5.12
Color: ANSI 61 Polycarbonate Gray
Designed to seal unused pushbutton holes, conduit openings and knockout holes against dust, oil and water.
Standard Pushbutton size is 30.5mm
Compatible with enclosure wall thickness from 16 gauge to 1/4”
Self centering, anti-rotational design for fast and easy one person installation, no tools required
Recognized component for use with UL & CSA listed enclosures
Type 1, 3, 3R, 4, 4X
Molded in polycarbonate with neoprene/EPDM gasket material

View Product Details

Your Price: $51.36

In Stock:

View Payment Options

Request Quote

Items in This Series


Product	Hammond HP400PCGY Hole Plug (UR/CSA) - 4" Conduit - Polycarbonate/Gray	Hammond HP100PCGY Hole Plug (UR/CSA) - 1 inch Conduit - Polycarbonate/Gray	Hammond HP100PCLG Hole Plug (UR/CSA) - 1 inch Conduit - Polycarbonate/Lt Gray	Hammond HP200PCGY Hole Plug (UR/CSA) - 2" Conduit - Polycarbonate/Gray	Hammond HP50PCGY Hole Plug (UR/CSA) - .5 inch Conduit/22mm - Polycarbonate/Gray	Hammond HP50PCLG Hole Plug (UR/CSA) - .5 inch Conduit/22mm - Polycarbonate/Lt Gray	Hammond HP75PCGY Hole Plug (UR/CSA) - .75 inch Conduit/30mm - Polycarbonate/Gray	Hammond HP75PCLG Hole Plug (UR/CSA) - .75 inch Conduit/30mm - Polycarbonate/Lt Gray	Hammond HP75SS Hole Plug - .75 inch Conduit - 304 SS	Hammond HP400PCLG Hole Plug (UR/CSA) - 4" Conduit - Polycarbonate/Lt Gray	Hammond HP350PCLG Hole Plug (UR/CSA) - 3.5" Conduit - Polycarbonate/Lt Gray	Hammond HP350PCGY Hole Plug (UR/CSA) - 3.5" Conduit - Polycarbonate/Gray	Hammond HP300PCLG Hole Plug (UR/CSA) - 3" Conduit - Polycarbonate/Lt Gray	Hammond HP300PCGY Hole Plug (UR/CSA) - 3" Conduit - Polycarbonate/Gray	Hammond HP250PCLG Hole Plug (UR/CSA) - 2.5" Conduit - Polycarbonate/Lt Gray	Hammond HP250PCGY Hole Plug (UR/CSA) - 2.5" Conduit - Polycarbonate/Gray	Hammond HP200PCLG Hole Plug (UR/CSA) - 2" Conduit - Polycarbonate/Lt Gray
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Hammond HP400PCGY Hole Plug - 4" Conduit - Polycarbonate Gray

Hole Plugs HPN4PC Series

4" Conduit (4.641)
Plugged Hole Diameter Range: 4.50 - 4.75
Wall Thickness Range: 0.06 - 0.25
External Diameter: 5.12
Color: ANSI 61 Polycarbonate Gray

The Hammond HP400PCGY is a Hole Plug with 4" conduit designed to seal unused pushbutton holes, conduit openings and knockout holes against dust, oil and water. It has a standard pushbutton size of 30.5mm. It features a self centering, anti-rotational design for fast and easy one person installation, no tools required. It is compatible with enclosure wall thickness from 16 gauge to 1/4".

The HP400PCGY is finished in ANSI 61 Gray (GY) color and is molded in polycarbonate with neoprene/EPDM gasket material. It is a recognized component for use with UL & CSA listed enclosures (Type 1, 3, 3R, 4, 4X).

Model: HP400PCGY Specifications
Description	Hole Plug - 4" Conduit
Plugged Hole Diameter Range	4.50 - 4.75
Wall Thickness Range	0.06 - 0.25
External Diameter	5.12
Color	ANSI Polycarbonate Gray
Shipping Weight	0.4 lbs (0.18 kg)
UNSPSC	39121302
UPC	623980101811
REACH Compliant	Yes
RoHS Compliant	Yes
