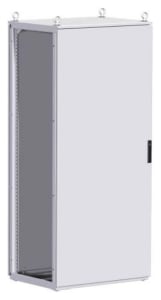

Hammond HME2045 Type 12 Mild Steel Modular Freestanding Enclosure, HME

Name: Hammond HME2045 Type 12 Mild Steel Modular Freestanding Enclosure, HME
Brand: Hammond
SKU: HammondHME2045
Price: 1060.70 USD
Availability: InStock

0 reviews | UPC: 062398005208 | Model: Hammond HME2045

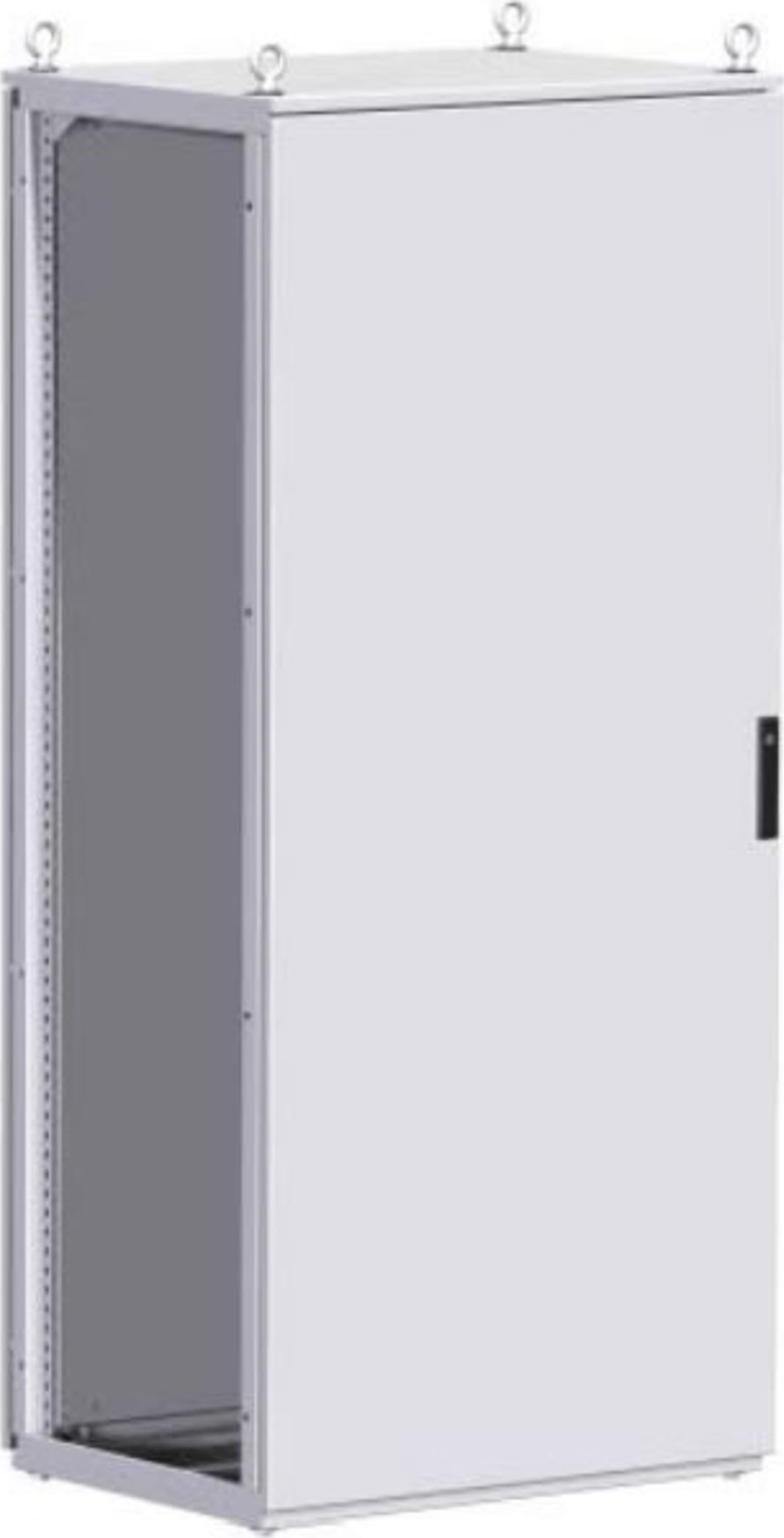

Hammond Type 12 Mild Steel Modular Freestanding Enclosure, HME

Compare

Modular Single Door Encl - 2000 x 400 x 500 - Steel/Lt Gray

Cannot Ship Air

Formed 14 gauge steel
Fully welded frame with 25mm hole pattern for superior mounting flexibility
Seamless foam in place gasket
Reinforced eyebolts are provided for easy enclosure lifting
Frames can be joined together with an optional joining kit
Doors can be easily interchanged, removed and/or reversed
Door opening 135°
Optional formed 14 gauge steel side panels are sold separately (in pairs)
Bonding and grounding studs are provided for all doors and panels

View Product Details

List Price: $1,319.80

In Stock:

View Payment Options

Recommended for you

Hammond HME2045 Type 12 Mild Steel Modular Freestanding Enclosure, HME

Standards

UL 508A Type 12
CSA Type 12
Complies with:
- NEMA Type 12
- IEC 60529 IP54

Application

The HME product line provides users with a rugged housing for industrial control and operator interface in industrial environments
Modular design permits joining of units together for large scale and mixed use applications
Frame's 25mm hole pattern provides extensive component and accessory mounting flexibility
A broad range of industry standard sizes are offered

Configuration

Frame
Removable solid top panel
Lifting eyebolts (4)
Removable bottom panel w/gland plates
Solid front door with door frame
Removable rear cover panel
Inner mounting panel

Construction

Formed 14 gauge steel
Fully welded frame with 25mm hole pattern for superior mounting flexibility
Seamless foam in place gasket
Reinforced eyebolts are provided for easy enclosure lifting
Frames can be joined together with an optional joining kit
Doors can be easily interchanged, removed and/or reversed
Door opening 135°
Optional formed 14 gauge steel side panels are sold separately (in pairs)
Bonding and grounding studs are provided for all doors and panels

Finish

Phosphatized and finished in RAL 7035 light gray powder coating
Inner panel is unpainted galvanized 12 gauge steel

Units shown: inch

Part No.	Overall Dimensions			Panel Dimensions
Part No.	A	B	C	D	E
HME1465	55.12	23.62	19.69	51.02	19.65
HME1466	55.12	23.62	23.62	51.02	19.65
HME1468	55.12	23.62	31.50	51.02	19.65
HME1485	55.12	31.50	19.69	51.02	27.52
HME1486	55.12	31.50	23.62	51.02	27.52
HME1488	55.12	31.50	31.50	51.02	27.52
HME1665	62.99	23.62	19.69	58.90	19.65
HME1666	62.99	23.62	23.62	58.90	19.65
HME1668	62.99	23.62	31.50	58.90	19.65
HME1685	62.99	31.50	19.69	58.90	27.52
HME1686	62.99	31.50	23.62	58.90	27.52
HME1688	62.99	31.50	31.50	58.90	27.52
HME1864	70.87	23.62	15.75	66.77	19.65
HME1865	70.87	23.62	19.69	66.77	19.65
HME1866	70.87	23.62	23.62	66.77	19.65
HME1868	70.87	23.62	31.50	66.77	19.65
HME1884	70.87	31.50	15.75	66.77	27.52
HME1885	70.87	31.50	19.69	66.77	27.52
HME1886	70.87	31.50	23.62	66.77	27.52
HME1888	70.87	31.50	31.50	66.77	27.52
HME18104	70.87	39.37	15.75	66.77	35.39
HME18105	70.87	39.37	19.69	66.77	35.39
HME18106	70.87	39.37	23.62	66.77	35.39
HME18108	70.87	39.37	31.50	66.77	35.39
HME2045	78.74	15.75	19.69	74.65	11.77
HME2064	78.74	23.62	15.75	74.65	19.65
HME2065	78.74	23.62	19.69	74.65	19.65
HME2066	78.74	23.62	23.62	74.65	19.65
HME2068	78.74	23.62	31.50	74.65	19.65
HME2084	78.74	31.50	15.75	74.65	27.52
HME2085	78.74	31.50	19.69	74.65	27.52
HME2086	78.74	31.50	23.62	74.65	27.52
HME2088	78.74	31.50	31.50	74.65	27.52
HME20105	78.74	39.37	19.69	74.65	35.39
HME20106	78.74	39.37	23.62	74.65	35.39
HME20108	78.74	39.37	31.50	74.65	35.39
HME2246	86.61	15.75	23.62	82.52	11.77
HME2265	86.61	23.62	19.69	82.52	19.65
HME2266	86.61	23.62	23.62	82.52	19.65
HME2285	86.61	31.50	19.69	82.52	27.52
HME2286	86.61	31.50	23.62	82.52	27.52
HME2288	86.61	31.50	31.50	82.52	27.52
HME22105	86.61	39.37	19.69	82.52	35.39
HME22106	86.61	39.37	23.62	82.52	35.39

Tech Specs

Test Equipment General Attributes
Product Height	79.00 IN
Product Length	20.00 IN
Product Width	16.00 IN
Country of Origin	Canada
Shipping Height	79.00 IN
Shipping Length	20.00 IN
Shipping Width	16.00 IN
